Swift Group 2011 - Page 51

Connecting services
47

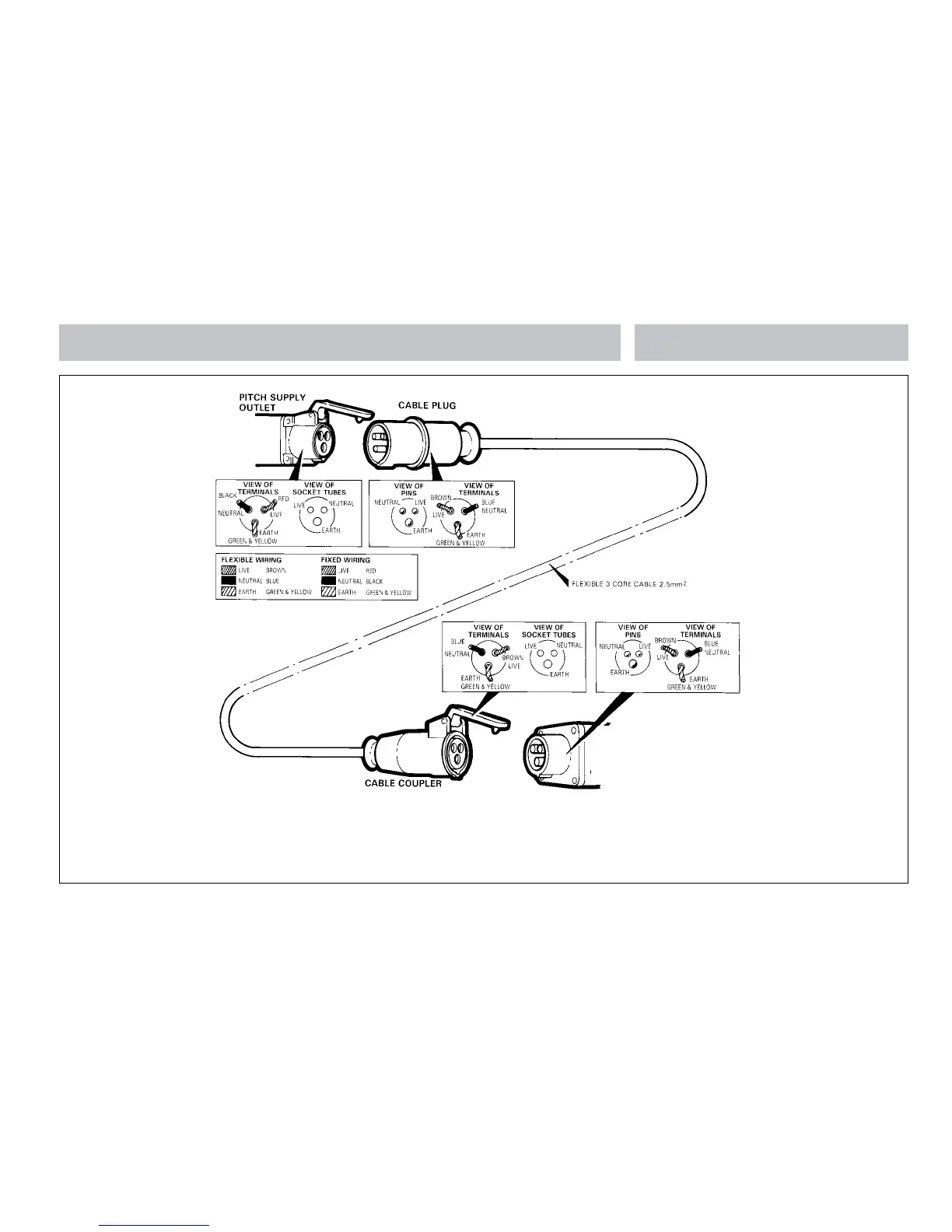

MOTORHOME MAINS INLET
Warning
It is essential that connections are made exactly as shown. If terminal markings are not in accordance With the diagram they must be ignored. If in doubt consult a qualified electrician.
The legal length of the mains inlet cable is 25 ± 2 metres. When in use it must be fully uncoiled and protected from traffic.
