SWM Superdual E4 2017 - Page 115

8
10
9
11
12
14
13B
13A
13
EN
EN - 49

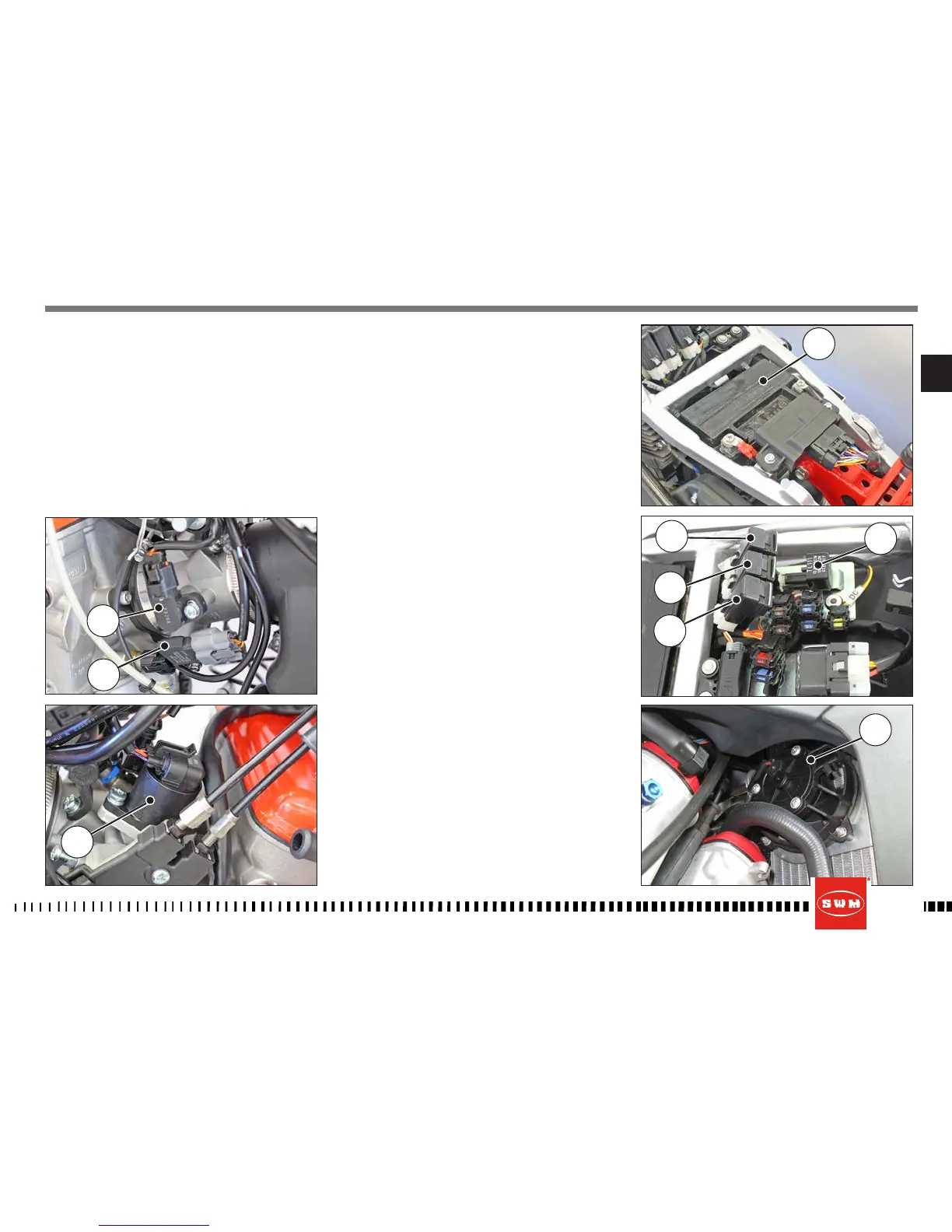

- Pressure and air temperature sensor (8) on the
throttle body.
- TPS sensor (9) on the throttle body;
- Stepper motor (10) on the throttle body.
The electrical system includes the following ele-
ments:
- 12V-14Ah Battery (11) under the saddle;
- Turning indicators flasher (12) located on the utili-
ties holder plate, under the saddle;
- Relays located on the utilities holder plate, under
the saddle;
- Electric fan relay (13);
- Injector, lambda sensor, fuel pump, coil relay
(13A);
- Turning indicators, stop lights, low and high
beam lights relay (13B);
- Electric fan (14);
