EN - 6

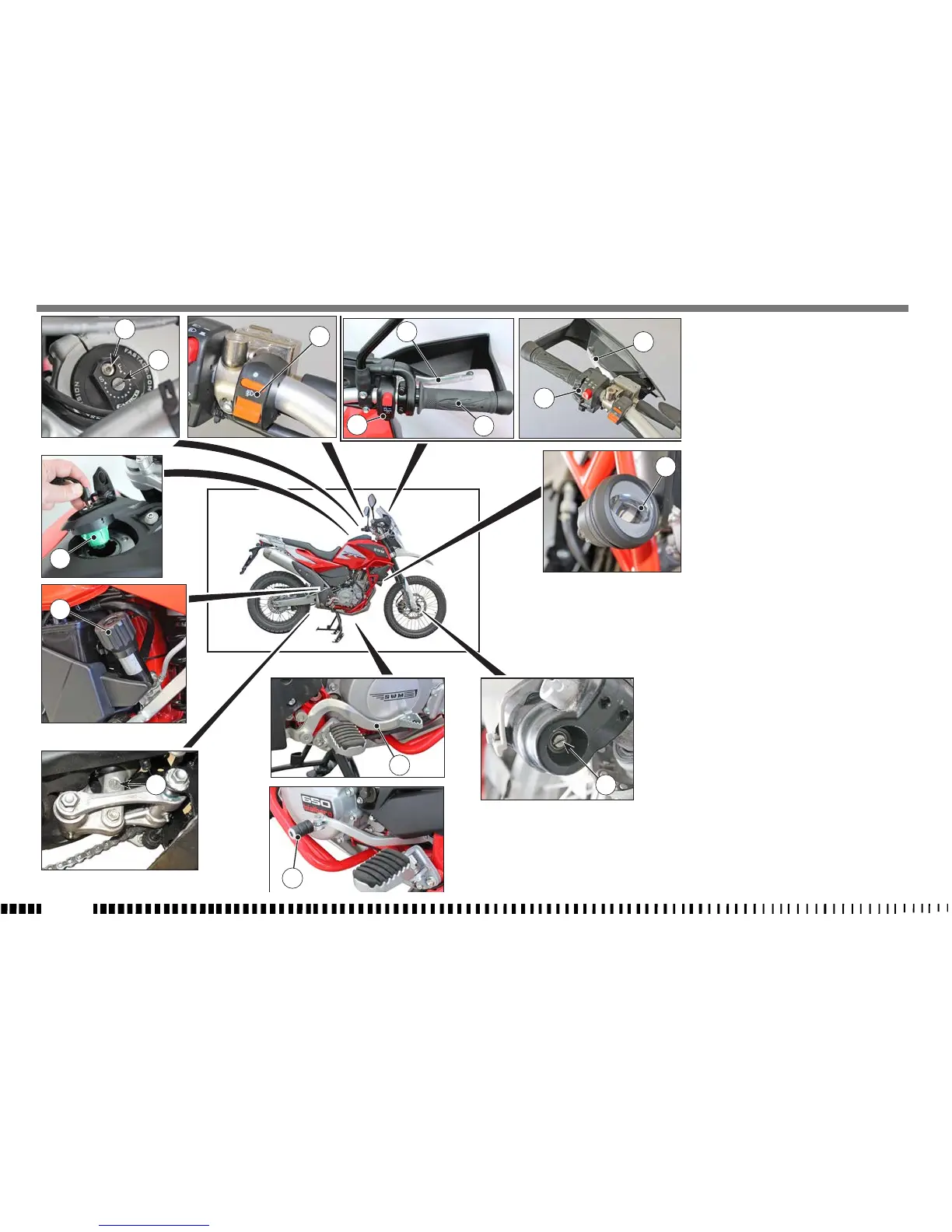

CONTROLS LOCATION
1. Front brake control lever
2. Throttle twistgrip
3. Rear brake control pedal
4. Fuel tank ller cap
5. R.H. switch (engine electric starting)
6. Rear shock absorber spring preload
adjuster
7. Depth spot light switch
8. Rear shock absorber rebound adjuster
9. L.H. switch
10. Clutch control lever
11. Gear shift control pedal
12. Air bleeding screw on front fork leg
13. Fork leg rebound adjuster
14. Compression damper adjustment
(front fork leg bottom side).
15. Depth spot lights.
KEYS
Two keys are supplied with the motorcycle
(one of them is a spare key) to be used:
a) on ignition switch-steering lock;
b) on fuel tank cap;
c) on saddle lock.
