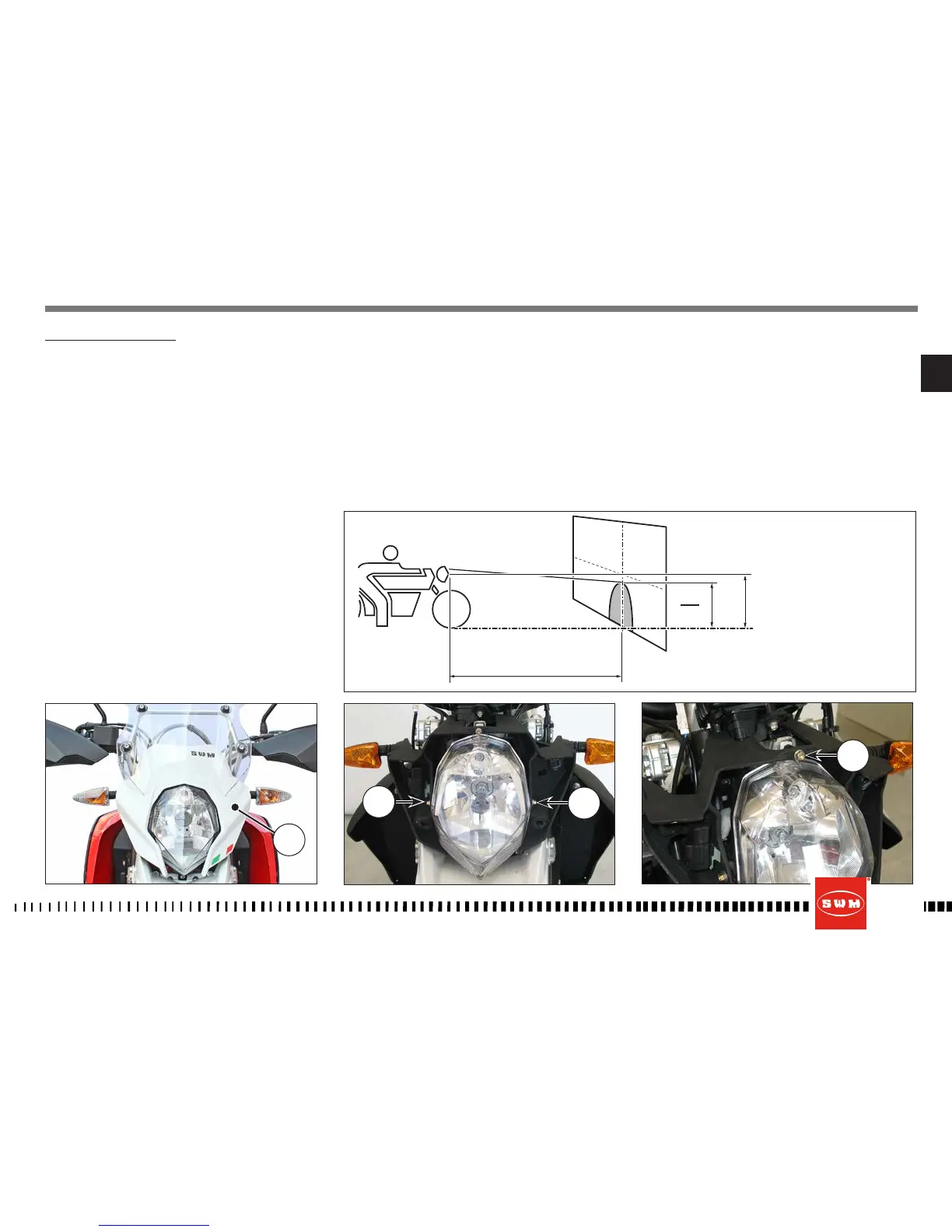

HEADLIGHT ADJUSTMENT
When checking the proper aiming of the headlight
beam: inflate tyres at the right pressure, have a
person sit astride the motorcycle and set the mo-
torcycle perpendicular to its longitudinal axis
at 33 ft from a wall or screen. Then trace a hori-
zontal line at the height of headlight centre and a
vertical one, in line with vehicle longitudinal axis.
If possible, execute this operation in a shaded place.
When the low beam is on, the upper edge between
dark and lit zone should be at 9/10th of headlight
centre from ground.
Beam height can be adjusted as follows:
- pull out the front fairing (1) to remove it;
- loosen the two screws (2);
- work adjuster screw (3);
tighten to lower the beam,
loosen to raise the beam.
Once set, reverse the above procedure to reassem-
ble.
