EN - 30

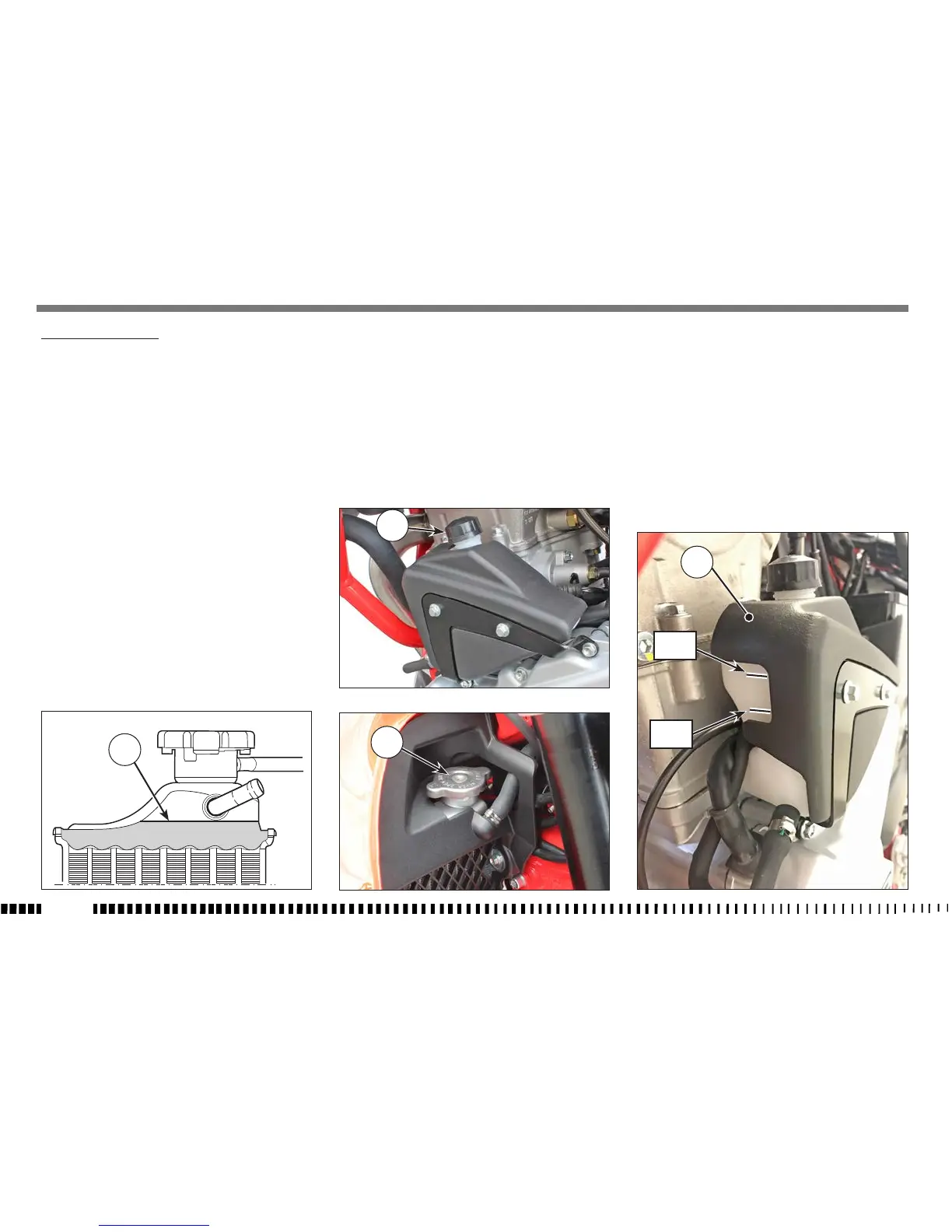

COOLANT LEVEL CHECK
Check level (1) in right-hand radiator when engine is
cold (place the motorbike fully upright). The coolant
must be 10 mm above the elements.
The coolant must always be present in the expan-
sion tank (2); its level must be between the MIN and
MAX marks indicated in the figure.
The radiator cap (3) is provided with two locking
positions: the first one is for prior discharge of pres-
sure in the cooling system.
CAUTION*:
Avoid removing radiator cap (3) when engine
is hot, as coolant may spout out and cause
scalding.
Note*:
Difficulties may arise in eliminating coolant from
painted surfaces. If this occurs, wash off with wa-
ter.
