SWM Superdual E4 2017 - FLUID LEVEL CHECKS; Engine Oil Level and Replacement

3
4
5
5a
2
1
MAX
MIN
EN - 28

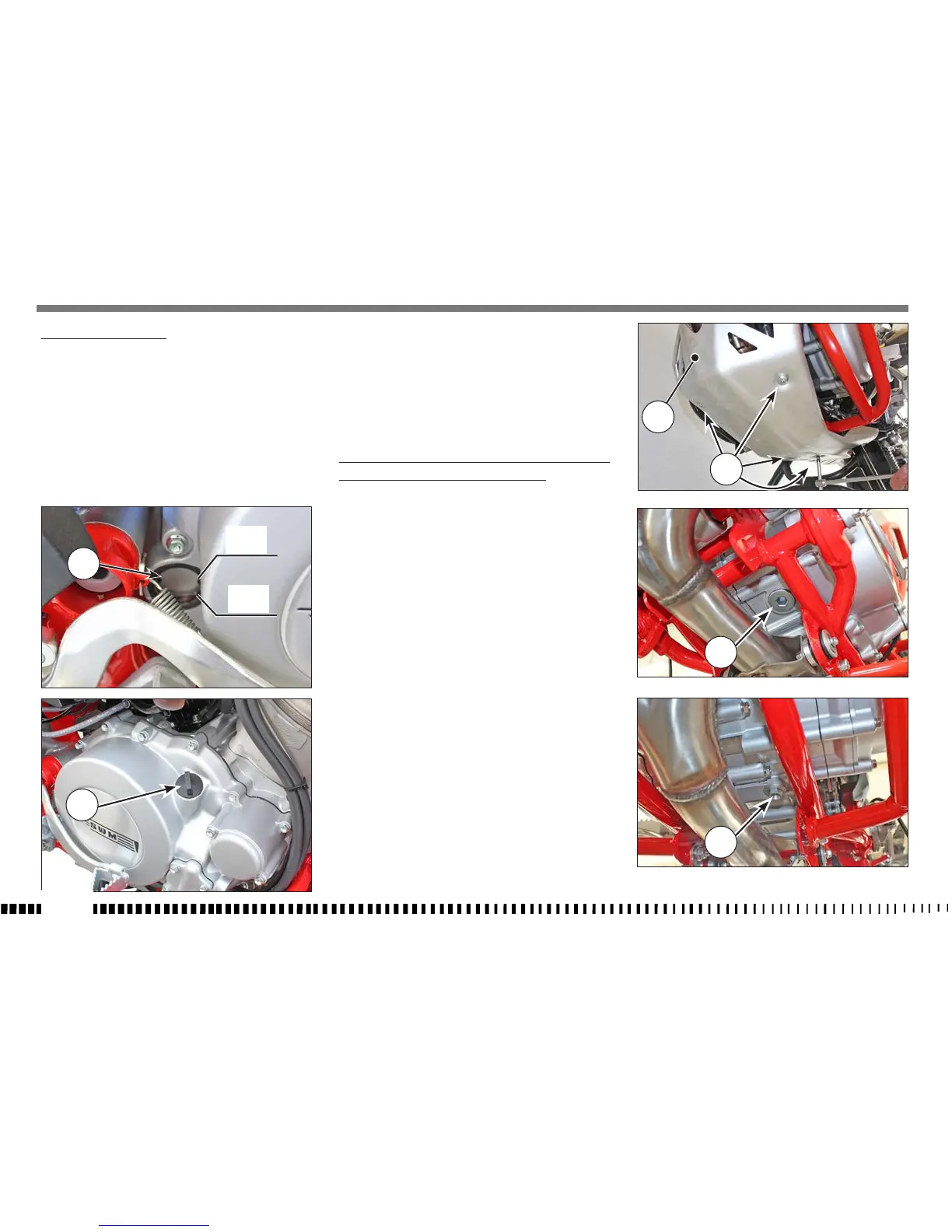

CHECKING THE OIL LEVEL
Keeping the motorbike level and in a vertical position,
check the oil level through the inspection (1) window on
the right crankcase. Make sure the level is in between
the MIN and MAX notches.
To top up, remove the filler cap (2).
Note*: Have this operation made with warm en-
gine.
WARNING*: Be careful not to touch hot engine oil.
ENGINE OIL REPLACEMENT AND MESH FILTERS-FILTER
CARTRIDGE CLEANING OR REPLACEMENT
WARNING*: Be careful not to touch hot engine
oil.
Drain the oil with WARM ENGINE; proceed as follows:
• Position the motorcycle on the central stand;
• undo the four screws (3) and remove the engine
guard (4);
• remove oil filler cap (2);
• place an oil drain pan under the engine block;
• remove the oil drain plugs (5) and (5a);
• drain the used oil completely then clean the mag-
net on the cap (5);
