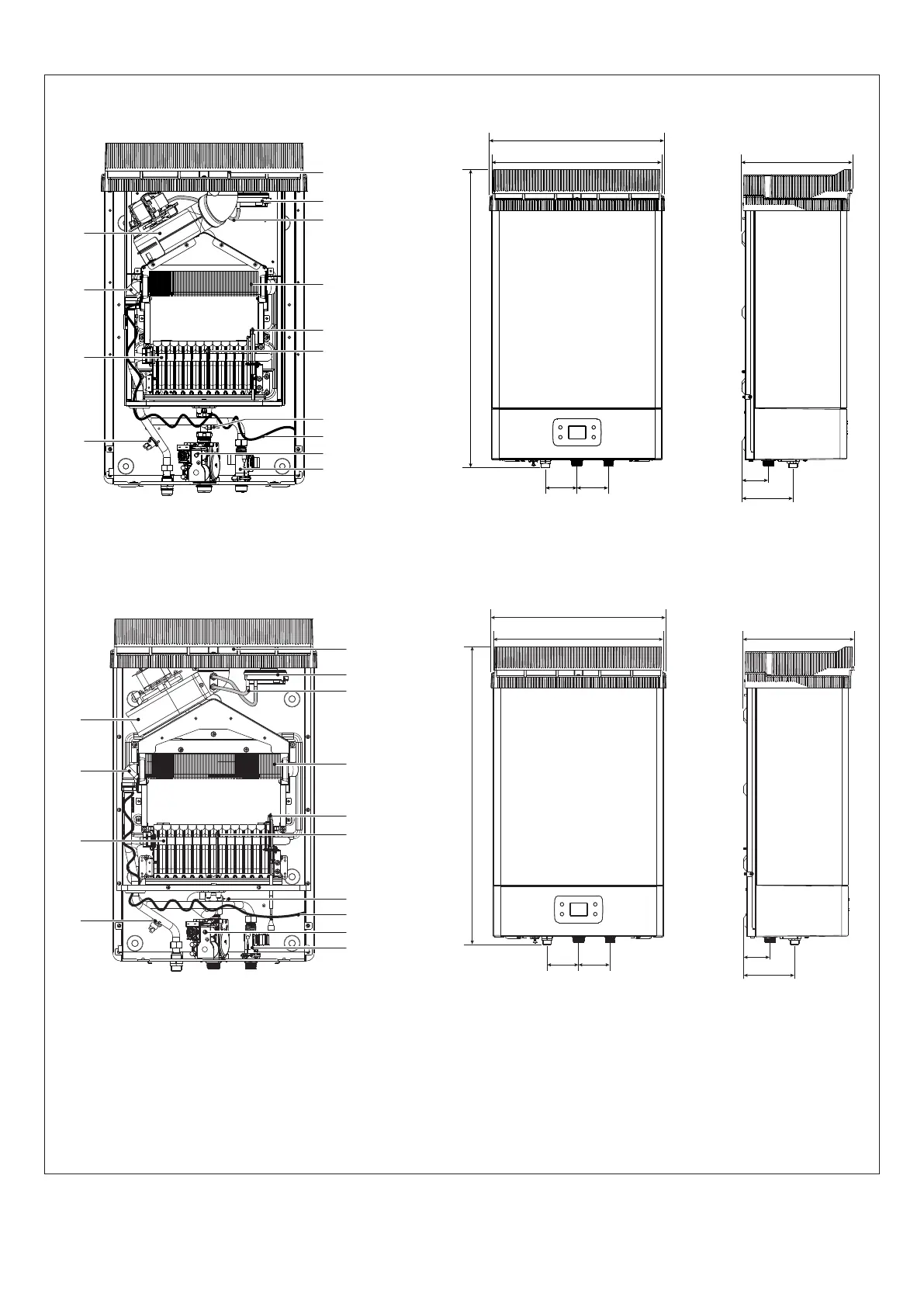

2.1.2 Models for outdoor installation
Models 11-13
400 260
408
699
62
120
74 74
11
12
13
14
10
9
8
7
6
5
1
2
3
4
Models 17
400 260
408
699
62
120
74 74
11
12
13
14
10
9
8
7
6
5
1
2
3
4
1 Maximum temperature thermostat
2 Burner
3 NTC probe
4 Fan
5 Exhaust ue duct
6 Air pressure switch
7 Pressure/depression
8 Exchanger
9 Ignition/detection electrode
10 Burner thermostat
11 Anti-freeze thermostat
12 Heating wire resistor
13 Gas valve
14 Water ow switch
Fig. 2
