14. REAR WHEEL/SUSPENSION
14-3
Rear Wheel

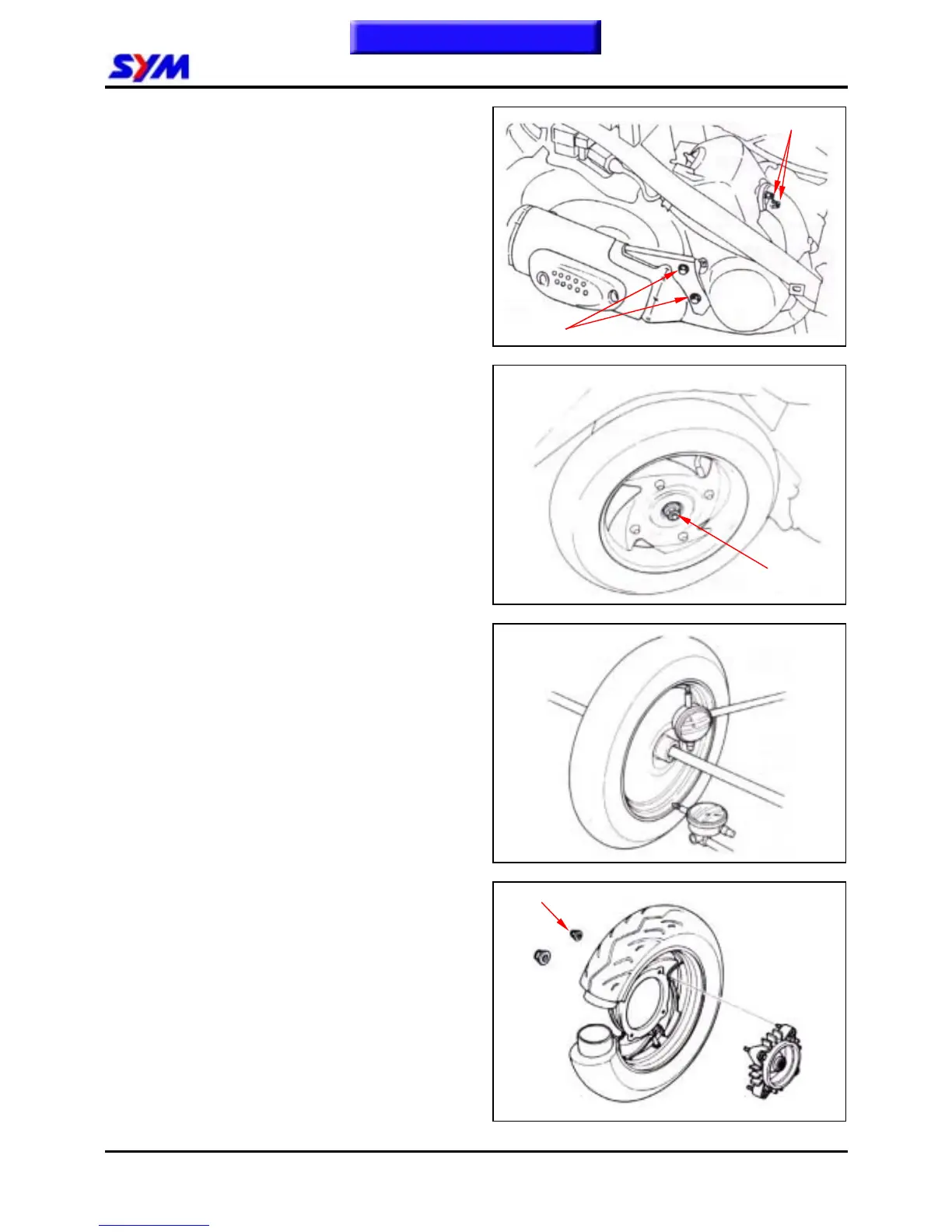

Remove
Remove exhaust pipe nut. (2 connection nuts)
Remove exhaust muffler bolt (2 bolts), then
remove the muffler.
Remove rear wheel shaft nut and then remove
the rear wheel.
Inspection
As the diagram shown, measure wheel rim
wobbling with a dial gauge.
Service limit:
Radial: 2.0 mm (0.08 in)
Axial: 2.0 mm (0.08 in)
Brake Hub Replacement
Remove 4 nuts of cover and wheel rim, and then
remove the wheel hub.
Install the wheel hub and tighten the nuts.
Tighten torque: 2.5kgf-m
Bolts
Connection nuts
Shaft nut
