14. REAR WHEEL/SUSPENSION
14-4

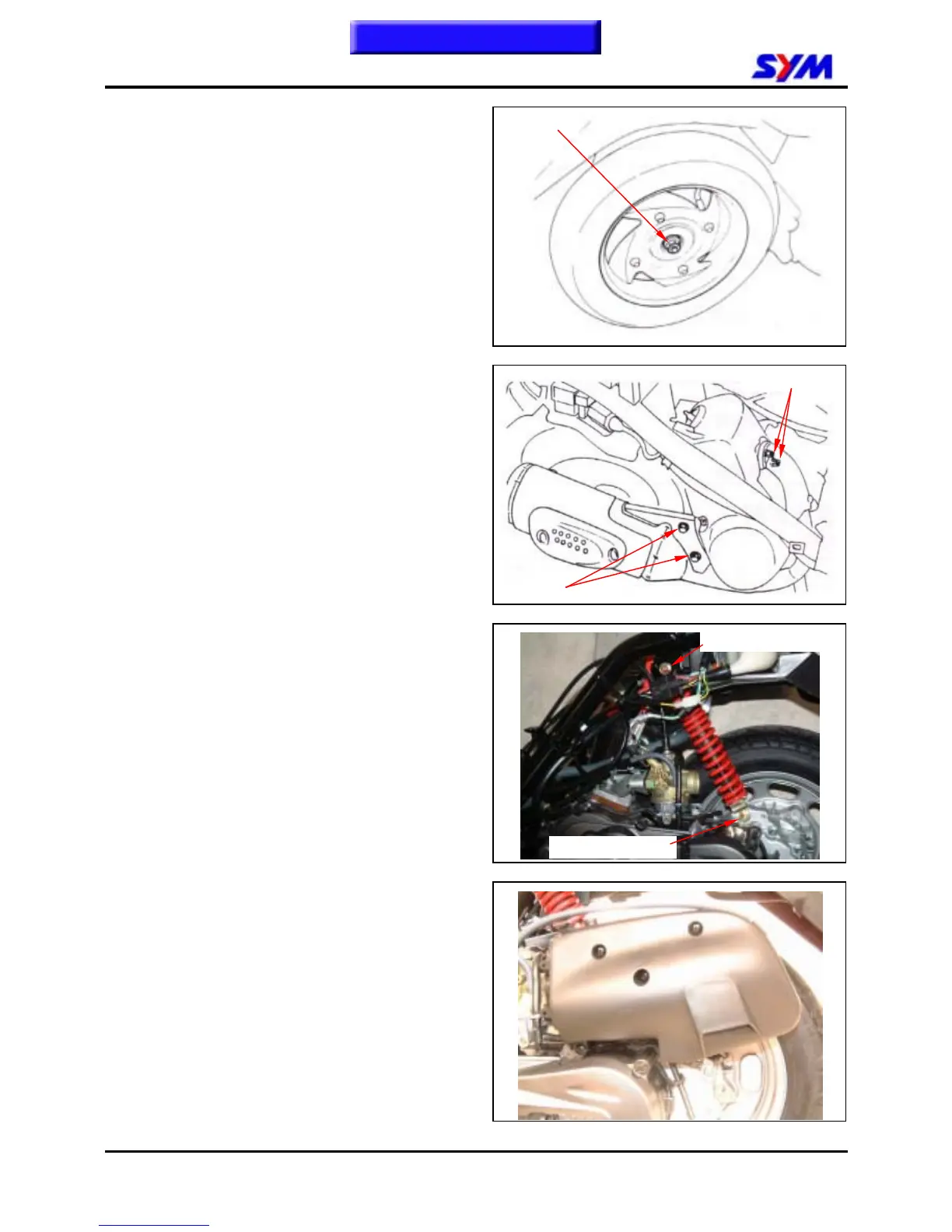

Installation
Install the rear wheel and tighten the nut.
Tighten torque: 11.0kgf-m
Install exhaust pipe & muffler.
Tighten torque (bolt): 3.3kgf-m
Tighten torque (nut): 1.2kgf-m
Rear Shock Absorber
Removal
Remove body cover.
Remove air cleaner.
Remove rear shock absorber upper & lower
bolts.
Remove rear shock absorber.
Installation
Install the rear shock absorber.
Tighten the upper & lower mounting bolts to
specified torque.
Torque value:
Upper mounting bolt: 4.0kgf-m
Lower mounting bolt: 2.7kgf-m
Press down the tail of the scooter for several
times to check shock absorber operation.
Installation all components in reverse order of
removal procedures.
Install air cleaner.
Upper mounting bolt
Shaft nut
Bolts
Connection nuts
