6. ALTERNATOR
6-3

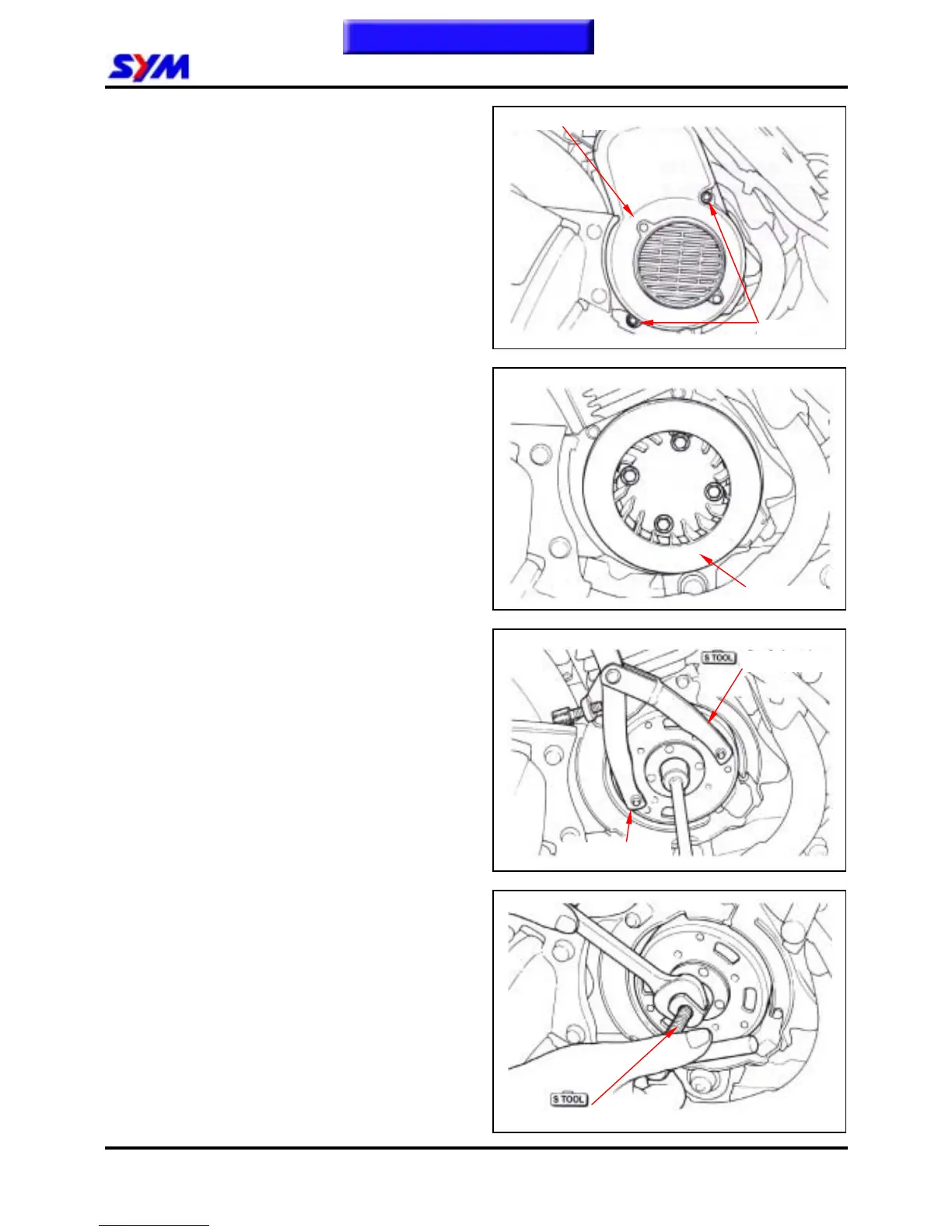

Alternator Removal
Remove the body cover.
Remove two bolts and then take out cooling fan
cover.
Remove four bolts, and then take out the cooling
fan.
Hold flywheel with universal holder.
Support the flywheel and the remove the 10 mm
nut on the flywheel.
Remove the flywheel with rotor puller.
Cooling fan cover
Universal holder
Rotor puller
Cooling fan
Bolt
10mm flanged nut
