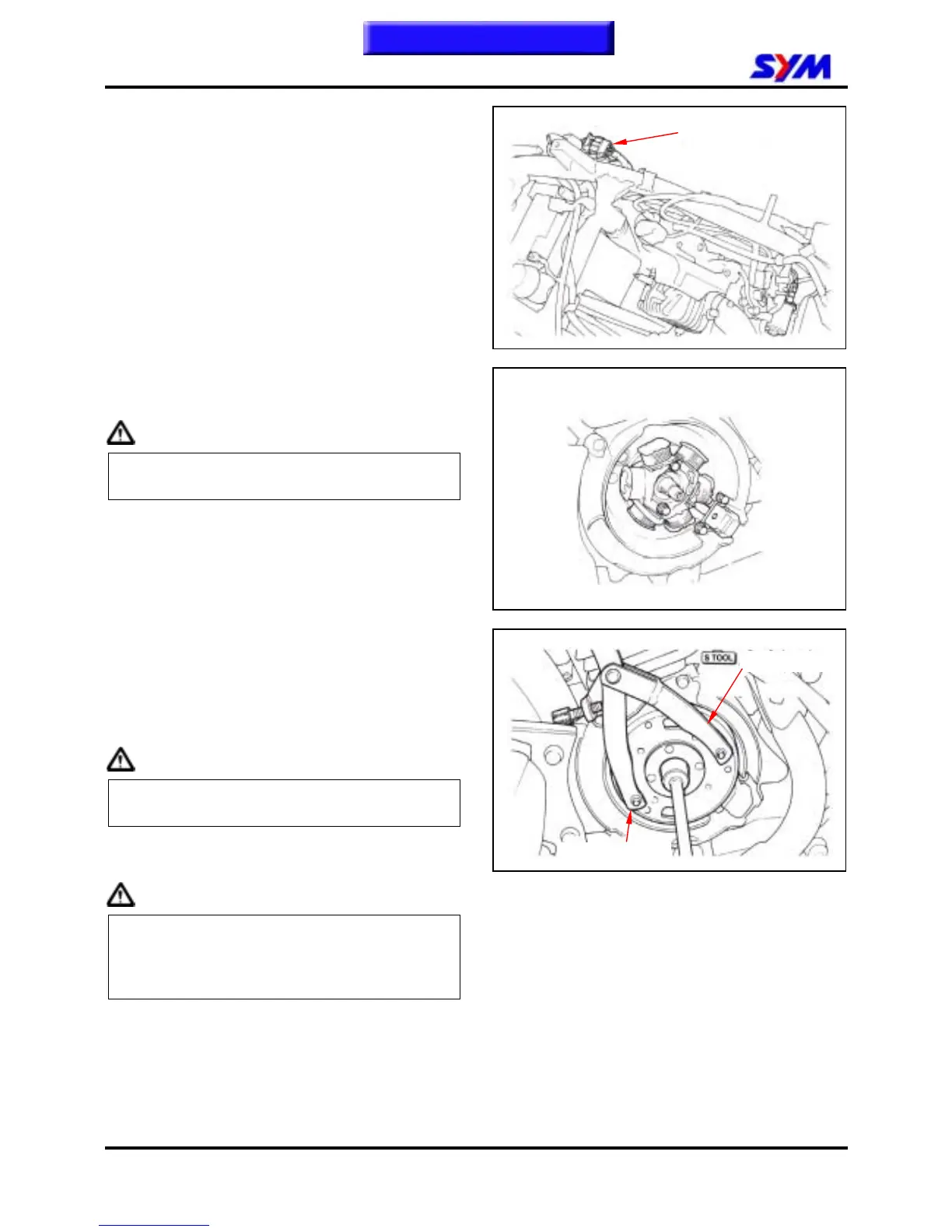

6. ALTERNATOR
6-4
Disconnect alternator wire connector and pulse
generator connector.
Remove the pulse generator and alternator four
(4) bolts, and then take out the alternator
assembly.
Caution
Care to be taken for not damaging the
alternator coil.
Alternator Installation
Install the alternator assembly.
Connect the alternator connector.
Caution
Connect the alternator wire harness properly
and then clip the harness with clipper.
Install the woodruff key onto the crankshaft
groove.
Caution
y Clean dirt and metal pieces inside the
flywheel.
y Make sure that there is no foreign material
inside the flywheel.
Install the flywheel
Tighten the flywheel 10 mm nut.
Torque value: 3.8kgf-m
Install the removed parts in reverse order of
removal procedures.
Start engine and check its ignition timing.
Wire harness connector
This chapter Contents
Universal holder
10mm flanged nut
