Appendix B CRAFT Software Reference
Starting SynCraft
208 TimeProvider User’s Guide 097-58001-02 Revision C – August 2005
Creating a Connection
To create a connection to the TimeProvider, select Connection, New Connection.
The Create New Connection window appears, as shown in Figure B-2..

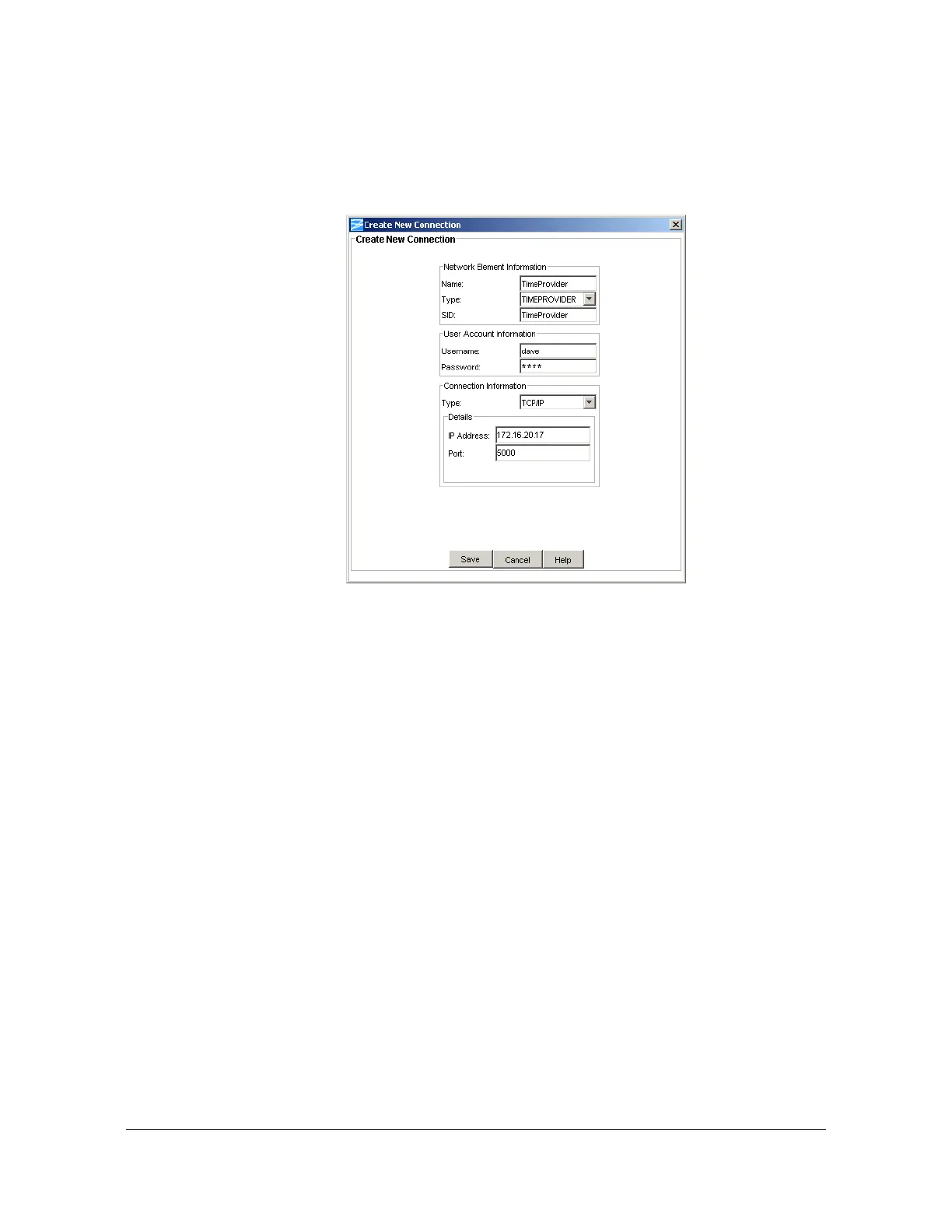

Figure B-2. The Create New Connection Window
Fill in each field as appropriate for your installation, then click Save.
 Name – the name of the connection as used by SynCraft
 Type – select TimeProvider from the drop-down list
 SiD – enter the Source ID for the unit
 Username – enter a valid user name defined in the TimeProvider’s userid list
 Password – enter the password for the user
 Type – select TCP-IP for use with an Ethernet connection
 IP address – enter the unit’s IP address
 Port – enter 5000 for use with an Ethernet connection
Opening a Connection
To open a connection to the TimeProvider, right-click the name of the connection in
the network element list in the left column of the SynCraft window. Select Open
Connection from the drop-down list that appears; the Logical View appears in the
main SynCraft window, as shown in Figure B-3..
