097-58001-02 Revision C – August 2005 TimeProvider User’s Guide 67
Chapter 3 Installing the TimeProvider
Making Connections
To install the antenna:
1. Attach the antenna mounting bracket to a 1-inch (2.5 cm) diameter pipe or wood
post.
If you are mounting the bracket to a pipe, assemble as shown in
Figure 3-19. Slide the two V-bolts over the pipe, and through the mounting
bracket slots; then place the provided four washers and four nuts over the
V-bolts, against the mounting bracket. Leave the V-bolts loose enough to
allow for final adjustments.

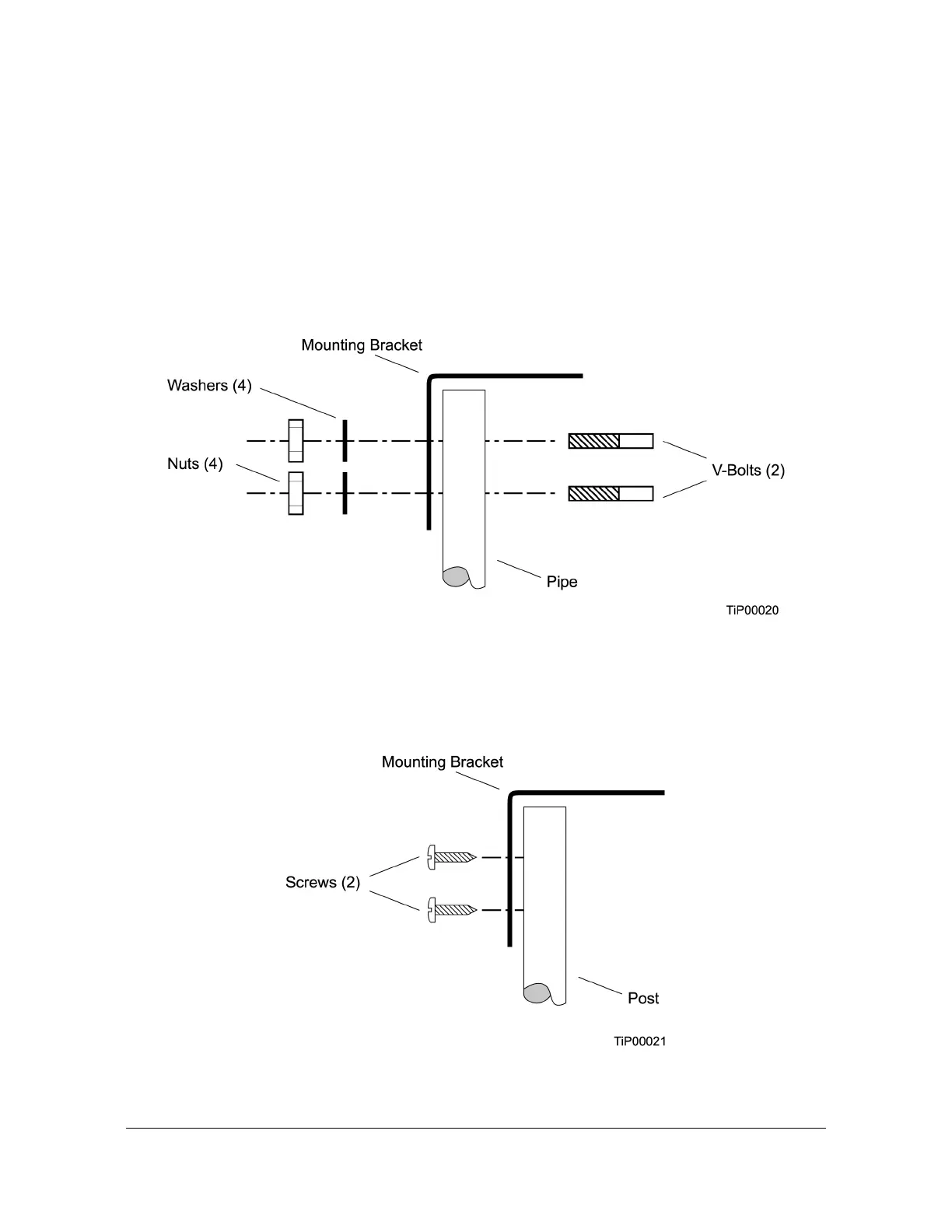

Figure 3-19. Installing the Antenna Bracket on a Pipe
If you are mounting the bracket to a wood post, assemble as shown in
Figure 3-20. Install the provided two self-tapping screws in two diagonally
positioned mounting bracket slots, and attach to the post.
Figure 3-20. Installing the Antenna Bracket on a Post
Mount the antenna and mast assembly to the “L” bracket.
