Symmetricom TimeProvider 1100 - Mounting the TPIU and Expansion Panel on the same Rack Ears; Mounting the TPIU with a Model 1000 ETSI-Style Shelf

097-58001-02 Revision C – August 2005 TimeProvider User’s Guide 71
Chapter 3 Installing the TimeProvider
Making Connections

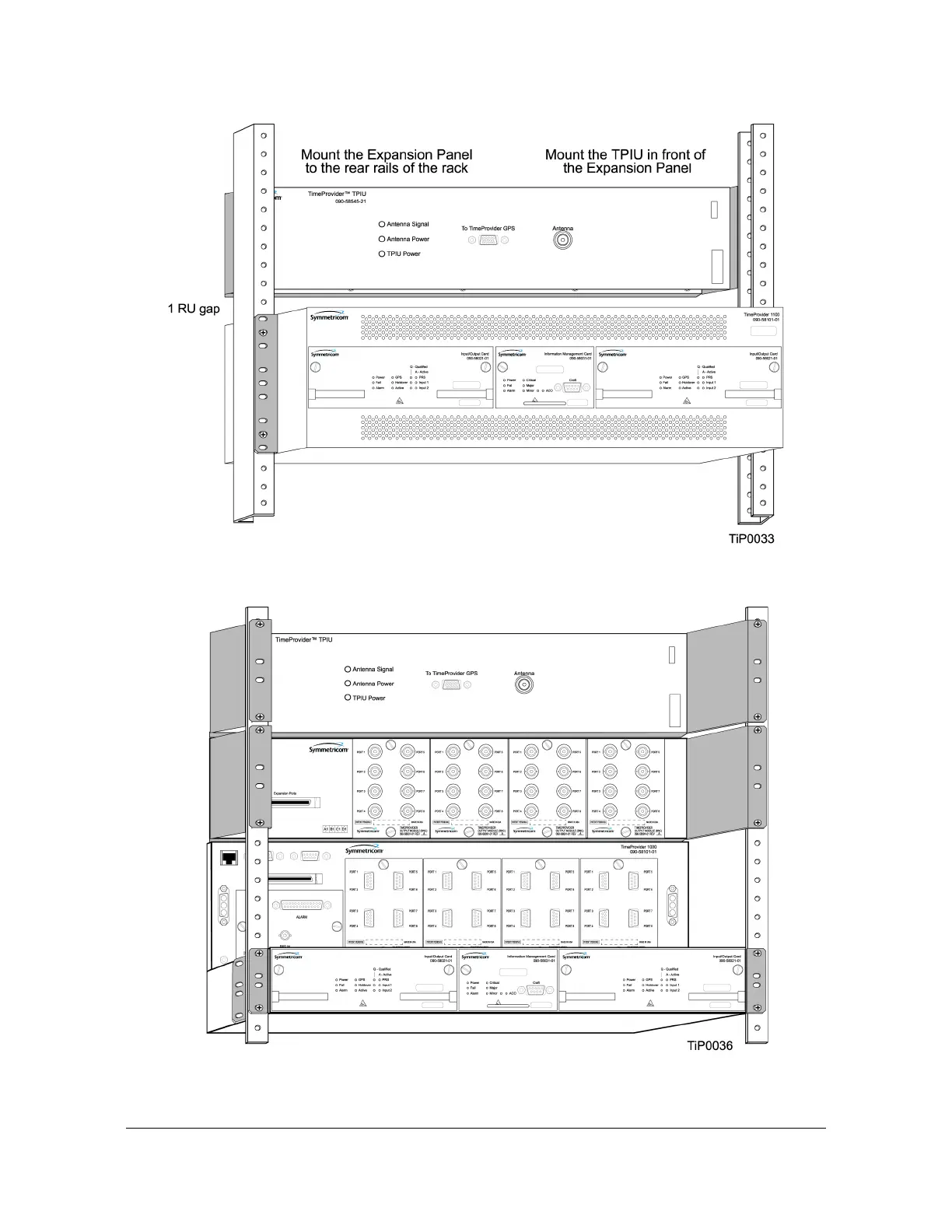

Figure 3-23. Mounting the TPIU and Expansion Panel on the Same Rack Ears
Figure 3-24. Mounting the TPIU with a Model 1000 ETSI-Style Shelf
