Chapter 3 Installing the TimeProvider
Making Connections
58 TimeProvider User’s Guide 097-58001-02 Revision C – August 2005

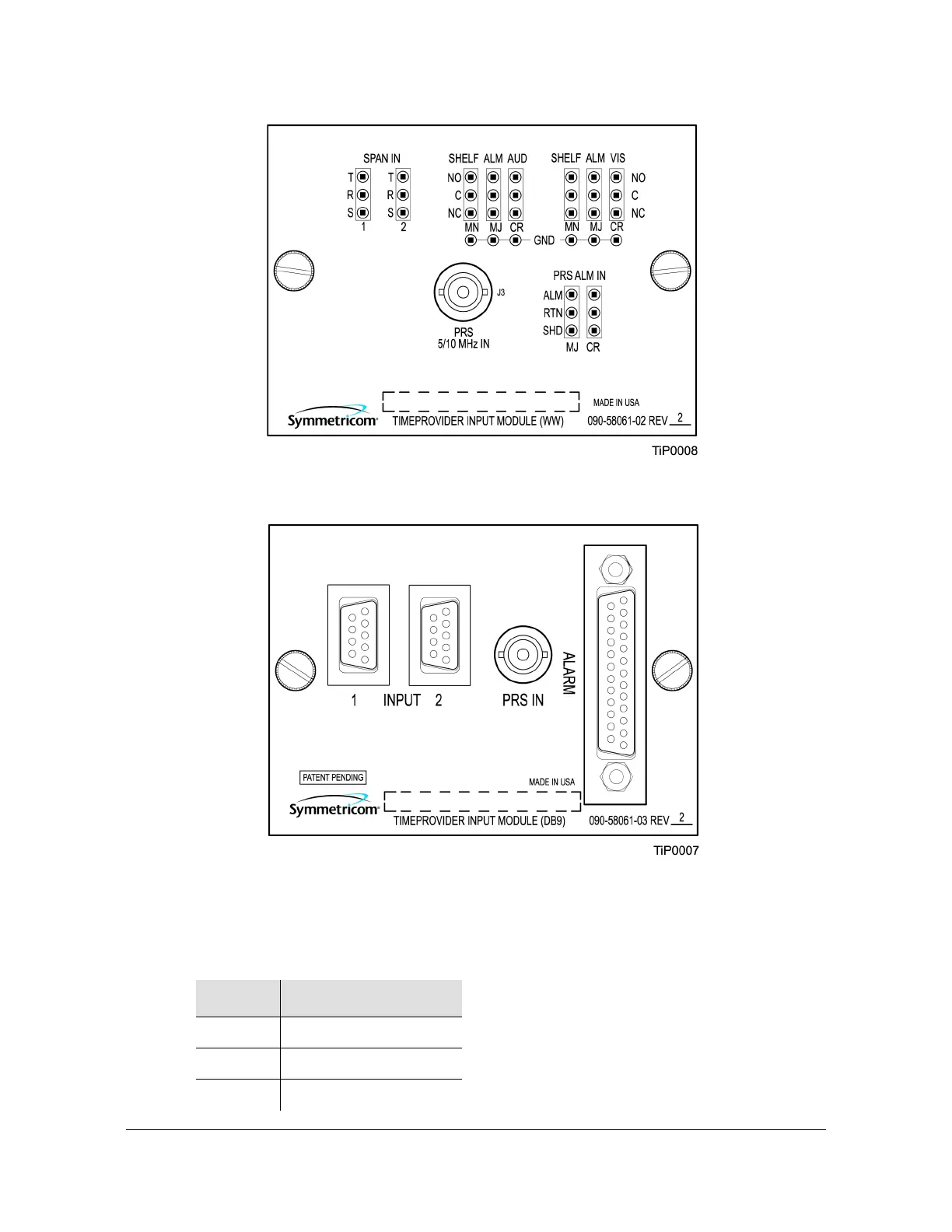

Figure 3-8. Wire-Wrap Input Module
Figure 3-9. DB9 Input Module
The pinout for the DB9 Input module is shown in Table 3-3.
Table 3-3. Pinout for the DB9 Input Module
Pin Description
3 Chassis ground
4 Span Input Tip
8 Span Input Ring
