Chapter 3 Installing the TimeProvider
Making Connections
68 TimeProvider User’s Guide 097-58001-02 Revision C – August 2005
2. Connect the mast to the flange using PVC glue.
3.
Feed an RG58 (060-58545-xx) cable through the bottom of the mast as illustrated.
See Table 2-4 for specific cable lengths.
4. Connect the cable to the antenna “pigtail” and pull the cable back through the mast.
5. Mount the antenna to the mast using the supplied shims.
6. Mount the antenna and mast assembly to the “L” bracket using the supplied nuts,
bolts, and washers, as shown in Figure 3-21.

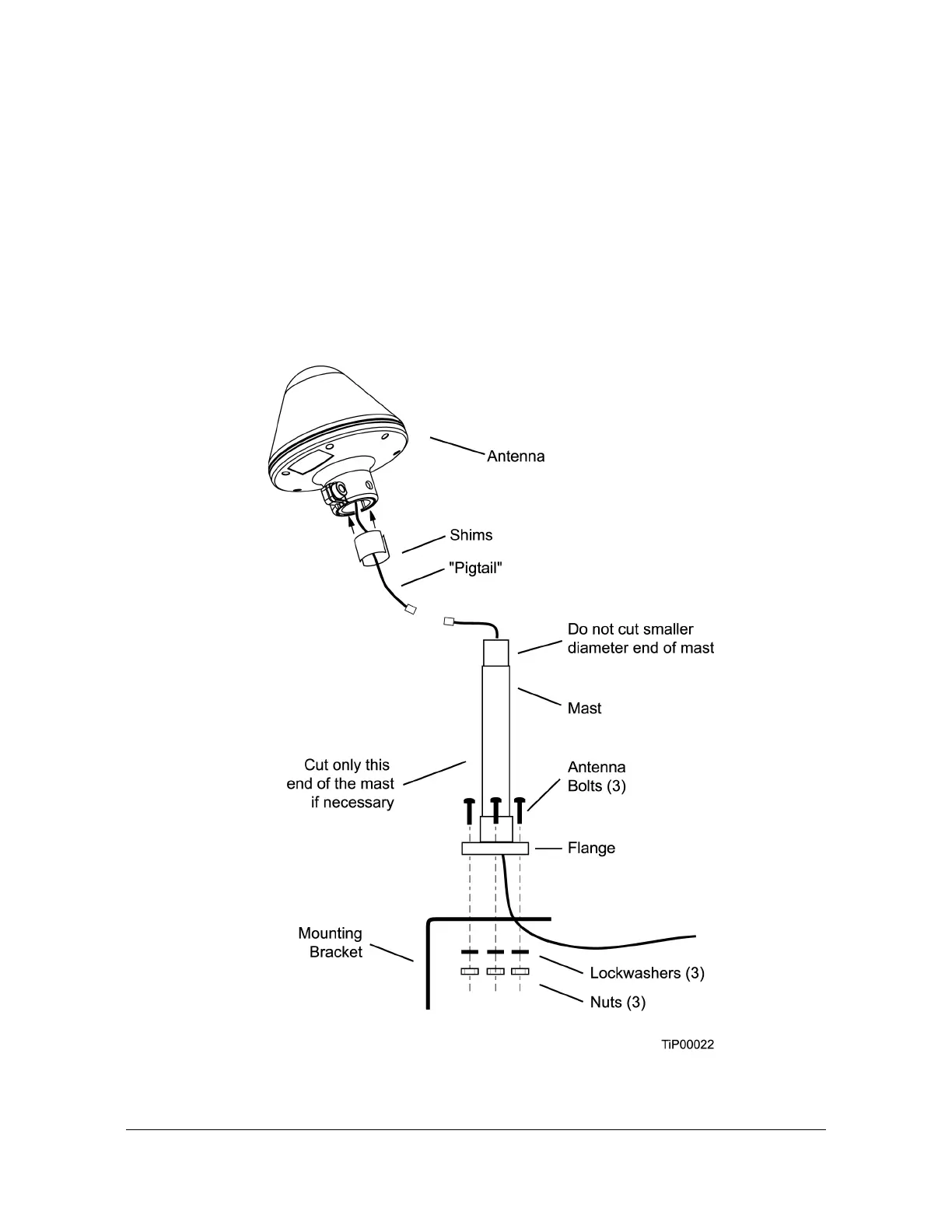

Figure 3-21. Attaching the Antenna to the Bracket
