How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 14 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

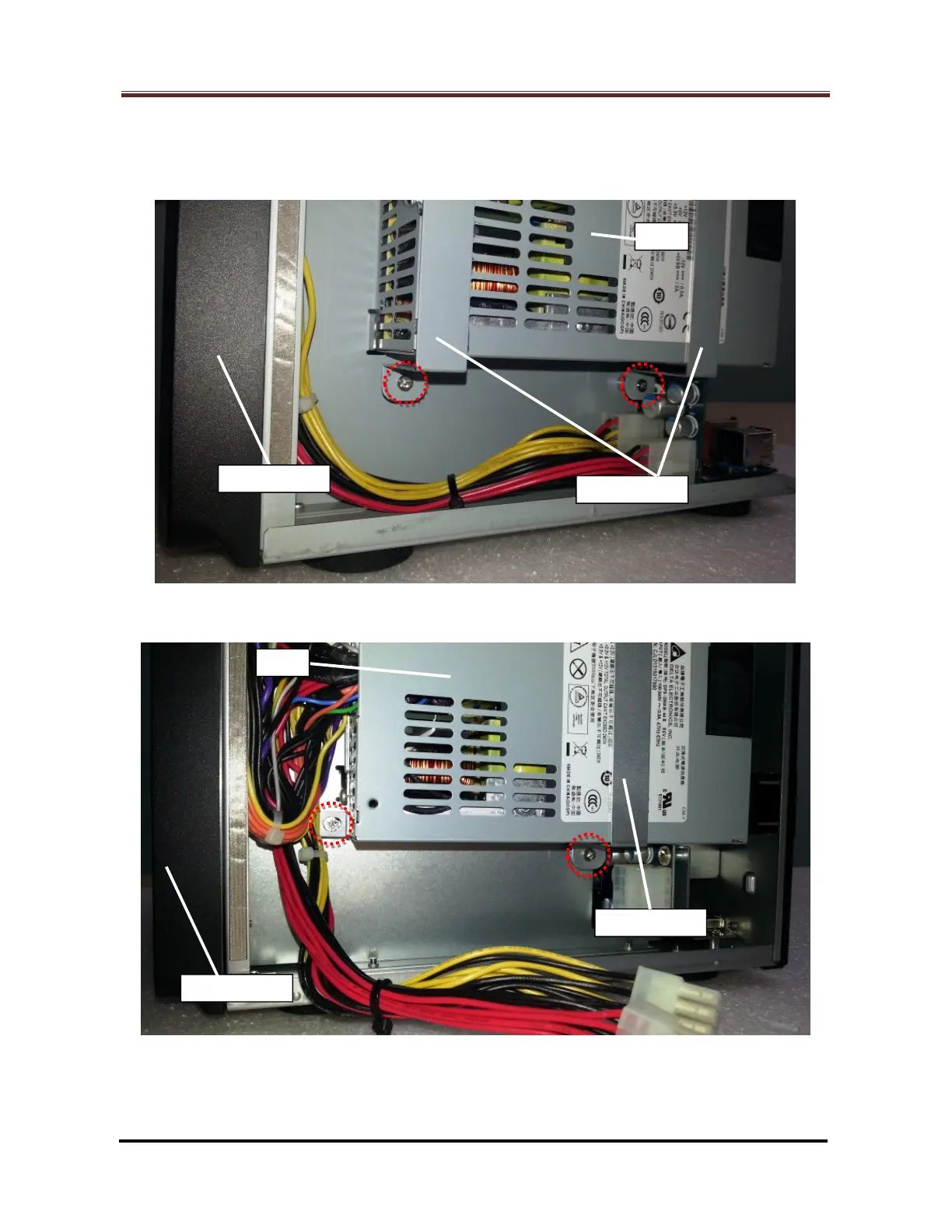

2.1.15 Release the two (2) screws (Marked by the red circles) which fix the PSU. (Fig. 19
for DS1813+ and DS1812+, Fig. 20 for DS1513+, DS1512+, DS1511+, DX513 and
DX510). Then remove the PSU bracket(s).
Fig. 19 – For DS1813+, DS1812+
Fig. 20 – For DS1513+, DS1512+, DS1511+, DX513 and DX510
