Synology DS1813+ - Page 15

How to Replace Hard Disk Backplane for 8 bay/5 bay DiskStation
Page 15 of 39
Date: 2014/4/11
Issued by: Hardware Development Group, Synology
®
Inc.

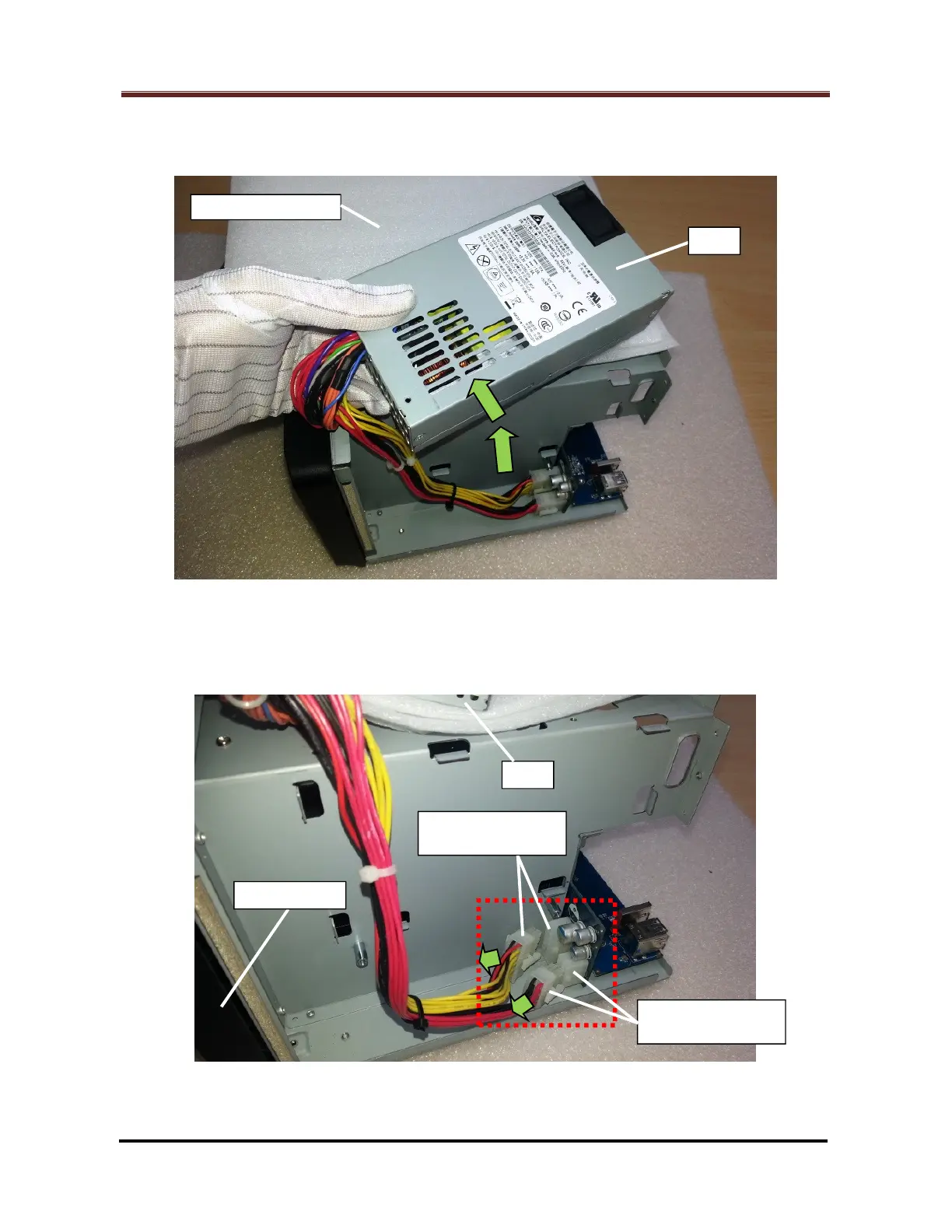

2.1.16 Remove the PSU from the enclosure then flip it up with its top side lain on the
cushion. (Fig. 21)
Fig. 21
2.1.17 Unplug the 12-pin and 8-pin PSU cable connectors (Marked by the red rectangle).
(Fig. 22)
Fig. 22
PSU
Cushion Material
PSU
Front Panel
12
-
pin PSU Cable
Connector
8
-
pin PSU Cable
Connector
