SYNRAD® 32-1 Operator’s Manual Version 2.2
29
Operation
Controls & Indicators
DB9 Connector
DC Power Cables

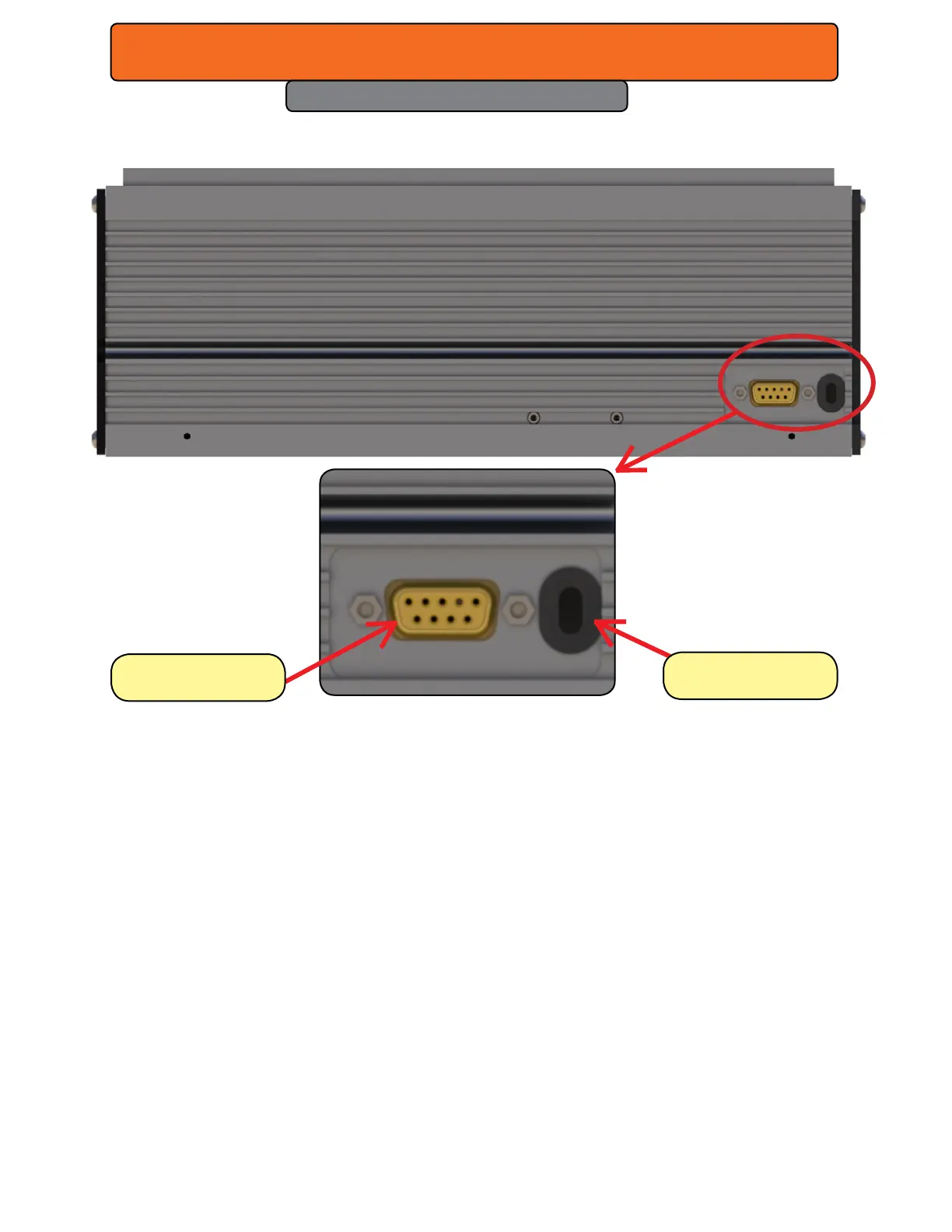

Figure 3-2 Side panel controls and indicators.
Side panel
DC Power Cables – red (+) and black (–) DC Power input cables are manufactured from #12
AWG wire and measure 1.1 meters (3.5 feet) in length.
DB-9 Connector – provides an interconnection for message, fault shutdown, remote interlock,
remote keyswitch, and interface signals. Refer to the DB-9 connections section in the Techni-
cal Reference chapter for information on pin assignments and function.
