CAN – Ethernet Gateway
16 © SYS TEC electronic GmbH 2007 L-1032e_9

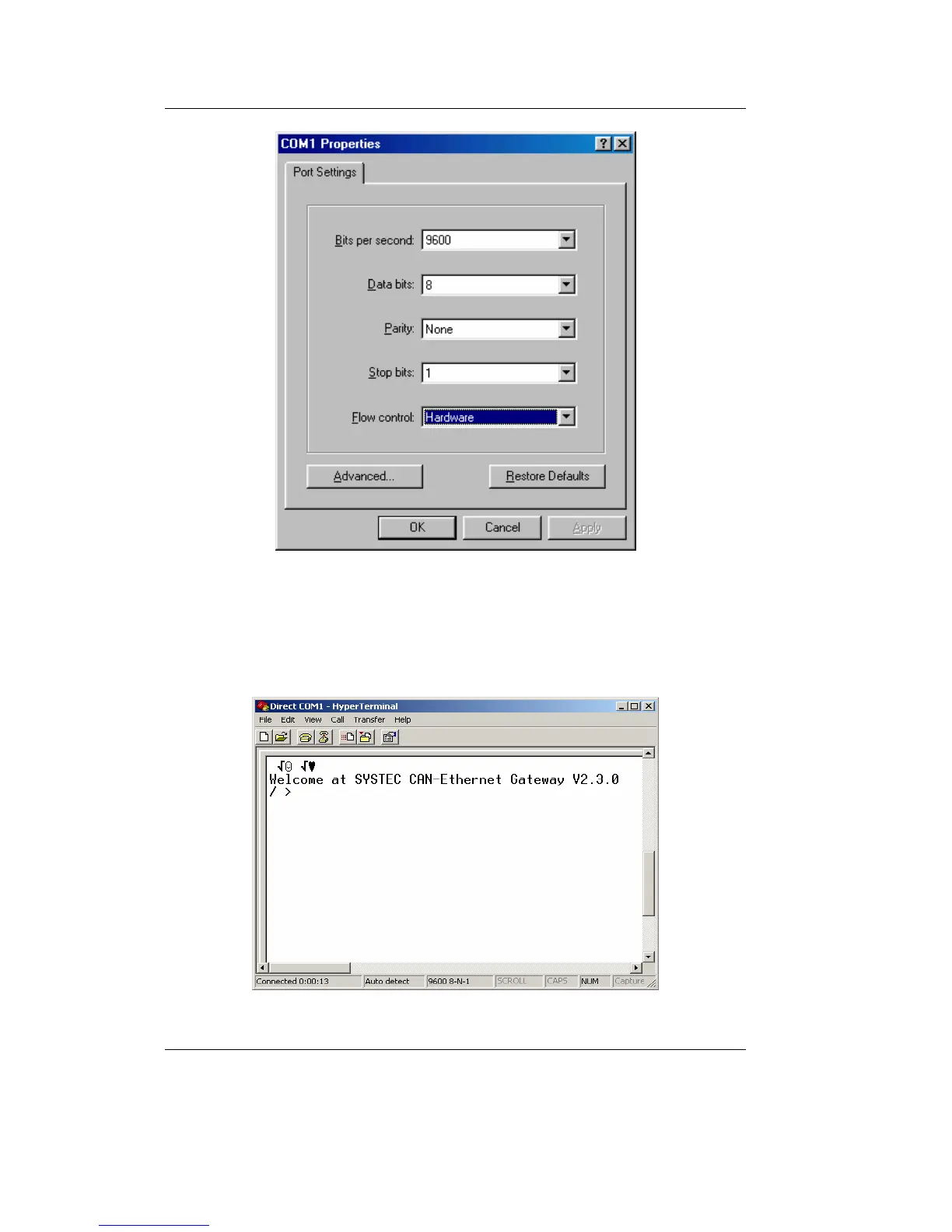

Figure 5: HyperTerminal Configuration (2)
• Be sure that you have correctly connected the supply voltage
(polarity) and then turn on the power.
Figure 6: CAN-Ethernet Gateway Start Message
