Description
5.2.4 Accessories

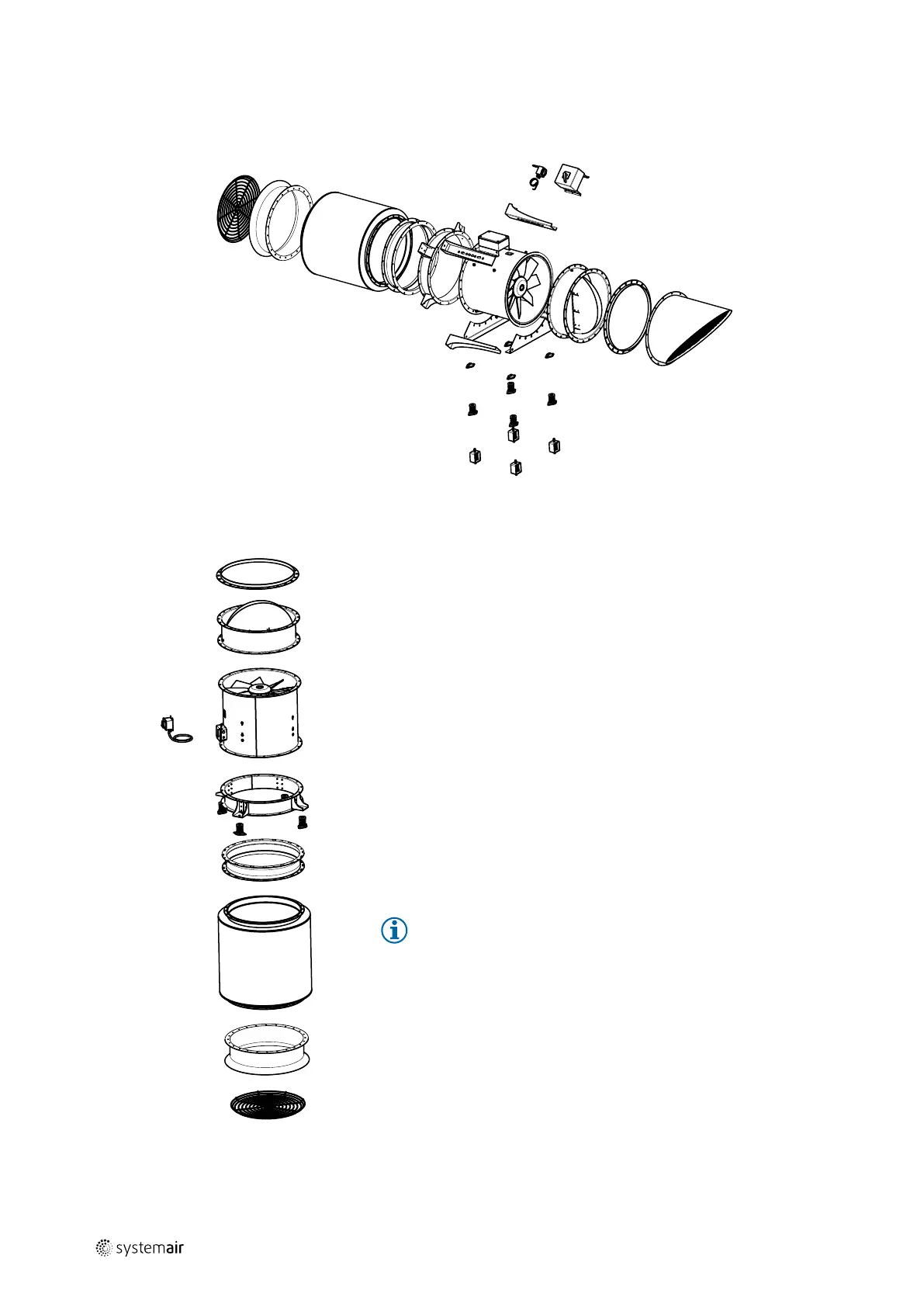

Horizontal installation
1
2
3
4
5
6 7
8
9
10
11
12
13
8
14
15
Vertical Installation
1
2
3
4
5
11
6
13
14
1 SG
Protection guard
2 ESD-F
Inlet cone
3 RSA
Silencer
4
EV, EVH (F400)
Flexible connection
5 MPR
Mounting ring from size 315 to 1000
6
REV (60°C)
Isolator switch
7
REV (fire rated)
Isolator switch
8 MP
Mounting bracket from size 1120
9 MFA
Mounting foot
10 SD
Rubber anti-vibration mounts
11 FSD
Spring anti-vibration mounts
12 ZSD
Suspension spring anti-vibration
mounts
13 LRK
Air operated damper
14 GFL
Counter flange
15 ABS
Outlet cowl
Note:
Some accessories are also available for jet fans and AXCBF, please
check our online catalogue or contact Systemair.
