Description
|
5
5.1.5 Temperature types
Table 2 Types of fans
Type
Diameter [mm]
Long-term
operation –20°
C...55°C
(K) 250°C/120
min.
(B) 300°C/120
min.
(F) 400°C/120
min.
AXC/AXR
315 — 1600
X
AXC (K)/AXR (K)
315 — 1600
X X
AXC (B)/AXR (B)
315 — 1600
X X
AXC (F)/AXR (F)
315 — 1600
X X
AJR/AJ8
315 — 400
X
AJR (K)/AJ8 (K)
315 — 400
X X
AJR (B)/AJ8 (B)
315 — 400
X X
AJR (F)/AJ8 (F)
315 — 400
X X
IV 50, 85, 100
X
IV (B)
50, 85, 100
X X
IV(F)
50, 85, 100
X X
AXCBF- Thermo fans are equipped with an encapsulated motor, permanent operation temperature up to 200°C.
F250, F300, F400 according to DIN EN 12101–3
5.2 Description axial fans (AXR, AXC)
• In B3 conventional motors, the motor bracket is made from galvanized steel sheet. B30 “pad mounted” motors are
fitted in the housing via threaded rods or a welded motor support.
• The motor with impeller is mounted to a sturdy supporting structure made of galvanized steel sheet.

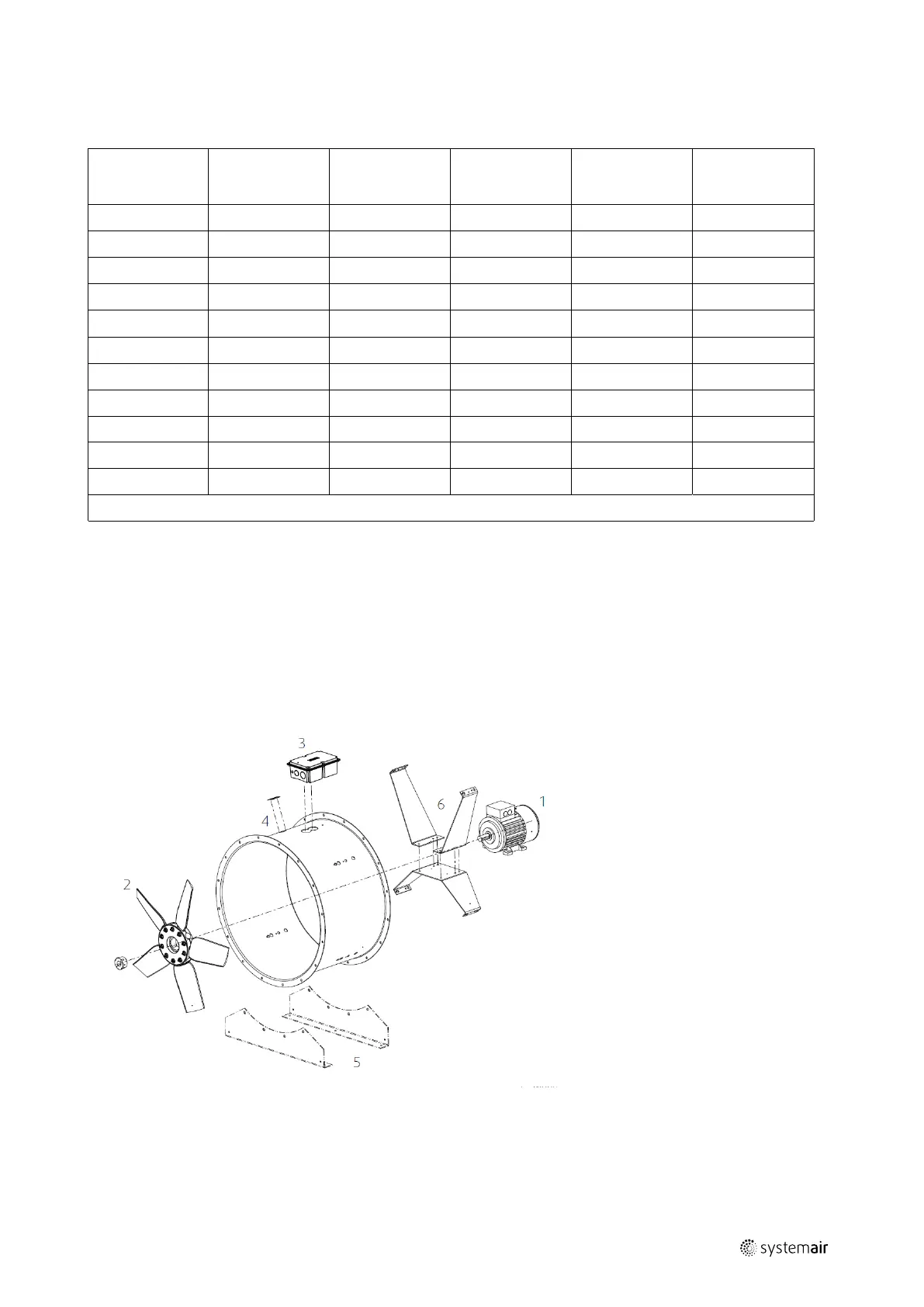

5.2.1 Construction
1 Motor
2
Impeller
3
Terminal box
4
Housing
5
Mounting feet
6
Motor brackets
| 003
