SystemAir AXC Series User Manual

18
| Installation

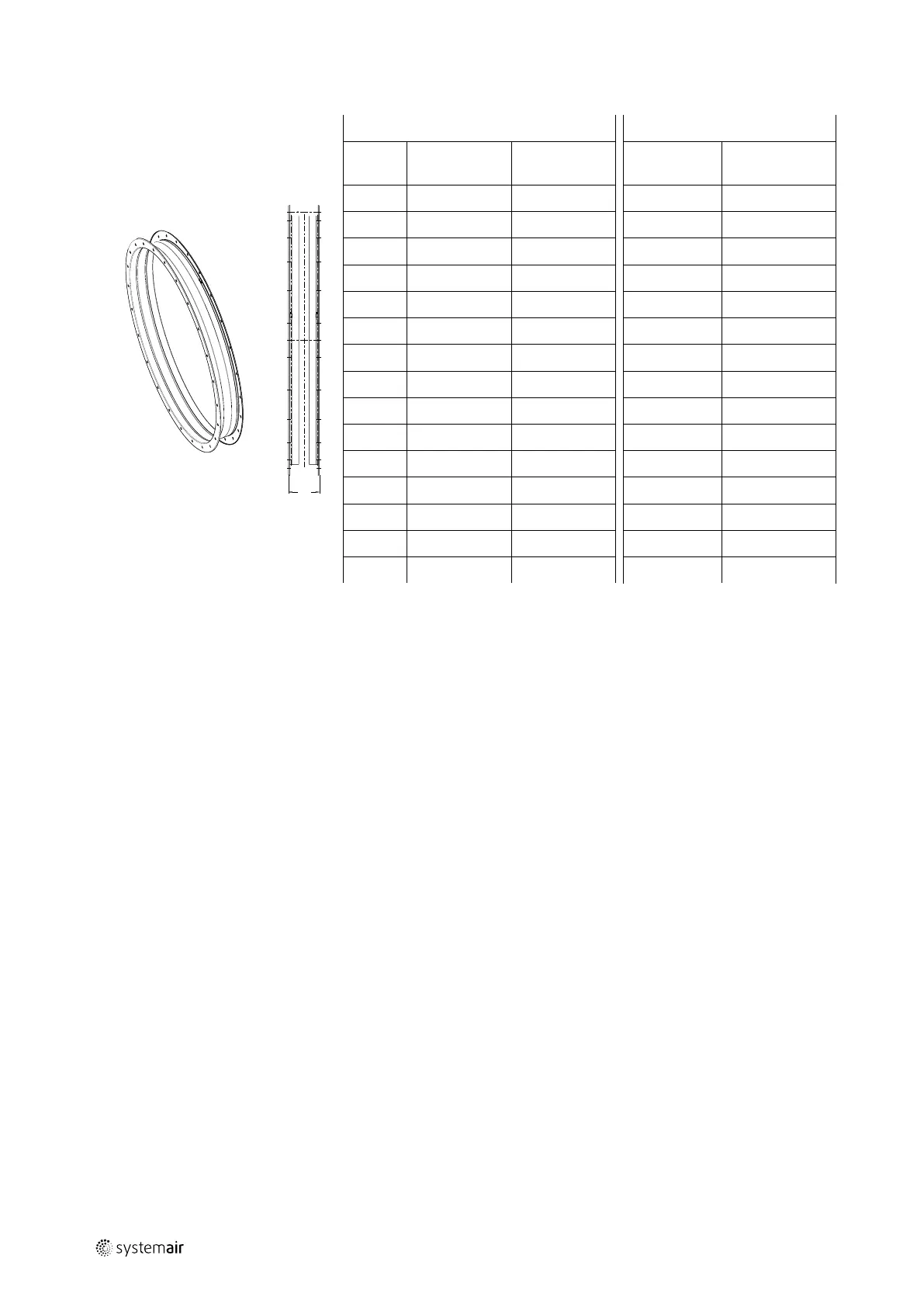

Table 10 Flexible connections — Installation length
LB
EV (-25...70°C) EVH (400°C/2h)
Size
LB full length
[mm]
LE Installation
length [mm]
LB Overall
length [mm]
LE Installation
length [mm]
315
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
355
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
400
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
450
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
500
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
560
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
630
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
710
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
800
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
900
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
1000
157 (+/-5)
LB — 10
147 (+/-5)
LB — 10
1120
157 (+/-5)
LB — 15
147 (+/-5)
LB — 15
1250
157 (+/-5)
LB — 15
147 (+/-5)
LB — 15
1400
157 (+/-5)
LB — 15
200 (+/-5)
LB — 15
1600
157 (+/-5)
LB — 15
200 (+/-5)
LB — 15
7.7.4 Installation silencer
♦ Ensure correct installation of the silencer.
• This can cause damage to the bearings or other parts of the fan.
• The duty point may not be reachable.
• The fan may make noise.
♦ Ensure a direct, smooth and constant air flow to the device. Ensure a free exhaust, see the following pictures.
♦ To reduce transmission of vibration to the duct system, we recommend flexible connections from our accessory
range, see 5.2.4 Accessories, page 8.
| 003
