Hitching the machine
Installation con-
trol box
Correct connection of the electronic control system
Never connect the cable to the cigarette lighter because of interfer-
ence risk. Always connect the cable directly to the interference-free
power source. Therefore check the functioning of the fuses on the
power cables.
The control box must be installed on a support or holder in the tractor
cab.
Take care of the following:
• Ensure the control box is installed in good manual and visible
reach of the operator
• Do not mount the control box onto a part that is subject to strong
vibrations
• Ensure the control box is in an area with less dust
• Do not install the control box where bright sun or rain may reach it
Electrical connec-
tions control box

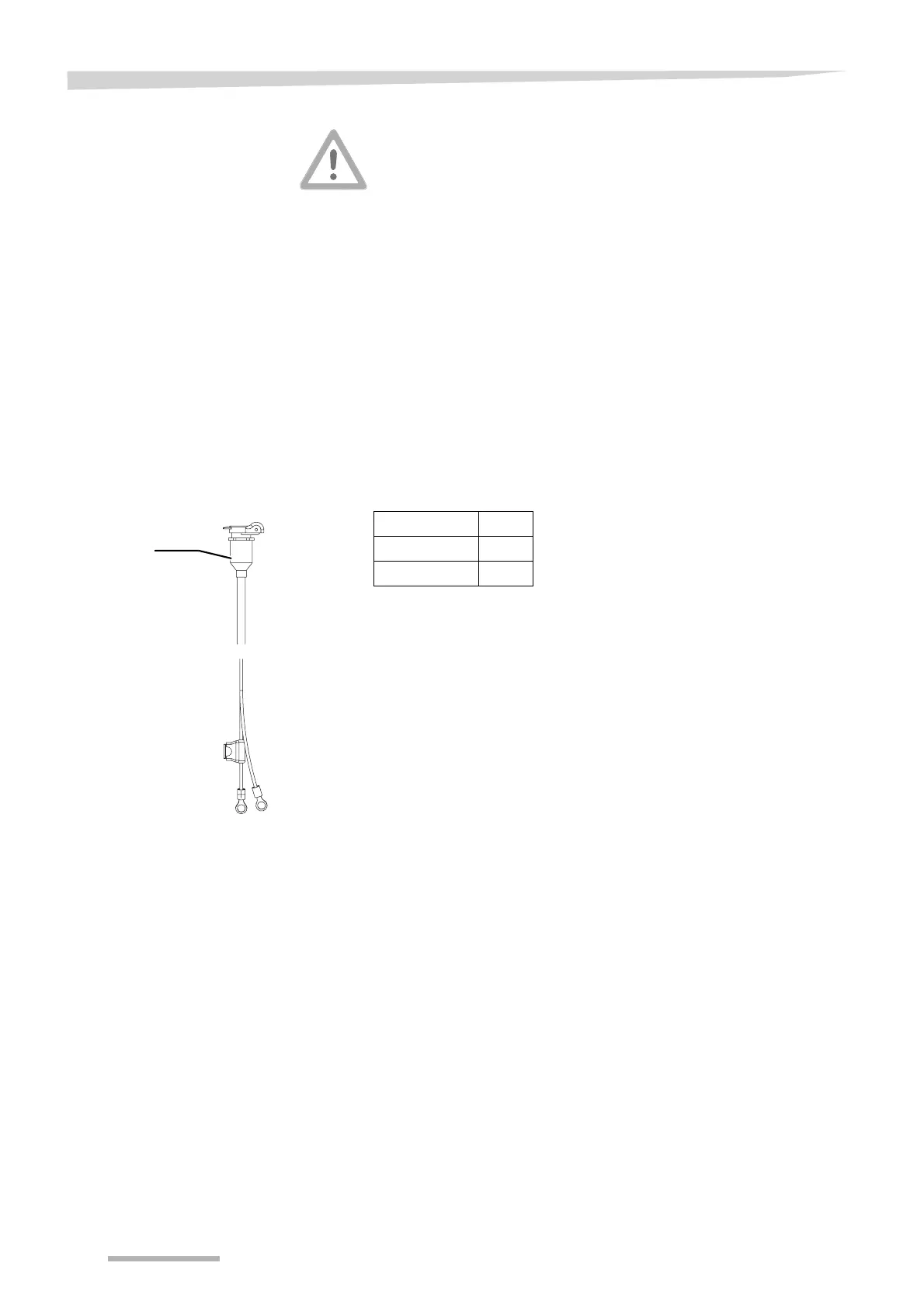

> Connect the main power cable of the machine box directly to the
12V battery of the tractor
> Connect the 4-pin connectors of the control box and machine box
to each other
Connection to
control box
Cable code Pole
++
--
