Maintenance
Applicutter
Applicutter knife re-
placement
Wear safety gloves
The applicutter knife is very sharp. Always wear safety gloves when
handling the applicutter knife. Not wearing safety gloves can cause
serious injuries.
In case of a dull applicutter knife, it can be exchanged.
> Switch off the electronic control system
> Shut down the tractor engine
> Remove the ignition key
> Loosen the bolts
> Take out the dull applicutter knife
> Place a new applicutter knife
The applicutter knife must be adjusted:
• parallel to the edge of the cover
• 2 mm from the edge of the cover
> Tighten the bolts
Catch rod adjustment
The catch rod must have a distance C of 4 - 5 mm between the
wheels. If the film is slipping out the catch rod after cutting, distance C
must be checked and adjusted if necessary.
> Use washers below the bolts to increase distance C
> Remove washers below the bolts to decrease distance C

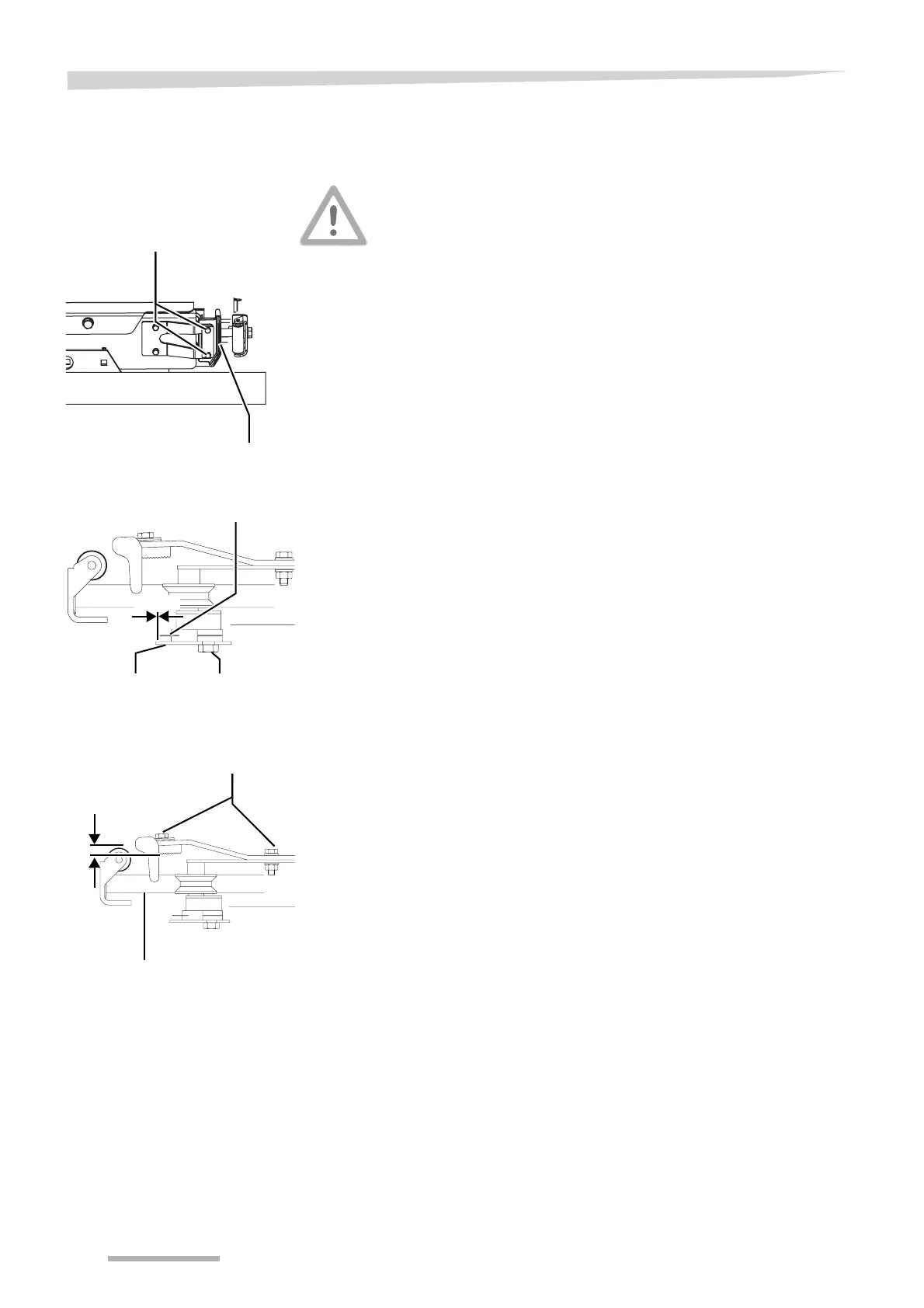

Applicutter knife
Bolts
2 mm
Cover Bolts
Applicutter knife
C
Bolts
Catch rod
