Hitching the machine
General
Remove the tractor lower links
Remove the lower links of the tractor to avoid them touching the draw-
bar. During turning, the lower links of the tractor can touch the drawbar
and the machine can tip over. Personal or machine damages can oc-
cur.
The machine is ex works provided for hitching to the towing hook of
the tractor.
Before the machine can be hitched to the towing hook of the tractor,
the correct height of the hitch eye to the towing hook of the tractor
must be determined.
> Place both tractor and machine in line on a firm level, with a dis-
tance between the towing hook of the tractor and the hitch eye of
about 15 cm
If necessary, the drawbar can be turned upside down. Doing this, the
drawbar can be set for high or low attachment.
Drawbar adjustment
Four drawbar types exist:
• standard drawbar
• drawbar with eye
• drawbar with double tongue
• high drawbar
→ Optional equipment, page 84
The machine must be placed in a horizontal position:
> Turn the handle to the left: the drawbar goes upwards
or
> Turn the handle to the right: the drawbar goes downwards
> Check the height of the towing hook of the tractor
The drawbar height can be changed by moving the drawbar. The
drawbar can be placed into six positions.
Select the correct position in accordance with your tractor in order to
have tractor and machine lined up correctly.
→ Moving the drawbar, page 29

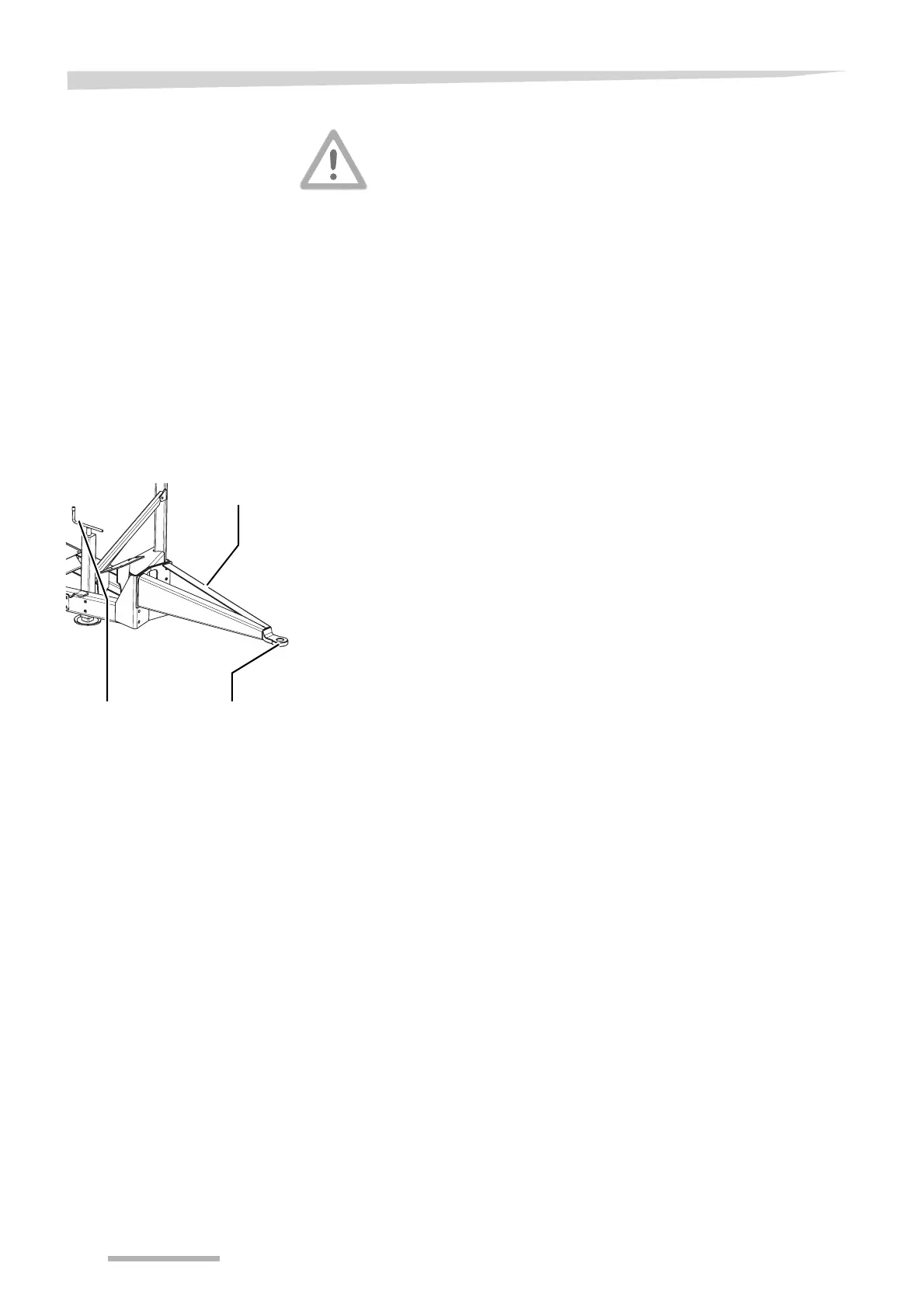

Drawbar
Handle Hitch eye
