Preparation at the field
Placing into work-
ing position
The machine must be used in working position. To bring the machine
into working position, the following steps are necessary:
• the right wheel must be in working position
• the loading arm lock must be removed

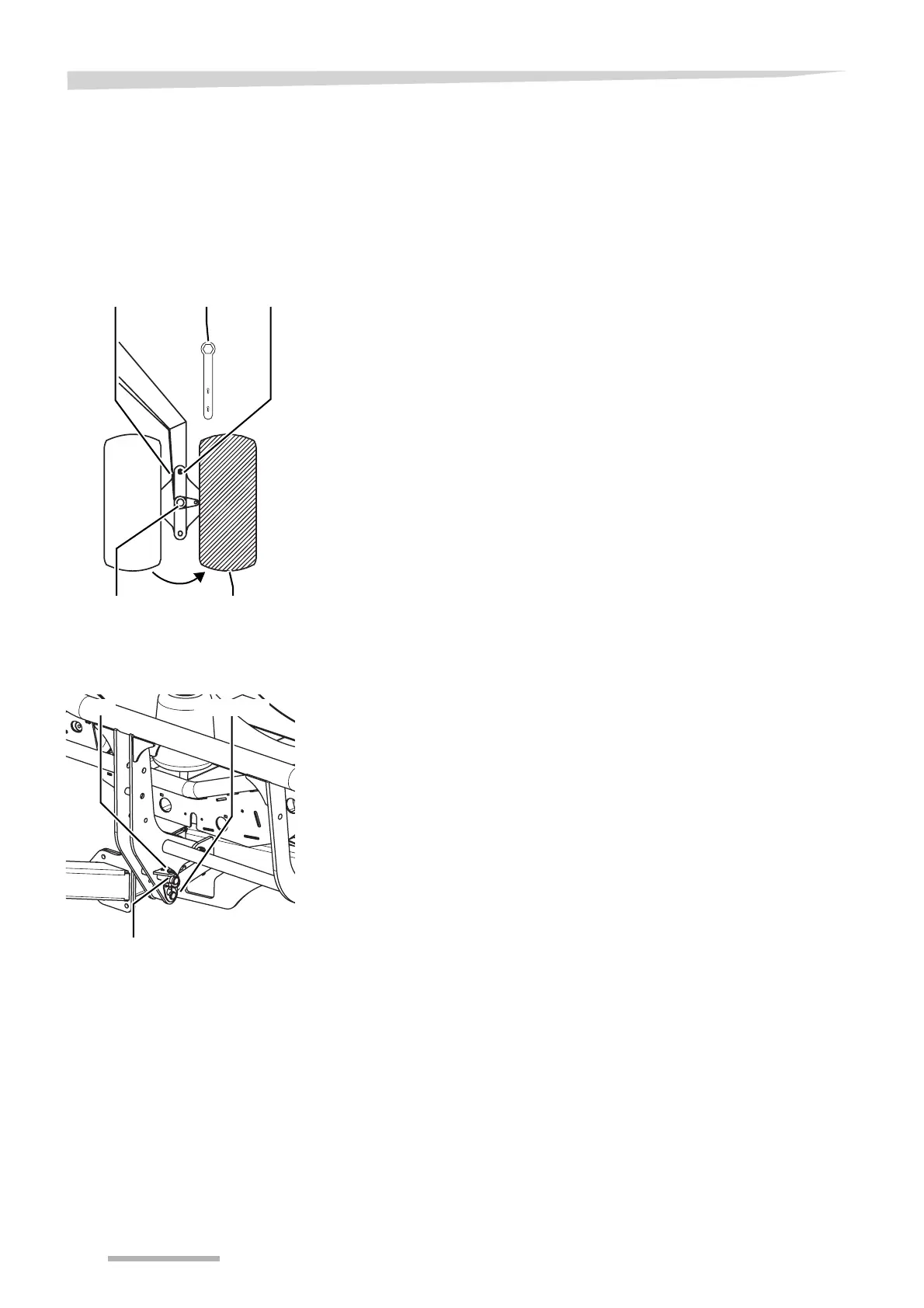

Right wheel in work-
ing position
The right wheel must be in working position.
> Remove the locking pin
> Remove the pin
> Place the wrench on the hexagon bolt
> Use the wrench to turn the wheel into working position
> Place the pin
> Place the locking pin
> Remove the wrench
Loading arm lock
The loading arm must be placed into working position.
> Remove the locking pin
> Remove the pin
> Move down the loading arm completely
> Mount the pin
> Lock the pin with the locking pin
The locking pin must be in the right hole.
Locking pin Pin
Working position
Wrench
Hexagon bolt
Locking pinPin
Right hole
