TAC 2112 - Adjusting the Reset Curve

TAC 2112, Manual Day-to-day Usage
4:2(6), 0-004-7459-3 (GB) 1999-08-01, TAC AB

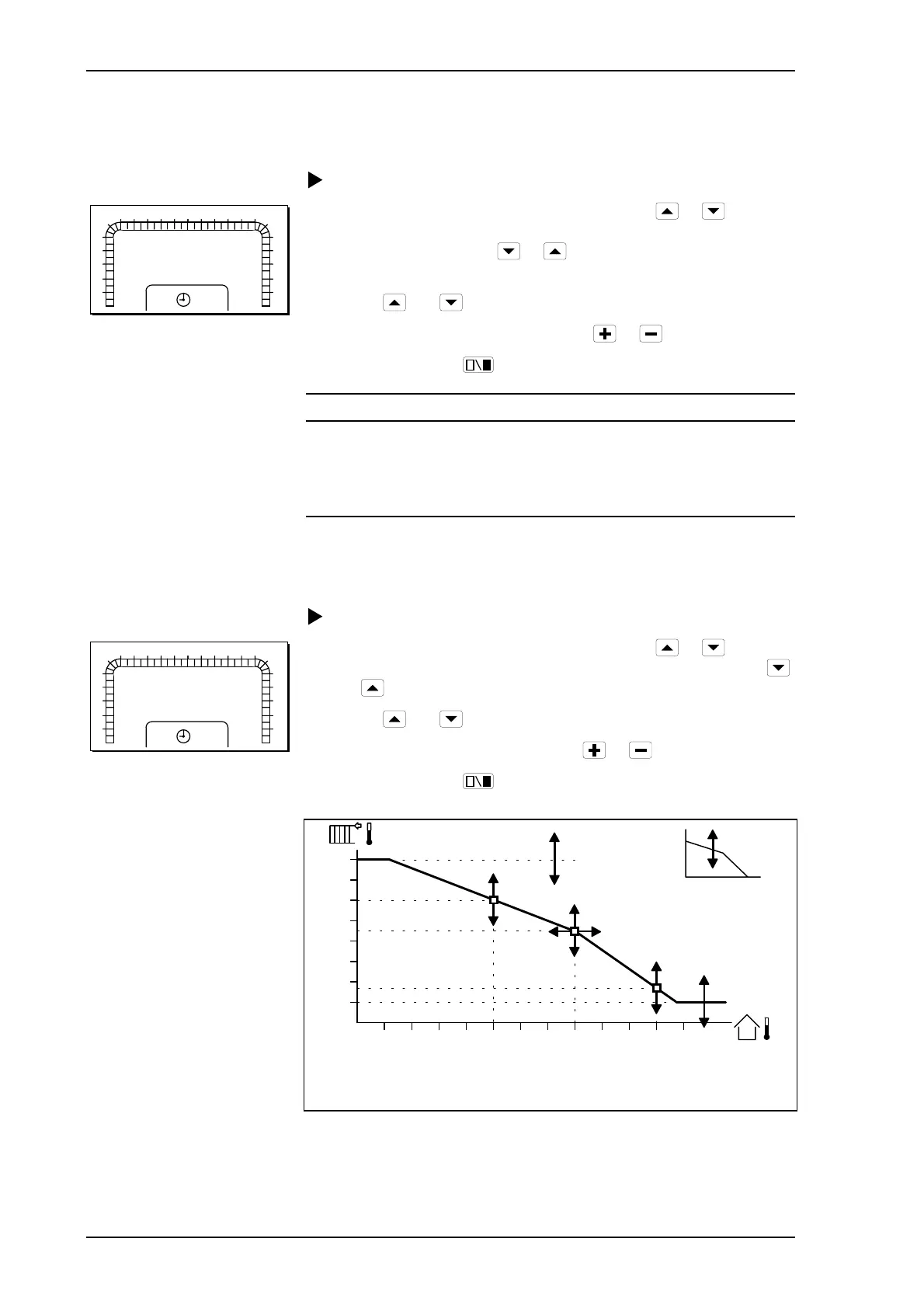

4.3 Setting temperatures
Procedure for setting a temperature:
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16 17
18
0
23
22
21
20
19
24
K1
P 06
-10.0
°C
1 Select parameter number (P No.) by pressing or as
shown in the list below. The parameter number is increased and
decreased by pressing
or . Hold down the button for fast
increase/decrease.
2 Press
and at the same time to get to P 15 – P 99.
3 Change the temperature by pressing
or .
4 Exit by pressing
.
Temperature P No.
Night setback of supply temperature P 06
Room temperature, setpoint day P 09
Room temperature, setpoint night P 10
4.4 Adjusting the reset curve
Procedure for adjusting the reset curve:
1
2
3
4
5
6
7 8 9 10 11 12 13 14 15 16 17
18
0
23
22
21
20
19
24
K1
P 23
80.0
°C
1 Select parameter number (P No.) by pressing or as
shown in the figure below. Increase and decrease by pressing
or
. Hold down the button for fast increase/decrease.
2 Press
and at the same time to get to P 15 – P 99.
3 Adjust the curve point by pressing
or .
4 Exit by pressing
.
10
20
30
40
50
60
80
-10 0 5-5 10 15 20-15 25-20-25
P 19
P 21
P 20
P 18
70
-30
P 23
P 22
P 05
Parallel
shift ±°C
Damped
Reset curve parameters
See chapter 7 for a more detailed description of the function of the
reset curve.
