3 Using the Operator’s Panel
3.1 Introduction
This chapter shows you how to use the buttons on the operator’s panel
and the display window to read off and set parameters such as
temperatures.
3.2 What is shown in the display window?
The display window provides you with information from the heating
installation in the form of digits and symbols.
1
2
3
4
5
6
7 8 9 1011121314151617
18
0
23
22
21
20
19
24
!
K1 K2 K3 K4
MO TU WE TH FR SA
°C°F
AM
SU
P 00
12:00
Parameter
number
Parameter
value
24-hour
time bar
Alarm
Pump
Morning
heating
Heating
off
Fixed night
setback
Timed
operation
Fixed
daytime
Manual
control
Buzzer
alarm
Weekly
program 2
Heating
valve
opens
Heating
valve
closes
operation

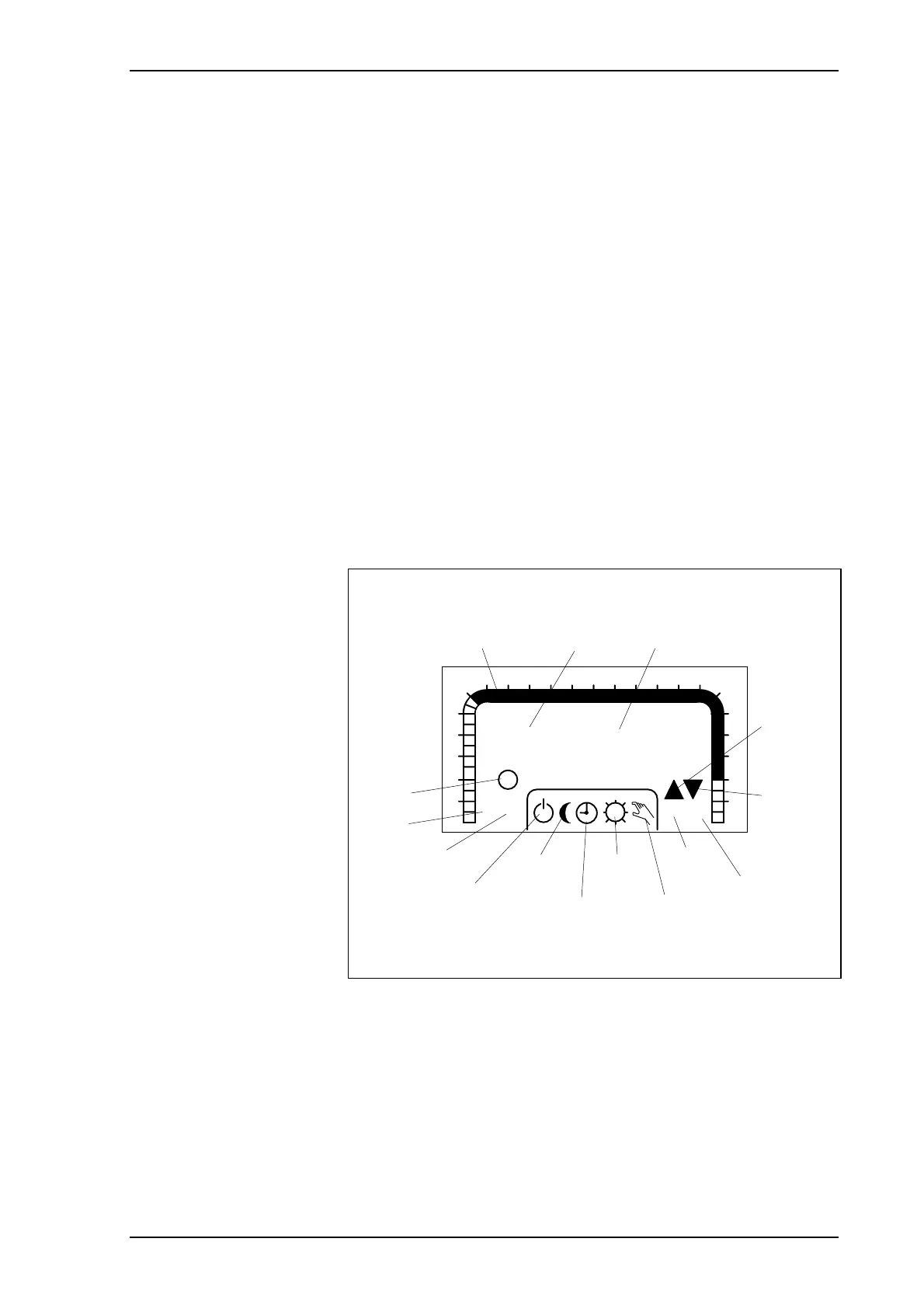

Information in the display window
