Connecting up
CAUTION
Do not turn on the power switch to the TAD-DA1000 or the other components until all connections have been completed.
When connecting components or changing connections, always set the power switch to OFF and disconnect the power
cord from its AC outlet. When making connections, connect the power cord
last.
•
Although the power cord to the TAD-DA1000 is removable, do not attempt to use a power cord
other than the supplied cord.

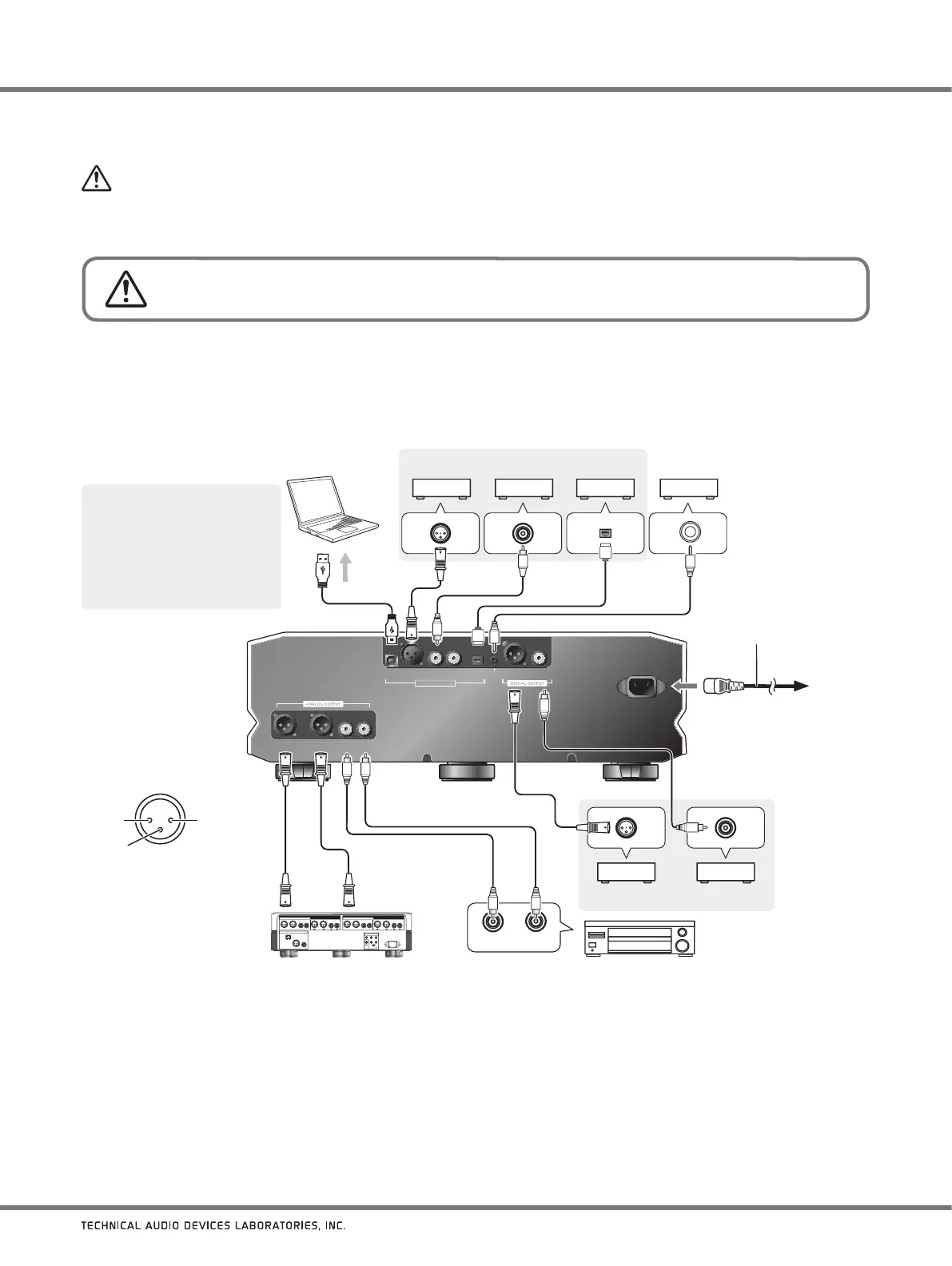

1. Connect other components.
2. Connect the supplied power cord to the TAD-DA1000’s AC IN connector.
3. Connect the power cord to a standard electrical outlet.
USB XLR COAXIAL OPT
DIGITAL INPUT
XLR COAXIAL
12 V
TRIGGER
IN
D4D1 D2 D3
BALANCED UNBALANCED
LLRR
AC IN
2
1
3
1: Ground
2: Hot
3: Cold
BALANCED
output connector
(XLR-3-31 equivalent)
RL
1. Turn on power to both the unit
and computer.
2. Switch the unit’s input to U1.
3. Using a USB cable, connect
the computer and unit; when
this is done the proper driver
will be automatically installed
(page 16).
Component with digital output connector
Component with digital input connector
Computer with USB port
Component
with 12 V trigger output connector
Pre-Amplifier with balanced input connectors Pre-Amplifier with unbalanced input connectors
Power cord
(supplied)
To AC
Power outlet
