TB8100 Installation and Operation Manual Connection 107
© Tait Electronics Limited June 2005

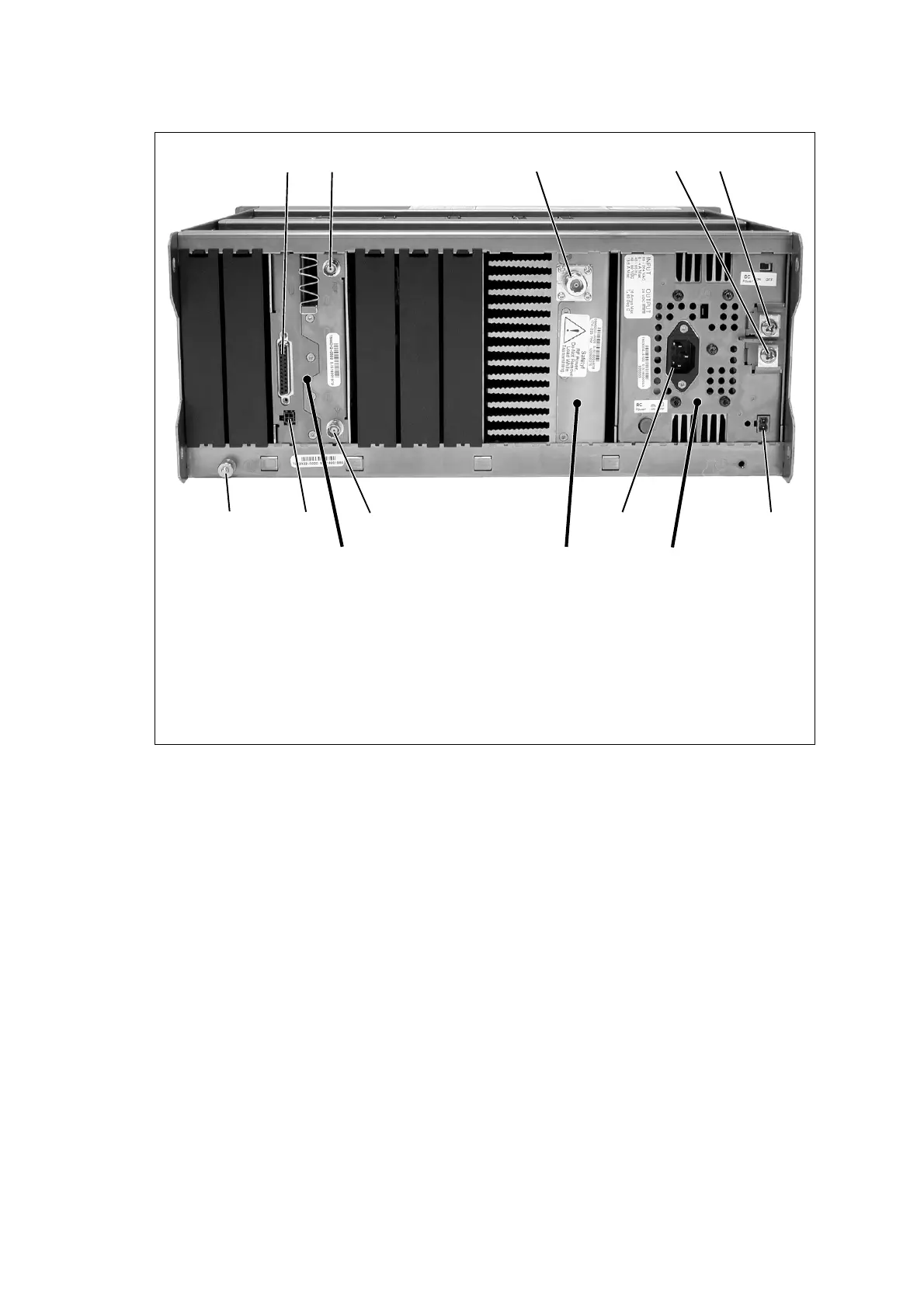

Figure 7.4 Single 5W or 50W base station inputs and outputs - rear view
b
system interface connector
g
auxiliary DC output
c
external reference frequency input
h
AC mains input
d
RF output (to antenna)
i
RF input (from antenna)
e
–VDC input
j
auxiliary DC input for system interface
a
f
+VDC input
1)
subrack ground connector
a. Older system interface boards use the 4-way connector shown in the photograph, while the TaitNet RS-232 board
and all other boards manufactured after March 2005 use a 2-way connector. Refer to “Reciter Auxiliary DC Input
from PMU” on page 113 for more details.
cdfe
hgij
PAreciter
PMU
b
1)
