TB8100 Installation and Operation Manual Connection 119
© Tait Electronics Limited June 2005
Isolated
This system interface board is fitted to reciters bearing the product code
TBA4xxx-0B0x or TBA5xxx-0B0x. If purchased separately, it has the
product code TBA10B0. It is the same as the standard model, except that
the balanced audio interfaces are galvanically (transformer) isolated. It
provides the following:
It is fitted with a 25-way female D-range connector and a 4-way auxiliary
DC input connector. The pin allocations for the D-range are listed in the
table below, and the pin allocations for the DC input connector are provided
in “Reciter Auxiliary DC Input from PMU” on page 113.
■ transformer isolated 600Ω balanced audio I/O
■ high impedance unbalanced audio I/O
■ digital I/O (2 outputs, 6 inputs, 4 bi-directional)
■ Tx key
■ Tx relay
■ Rx gate
■ RSSI

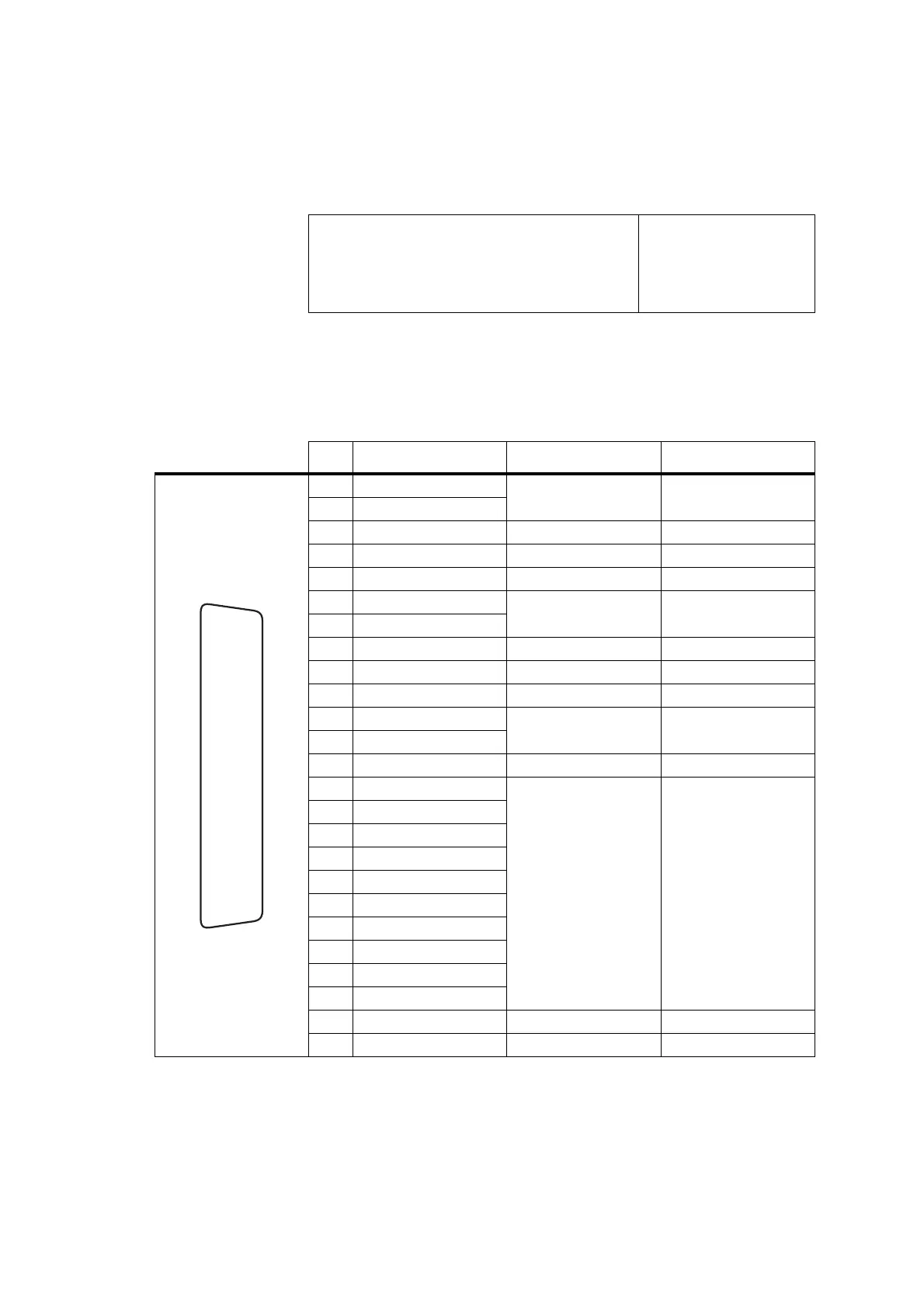

Pin Signal Name Signal Type Notes
1 Rx line out +
audio output transformer isolated line
2 Rx line out –
3 Rx audio out audio output AC coupled
4 ground ground
5 Tx audio in audio input AC coupled
6 Tx line in +
audio input transformer isolated line
7 Tx line in –
8 RSSI DC signal
9 Rx gate output open collector
10 Tx key input active low
11 digital out 1
a
output open collector
12 digital out 2
13 +AUX_V power output from auxiliary DC input
14 digital in 1
input
5V TTL logic
active low
15 digital in 2
16 digital in/out 3
b
17 digital in/out 4
b
18 digital in/out 5
b
19 digital in/out 6
b
20 digital in 7
21 digital in 8
22 digital in 9
23 digital in 10
24 Tx relay output open collector
25 ground ground
a. If a base station with a 12V PA is configured for Deep Sleep, digital out 1 is dedicated to Power Saving control and
should not be used for any other Task Manager function.
b. On version 1 and later system interface boards, digital inputs 3, 4, 5, and 6 may also be configured as outputs using
a Task Manager statement. For more details refer to “Digital Interface” on page 117 and to the Service Kit docu-
mentation.
external view
B
C
D
E
F
G
H
I
J
1)
1!
1@
1#
1$
1%
1^
1&
1*
1(
2)
2!
2@
2#
2$
2%
