1-10

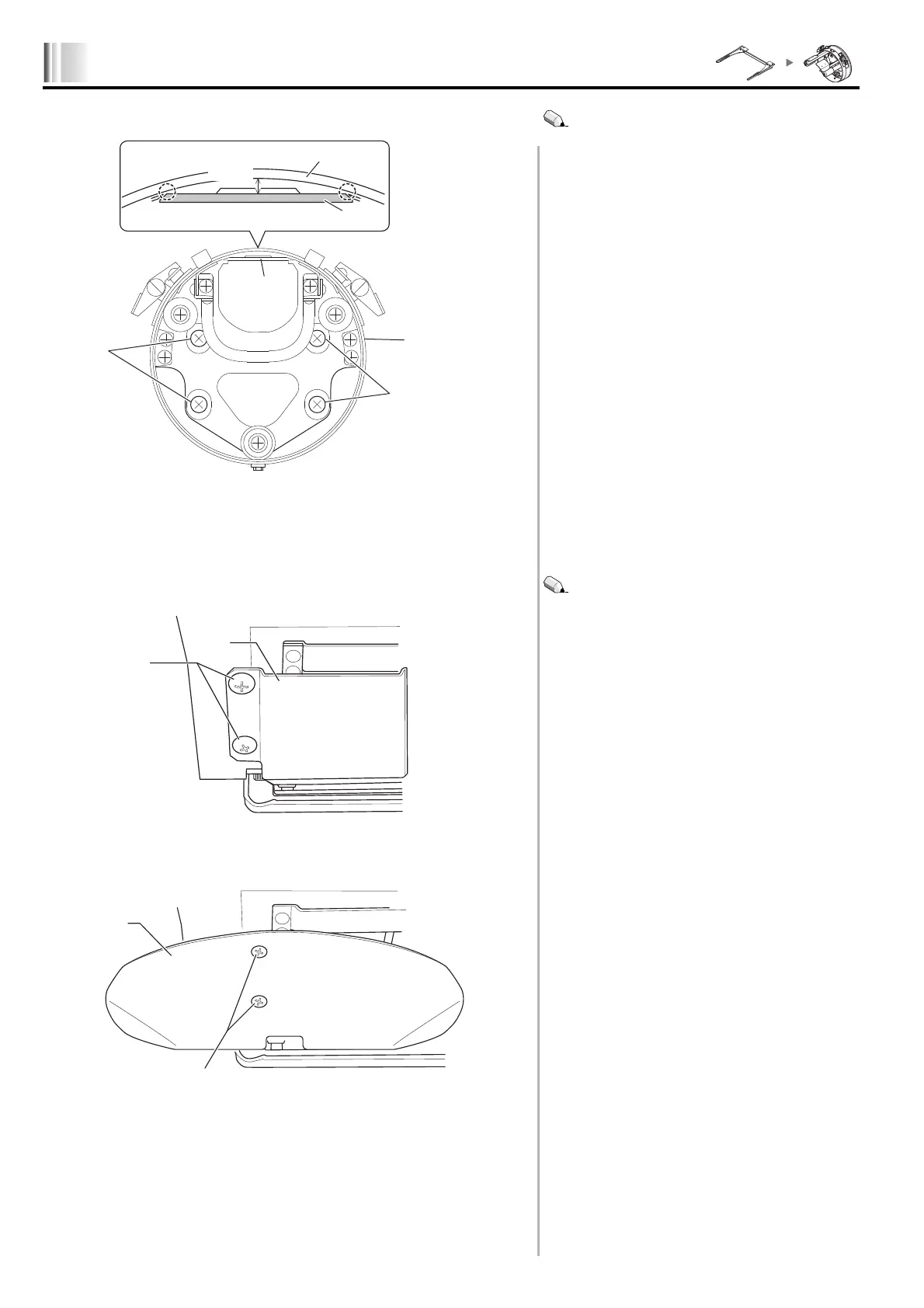

Changing procedure of the frame
4. Check if the drive ring (1) does not touch the needle plate (section A).
3. Attaching of cap frame guide
In case of TFMX-C ..................................................................................
1. Remove the screw (1) to detach the hook cover (2).
2. Fix the cap frame guide (4) using the screw (3).
When the drive ring (1) touches the needle plate (11) at
section A, loosen the screw (12) to adjust the position of
the drive ring (1). The height from the needle plate (11) to
the drive ring (1) is about 3 mm.
3 mm
1
11
12
12
1
11
AA
It is not necessary to remove the attached cap frame guide
(4) even when frame spec. is changed. However, if the cap
frame guide has a disadvantage for embroidery work,
return it to the hook cover (2).
1
2
4
3
KY02
