TAJIMA TEMX-C - Page 30

2-4

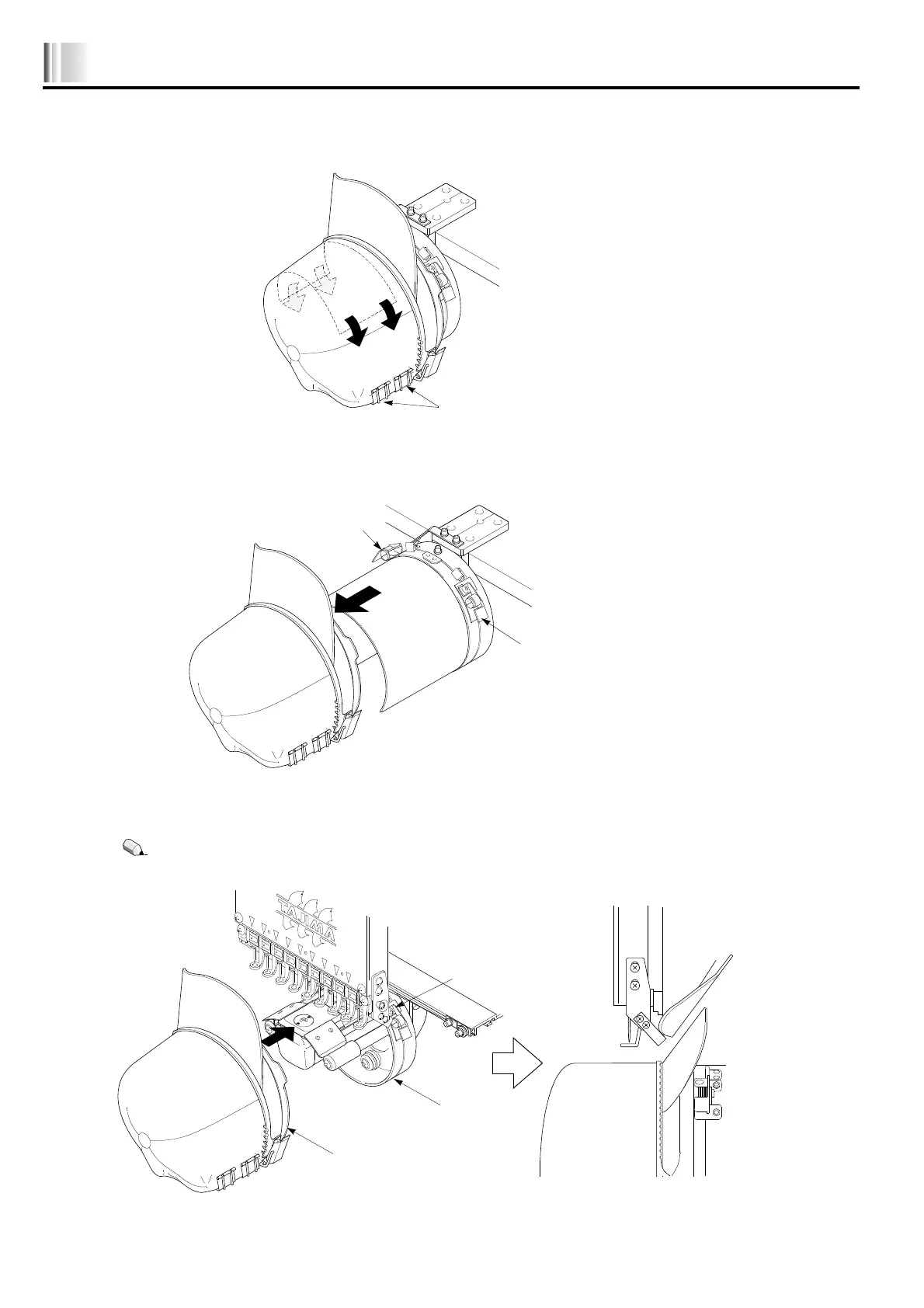

Set the frame.
6.
Fix embroidery area using the clip (11) after stretching it so that roundness of cap still remains.
7. Push the attach/detach lever (4) to detach the cap frame.
8. Set the cap frame (1) to the drive base frame (12).
Push the cap frame (1) into the drive base frame (12) until the cap frame is fixed by the lock pin (3).
11
4
4
12
1
3
KY01
