Takeuchi TB125 - 3-Hole Bucket; Changing the Link Arm Installation Position

218
OPTIONS
3-Hole Bucket
The digging capacity increases when the
bucket’s link arm installation position is
switched from (A) to (B). However, this
shortens the bucket stroke.
• Struck capacity (SAE):
TB125: 0.075 m
3
(0.098 cu. yd.)
TB135: 0.100 m
3
(0.130 cu. yd.)
TB145: 0.149 m
3
(0.195 cu. yd.)
• Rated capacity (SAE):
TB125: 0.093 m
3
(0.121 cu. yd.)
TB135: 0.130 m
3
(0.170 cu. yd.)
TB145: 0.188 m
3
(0.246 cu. yd.)
Changing the Link Arm
Installation Position
Refer to page 128 “Replacing the Bucket” in
the manual.

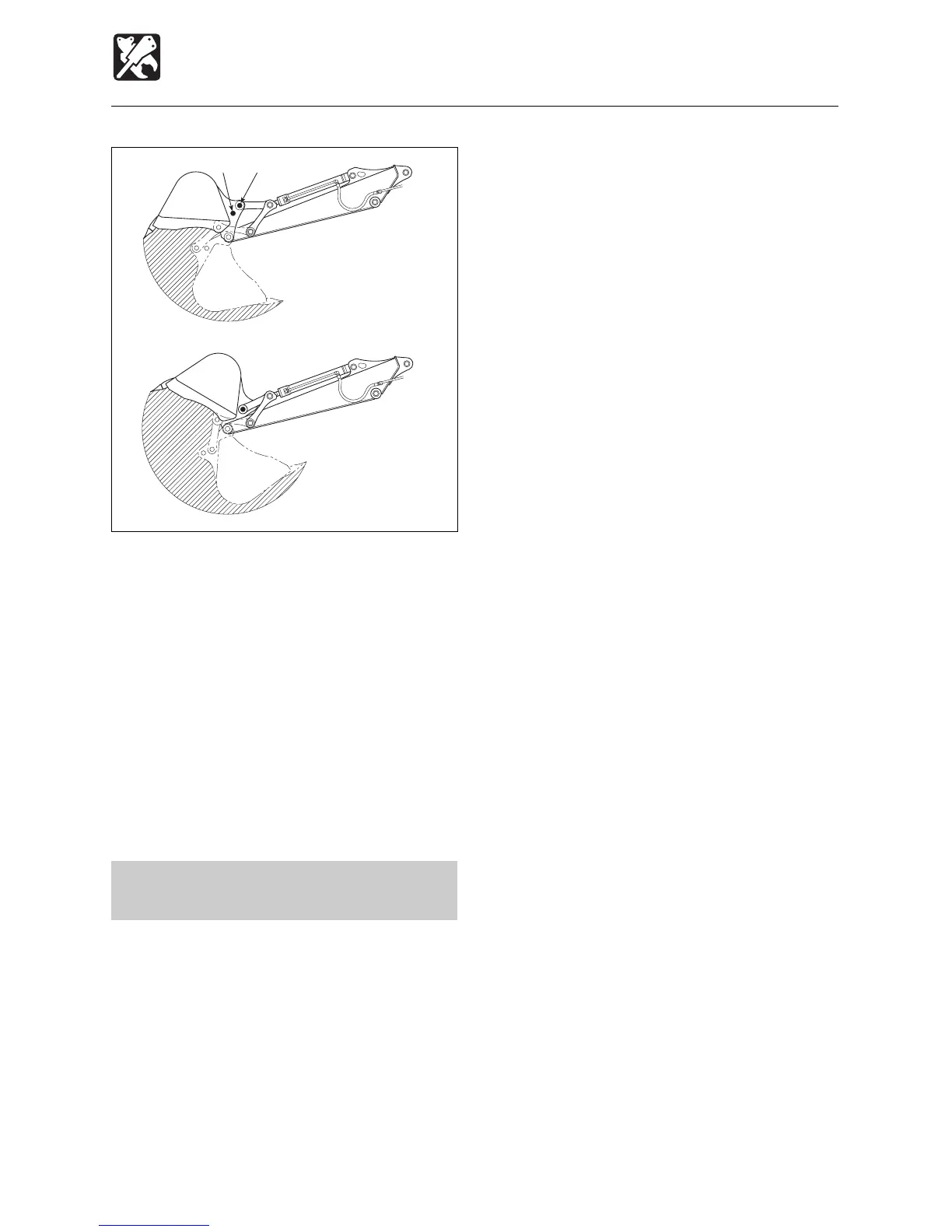

OL1L170
A
B
OL1L180
