50

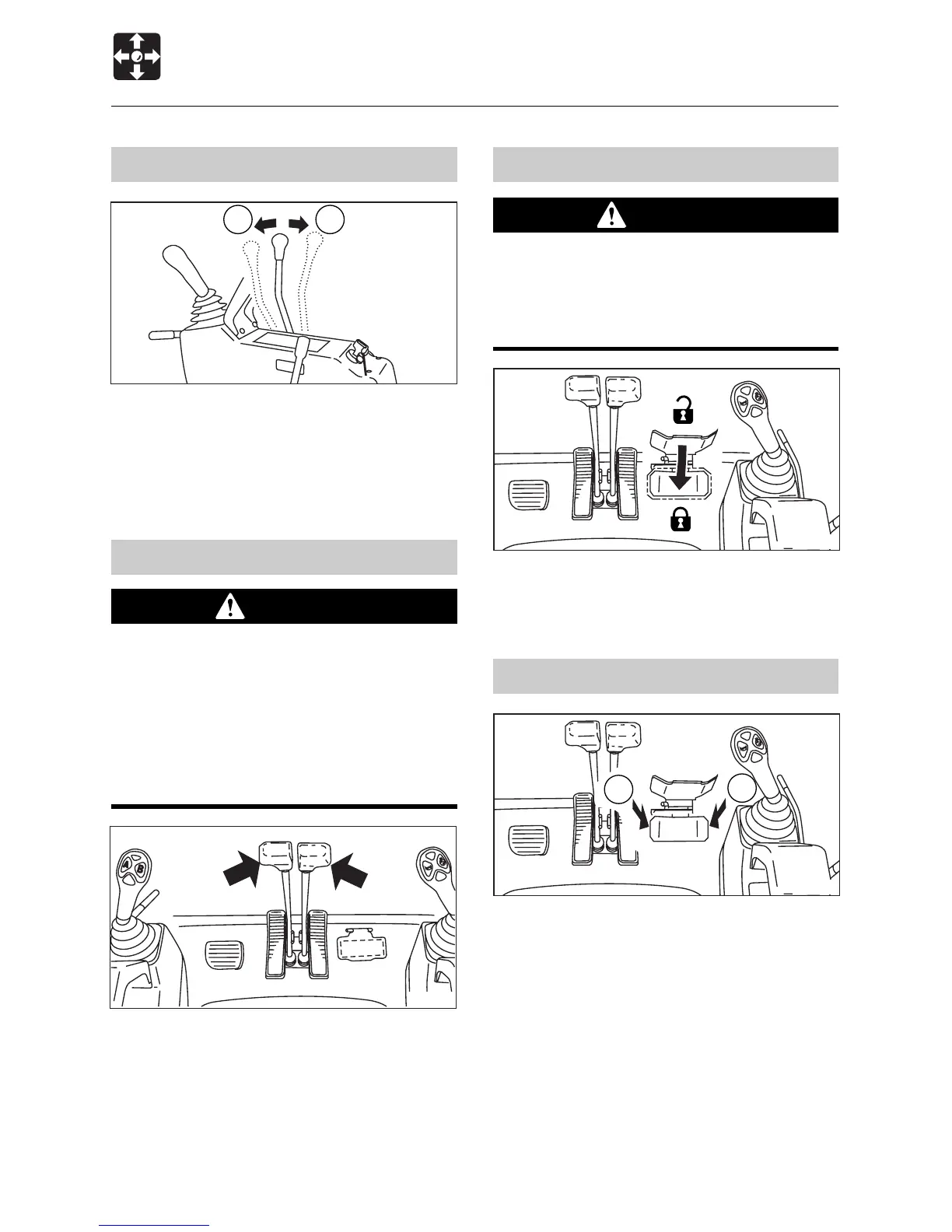

CONTROLS
Levers and Pedals
Pedal Lock
WARNING
When not using the pedal, set the pedal
lock to the locked position. Stepping on
a pedal accidentally when it is not locked
may lead to unexpected accidents.
This device is for locking the swing pedal.
Set the pedal lock over the pedal to lock it.
Boom Swing Pedal
Use this pedal to operate the boom swing.
(A) .... Boom swing right
(B) .... Boom swing left
Refer to page 72 “Operating the Boom
Swing”.
Blade Lever
Use this lever to operate the dozer blade.
(A) .... Blade up
(B) .... Blade down
Refer to page 72 “Operating the Dozer
Blade”.
Travel Levers
WARNING
Before operating the travel levers, check
to make sure that the dozer blade is to
the front of the operator’s seat. BE
AWARE that when the dozer blade is to
the rear of the operator’s seat, the travel
levers operate in the opposite direction
to when the dozer blade is in the front.
Use these to move forward and backward
and to change directions.
Refer to page 68 “Operating the Travel
Levers” .
C4B023
B A
G4B018
G4B019
G4B020
B
A
To Next Page
