222
OPTIONS
Travel Alarm
Factory option
An alarm is sounded when the machine
travels and stops when traveling is stopped.
If the alarm does not sound when the
machine travels, the fuse may be blown.
Inspect the fuse.
WARNING
If the fuse which has just been replaced
should blow again, there is a problem in
the electrical system. This could cause
fires. Contact a Takeuchi dealer.
1. Park the machine in a safe place.
2. Set the starter switch to “OFF”.
3. Loosen the screws, then remove the cover
(1).
4. Inspect for blown fuse.
5. If a fuse is blown, replace it with a spare
fuse of the same capacity.

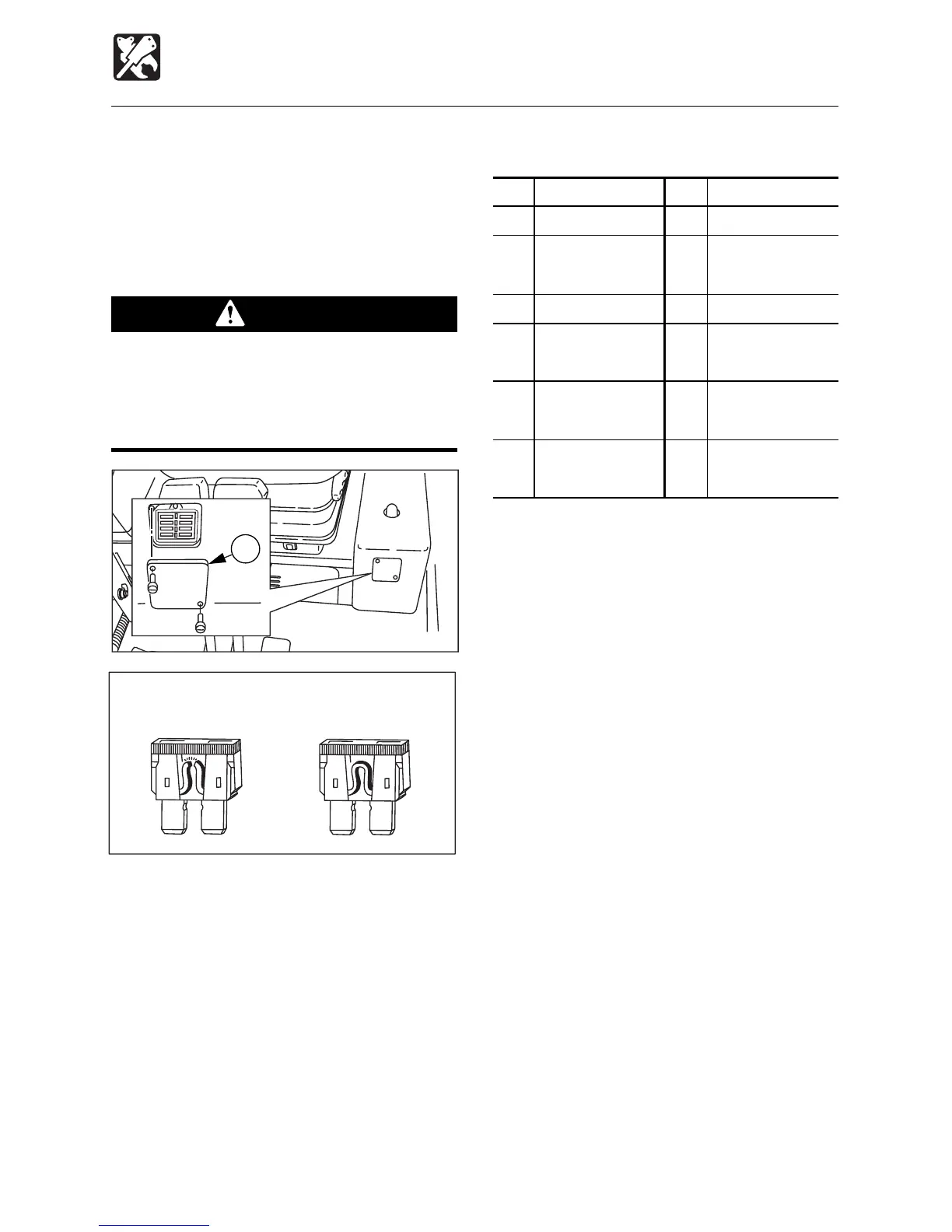

Fuse Layout and Circuits Protected
G4B004
1
E4J007
NormalBlown
Capacity
Protected circuit
20A Horn
30A Air Conditioner
(OPT)
10A
Second travel speed
10A Instrument panel,
Feed pump
15A Radio,
Heater
20A Cigarette lighter,
Wiper
15A Solenoid A, B
20A Lights
20A Lever lock
15A
External power socket
Travel alarm
30A Stop solenoid
Capacity
Protected circuit
To Next Page
