Bucket
Installation

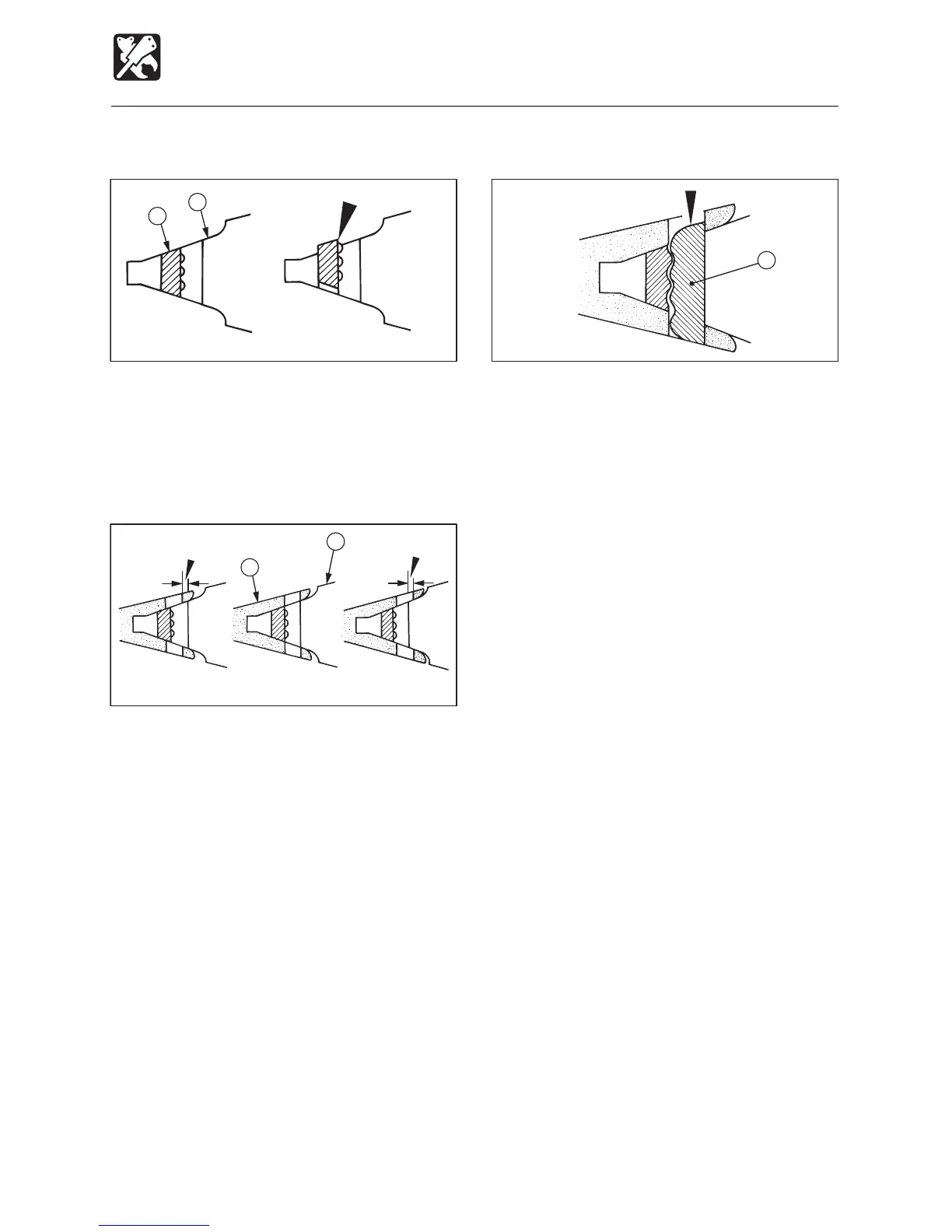

1. Push rubber pin lock (3) into welding
adaptor (4).
Do not let the rubber pin lock stick out past
the welding adapter surface.
2. Install point (2) onto welding adaptor (4).
•Insert the point so that the surface
behind the point’s pin hole is flush or
deeper than the surface behind the
welding adapter’s pin hole.
3. Drive in locking pin (1).
After driving in the locking pin, use a pin with
the same surface as the point surface. Do
not use worn locking pins.
Side cutter
Refer to page 127 “When Required”.
E4G045
3
4
E4G047
1
Improper Proper Proper
E4G046
4
2
