69
OPERATION
Machine Operation
Neutral Neutral
Neutral
Neutral
E4D016
E4D018
E4D017

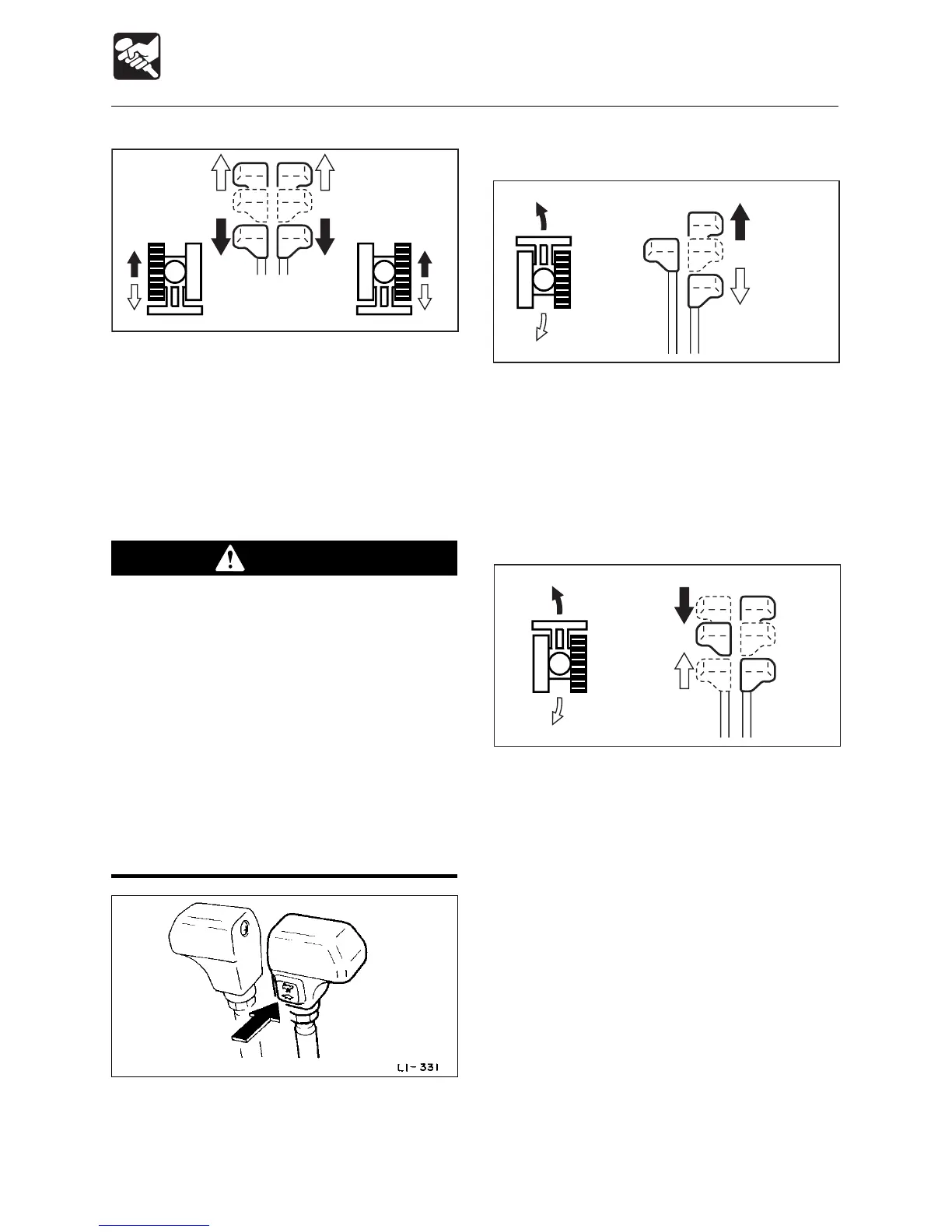

When the dozer blade is behind the
operator’s seat:
aTo move forward:
Tilt the levers backward.
eTo move backward:
Tilt the levers forward.
Traveling in 2nd (High) Speed
WARNING
< TB125: Serial No. 12514526 ~ >
< TB135: Serial No. 13516745 ~ >
< TB145: Serial No. 14515346 ~ >
When a load greater than a set value is
applied during 2nd speed (high speed)
travel, the speed will automatically slow
down by switching to 1st speed (low
speed). Thereafter, when the load
becomes lighter, the speed will increase
by returning to 2nd speed (high speed).
Exercise due caution since the travel
speed changes automatically.
Press the travel speed switch on the right travel
lever to switch to 2nd (high) speed, and press
it again to return to 1st speed (low speed).
Pivot Turn
Turning to the left when stopped:
aTo turn forward to the left:
Tilt the right lever forward.
eTo turn backward to the left:
Tilt the right lever backward.
To turn to the right, operate the left lever in
the same way.
Turning to the left while traveling:
aTo turn left while traveling forward:
Set the left lever to neutral.
eTo turn left while traveling backward:
Set the left lever to neutral.
To turn to the right while traveling, operate
the right lever in the same way.
