86
OPERA
TION

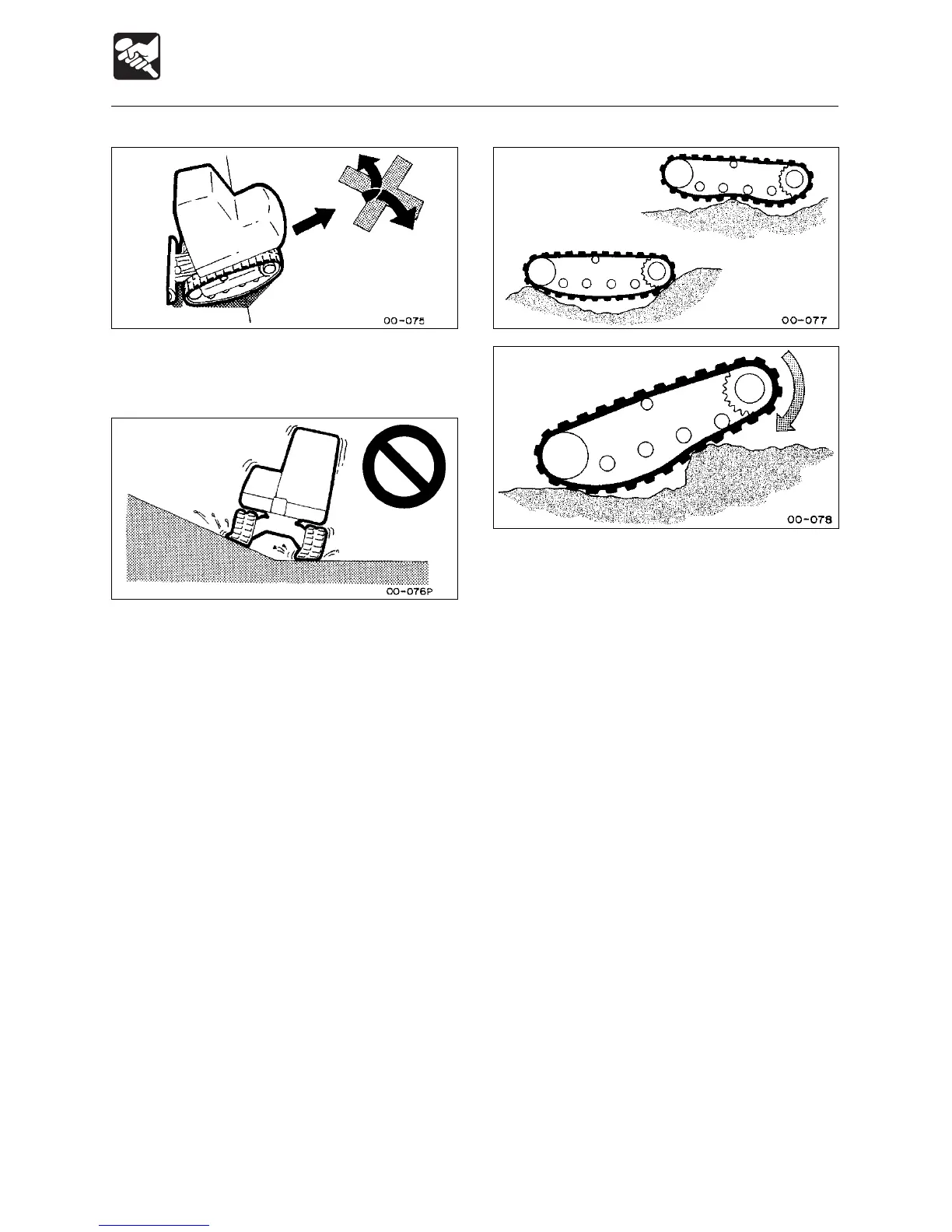

Handling Rubber Crawlers
¡
Do not change directions when the crawler
belts are slack as shown in the diagram.
¡
When climbing in reverse, do not change
course at the point where the slope starts.
¡
A
void traveling with one crawler on a slope
or projecting object and the other crawler
on a flat surface (with the machine at a tilt
of 10
°
or greater). T
ravel with both
crawlers on flat surfaces.
