4–19
Chapter 4: Removing and Replacing Components
Platen
Curved Spring Washer
Platen Gap Adjust
Plate, 2 places
Platen Spring
Lever
#6 Screws,
2 places

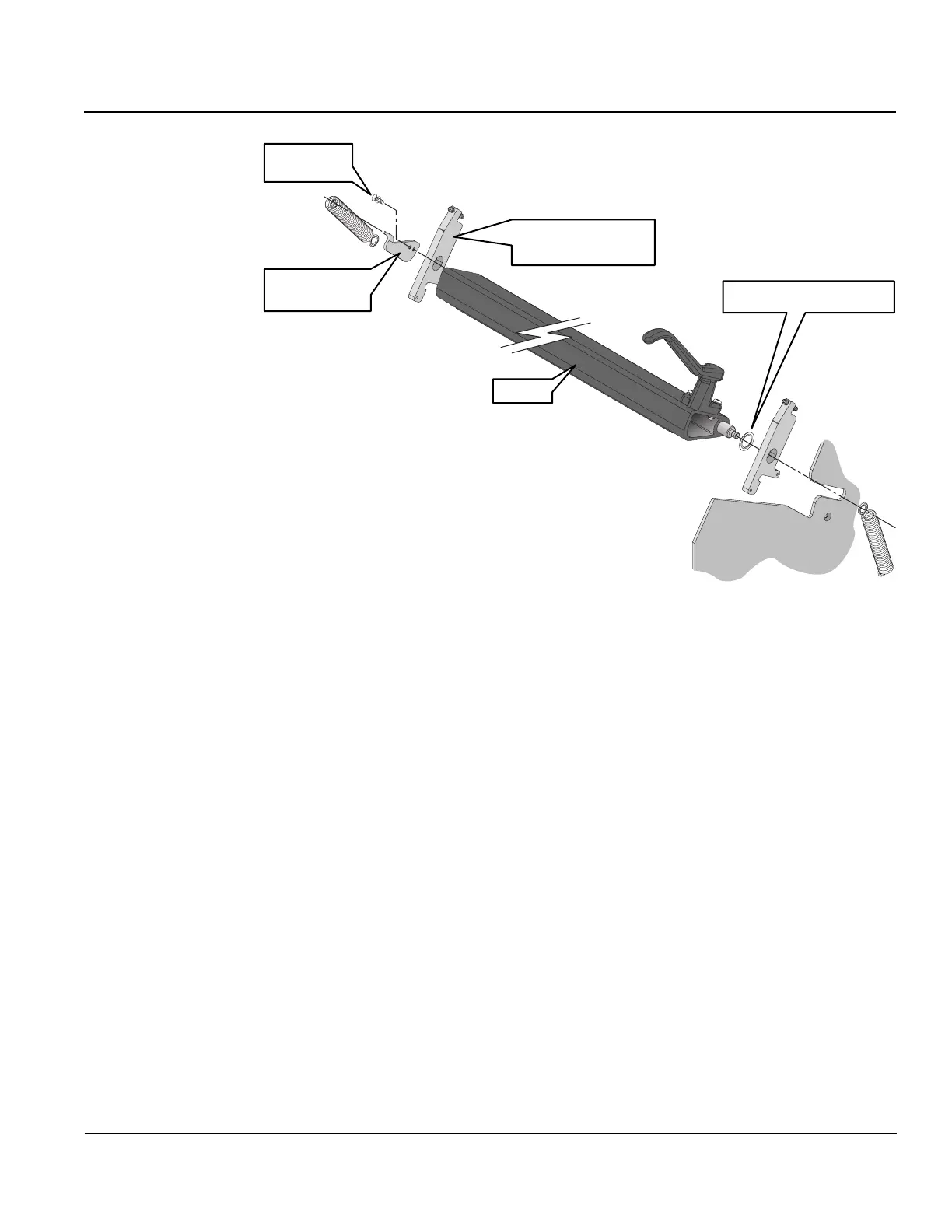

Figure 23. Transferring components from old to new platen.
Step 12. Remove the spring lever from the left side. It is attached with two #6 Phillips
screws.
Step 13. Reattach the spring lever to the new platen. Add Lubriplate grease (see
Appendix A):
• Between the left Platen Gap Adjustment plate and the platen,
• Between the right curved-spring washer and the right Platen Gap Adjustment
plate, and
• Between the curved-spring washer and the platen.
