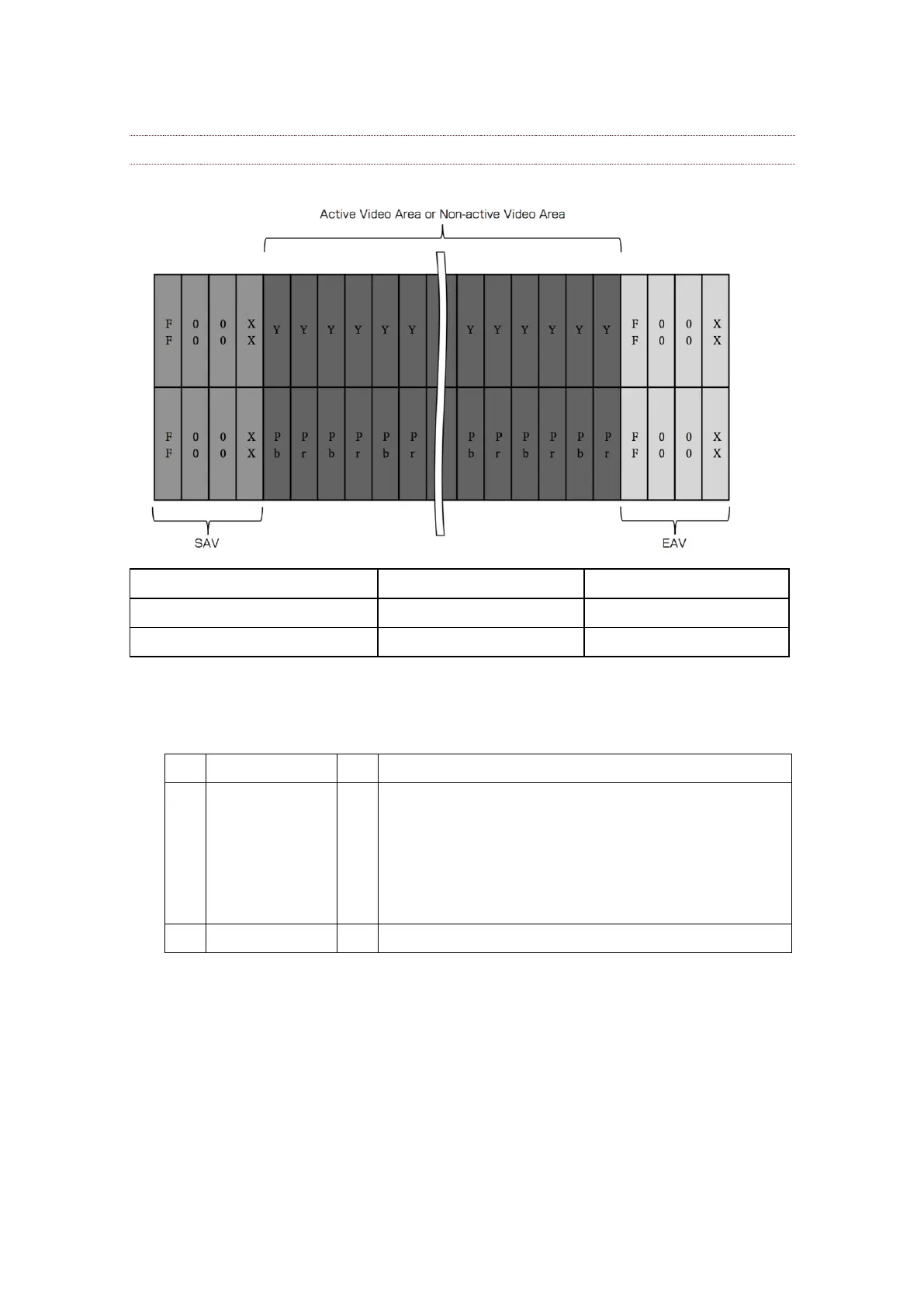

5.3.6 Synchronization Code
Synchronized codes
XX for SAV
XX for EAV
Active Video Area
80h
9Dh
Non-active Video Area
ABh
B6h
Progressive system (Comparable to SMPTE 274M, 296M)
EAV
SAV
④
Blanking
②
Non-active Video Area
③
Blanking
①
Active Video Area
④
Blanking
②
Non-active Video Area
① SAV for Active Video Area
② SAV for Non-active Video Area
③ EAV for Active Video Area
④ EAV for Non-active Video Area
