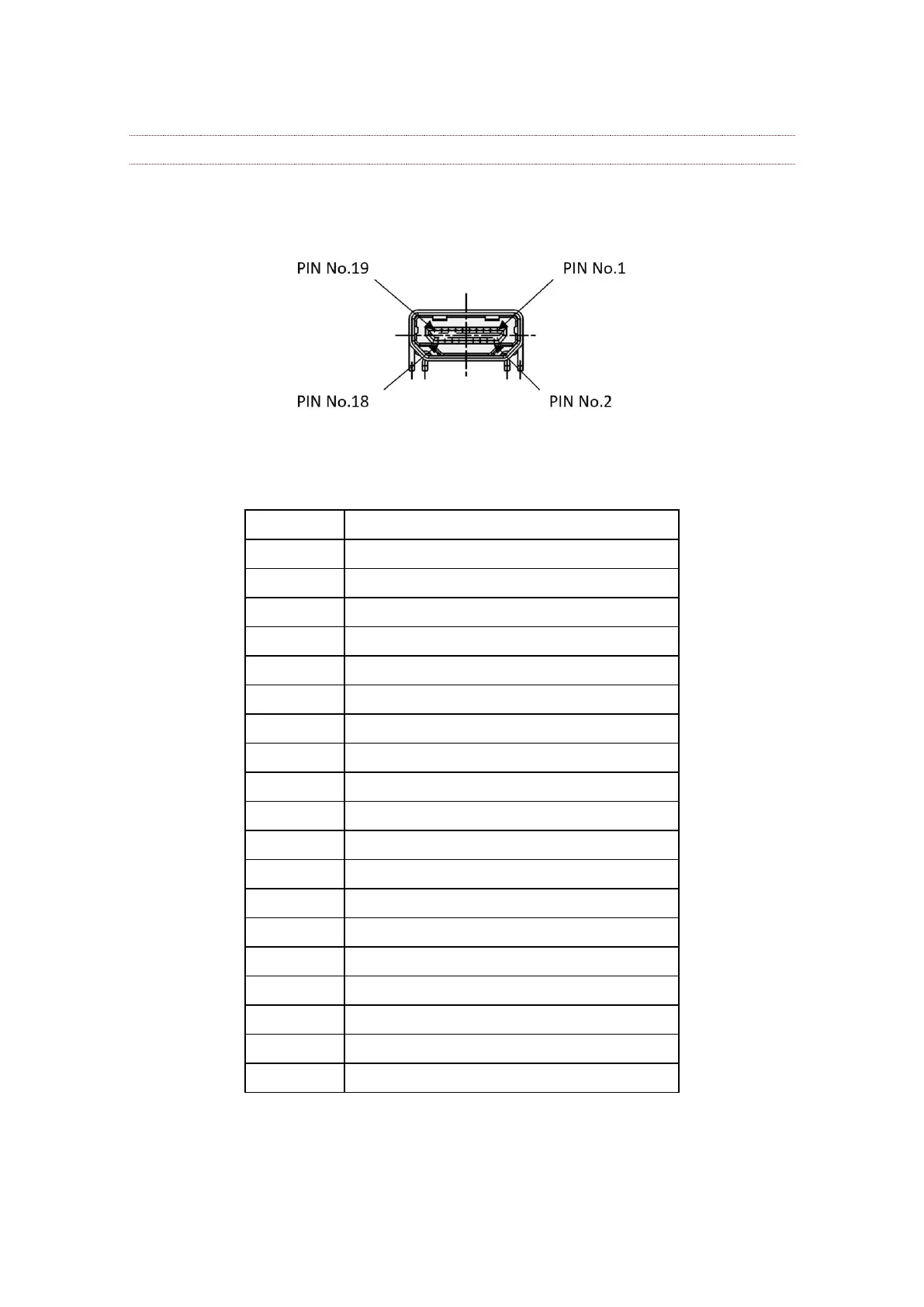

5.5.2 HDMI Pin Assignment
HDMI Connector is as follows.
HDMI Type D Receptacle PIN assignment
No.
Pin Name
1
Hot Plug Detect
2
Utility (unconnected)
3
TMDS Data2+
4
TMDS Data2 Shield
5
TMDS Data2-
6
TMDS Data1+
7
TMDS Data1 Shield
8
TMDS Data1-
9
TMDS Data0+
10
TMDS Data0 Shield
11
TMDS Data0-
12
TMDS Clock+
13
TMDS Clock Shield
14
TMDS Clock-
15
CEC (unconnected)
16
DDC/CEC Ground
17
SCL
18
SDA
19
+5V Power
