3.33 Keystone Correction

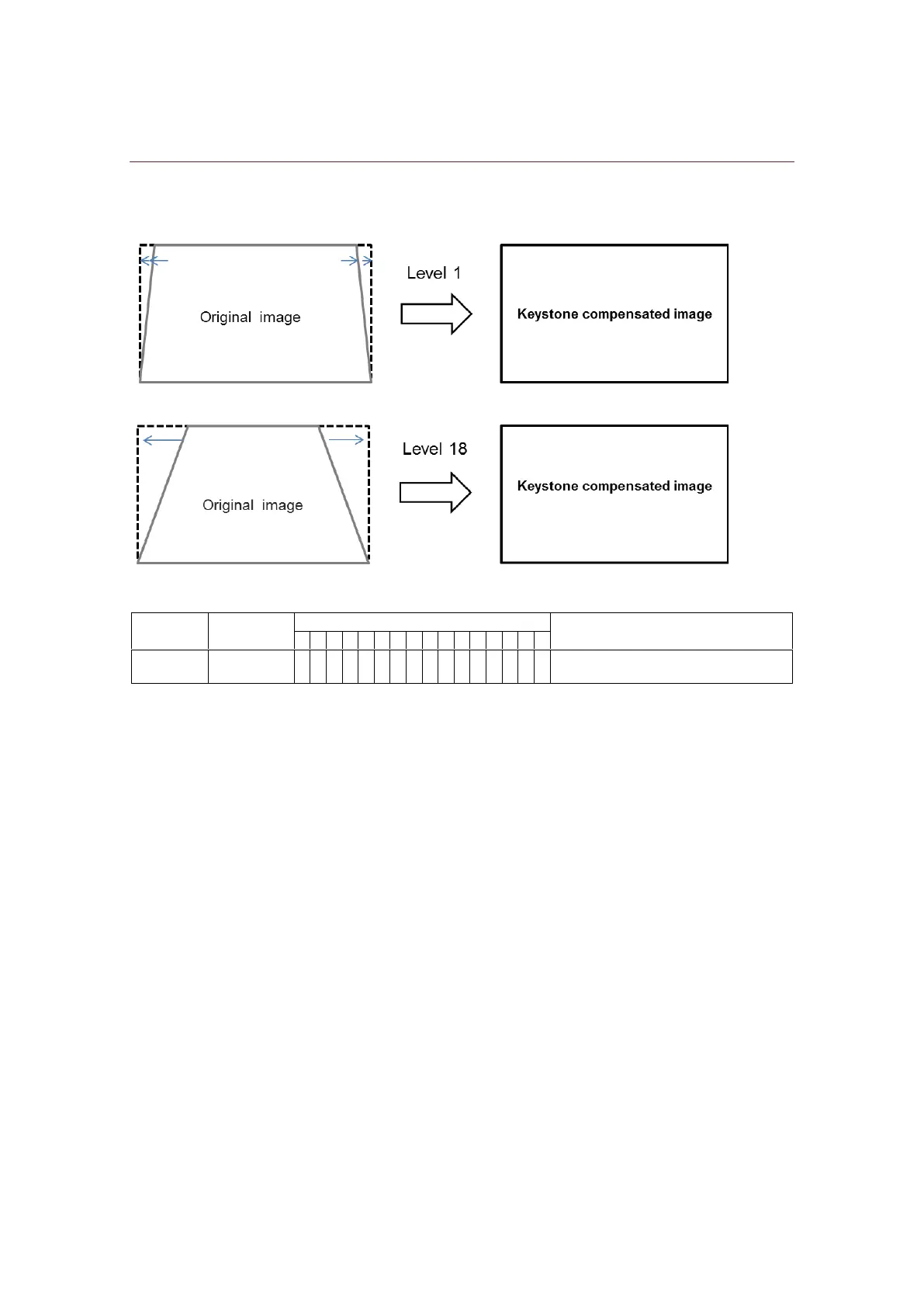

The upper edge of the keystone image can be expanded by Keystone Correction.
Compensation Level: Step1 (lowest) - Step18 (Highest)
Command Set
Command
Command Packet
Comments
H
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
CAM_RegisterValue
-
8x
01
04
24
60
0p
0q
FF
addr = 60h: Keystone correction
pq: 00h=Off, 01h=correction low, ..., 12h=correction high
