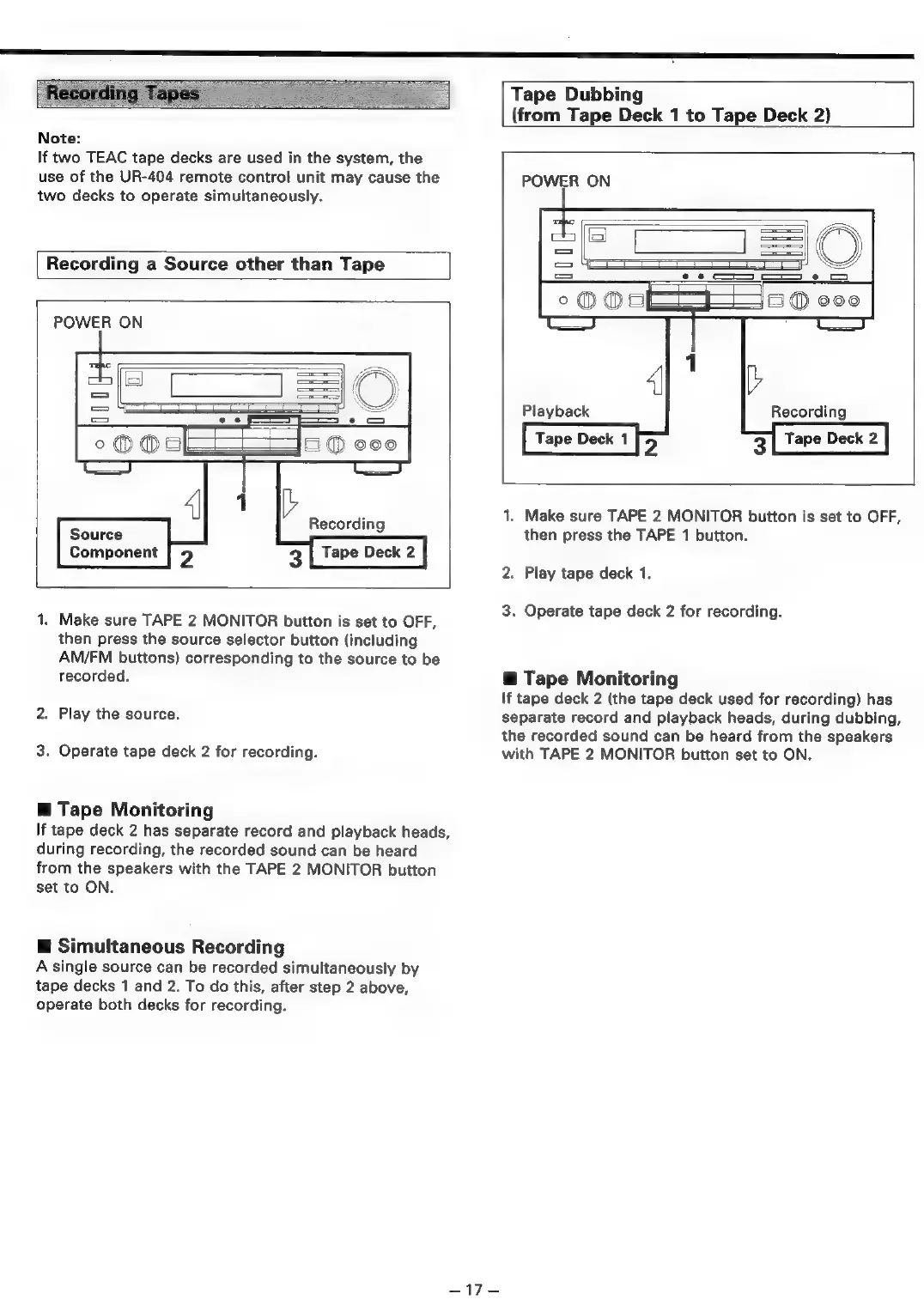

Teac AG-V3020 - Recording and Dubbing; Recording a Source other than Tape; Tape Dubbing; Tape Monitoring

Note:
If two TEAC tape decks are used in the system, the
use of the UR-404 remote control unit may cause the
two decks to operate simultaneously.
Tape Dubbing
(from Tape Deck 1 to Tape Deck 2)
POWER ON
= E210
= __ ee CS a DD
B® ooo
o@M@O@Osa
4 1
Tape Deck 1 2
/
3 Tape Deck 2
Playback Recording
Recording a Source other than Tape
POWER ON
=| @
= ==] \
—o i NS
= on 1
o@Osa B® ooo
4] 1
Source Recording
Component 2 3 Tape Deck 2
1. Make sure TAPE 2 MONITOR button is set to OFF,
then press the source selector button (including
AM/FM buttons) corresponding to the source to be
recorded.
2. Play the source.
3. Operate tape deck 2 for recording.
@ Tape Monitoring
If tape deck 2 has separate record and playback heads,
during recording, the recorded sound can be heard
from the speakers with the TAPE 2 MONITOR button
set to ON.
@ Simultaneous Recording
A single source can be recorded simultaneously by
tape decks 1 and 2. To do this, after step 2 above,
operate both decks for recording.
= Te
. Make sure TAPE 2 MONITOR button is set to OFF,
then press the TAPE 1 button.
. Play tape deck 1.
. Operate tape deck 2 for recording.
@ Tape Monitoring
If tape deck 2 (the tape deck used for recording) has
separate record and playback heads, during dubbing,
the recorded sound can be heard from the speakers
with TAPE 2 MONITOR button set to ON.
