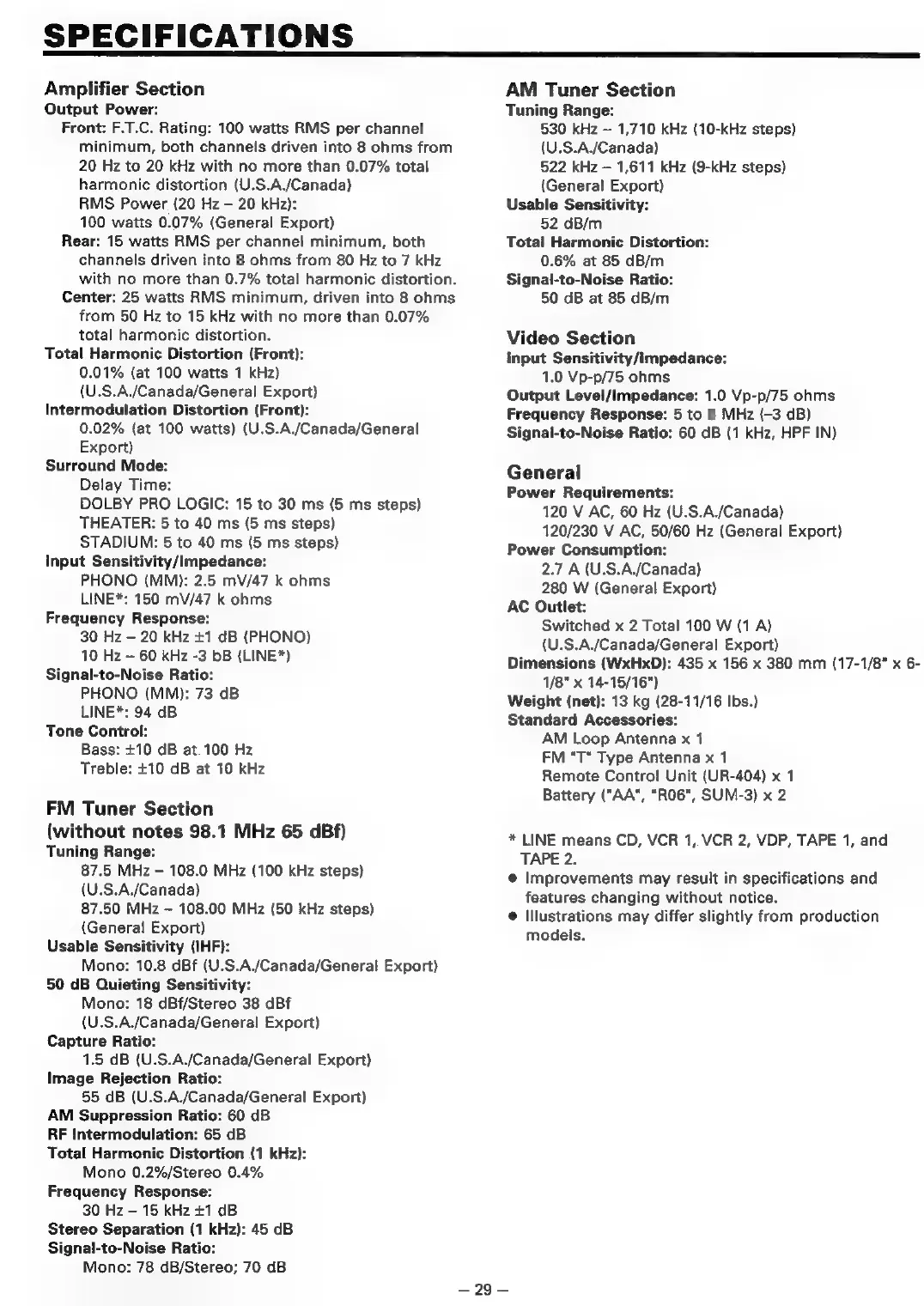

SPECIFICATIONS
Amplifier Section
Output Power:
Front: F.T.C. Rating: 100 watts RMS per channel
minimum, both channels driven into 8 ohms from
20 Hz to 20 kHz with no more than 0.07% total
harmonic distortion (U.S.A./Canada)
RMS Power (20 Hz — 20 kHz):
100 watts 0.07% (General Export)
Rear: 15 watts RMS per channel minimum, both
channels driven into 8 ohms from 80 Hz to 7 kHz
with no more than 0.7% total harmonic distortion.
Center: 25 watts RMS minimum, driven into 8 ohms
from 50 Hz to 15 kHz with no more than 0.07%
total harmonic distortion.
Total Harmonic Distortion (Front):
0.01% (at 100 watts 1 kHz)
(U.S.A./Canada/General Export)
Intermodulation Distortion (Front):
0.02% (at 100 watts) (U.S.A./Canada/General
Export)
Surround Mode:
Delay Time:
DOLBY PRO LOGIC: 15 to 30 ms (5 ms steps)
THEATER: 5 to 40 ms (5 ms steps)
STADIUM: 5 to 40 ms (5 ms steps)
Input Sensitivity/Impedance:
PHONO (MM): 2.5 mV/47 k ohms
LINE*: 150 mV/47 k ohms
Frequency Response:
30 Hz — 20 kHz +1 dB (PHONO)
10 Hz - 60 kHz -3 bB (LINE*)
Signal-to-Noise Ratio:
PHONO (MM): 73 dB
LINE*: 94 dB
Tone Control:
Bass: +10 dB at.100 Hz
Treble: +10 dB at 10 kHz
FM Tuner Section
(without notes 98.1 MHz 65 dBf)
Tuning Range:
87.5 MHz - 108.0 MHz (100 kHz steps)
(U.S.A./Canada)
87.50 MHz — 108.00 MHz (50 kHz steps)
(General Export)
Usable Sensitivity (IHF):
Mono: 10.8 dBf (U.S.A./Canada/General Export)
50 dB Quieting Sensitivity:
Mono: 18 dBf/Stereo 38 dBf
(U.S.A./Canada/General Export)
Capture Ratio:
1.5 dB (U.S.A./Canada/General Export)
Image Rejection Ratio:
55 dB (U.S.A./Canada/General Export)
AM Suppression Ratio: 60 dB
RF Intermodulation: 65 dB
Total Harmonic Distortion (1 kHz):
Mono 0.2%/Stereo 0.4%
Frequency Response:
30 Hz - 15 kHz +1 dB
Stereo Separation (1 kHz): 45 dB
Signal-to-Noise Ratio:
Mono: 78 dB/Stereo; 70 dB
—29-—
AM Tuner Section
Tuning Range:
530 kHz — 1,710 kHz (10-kHz steps)
(U.S.A./Canada)
522 kHz — 1,611 kHz (9-kHz steps)
(General Export)
Usable Sensitivity:
52 dB/m
Total Harmonic Distortion:
0.6% at 85 dB/m
Signal-to-Noise Ratio:
50 dB at 85 dB/m
Video Section
Input Sensitivity/Impedance:
1.0 Vp-p/75 ohms
Output Level/Impedance: 1.0 Vp-p/75 ohms
Frequency Response: 5 to 6 MHz (-3 dB)
Signal-to-Noise Ratio: 60 dB (1 kHz, HPF IN)
General
Power Requirements:
120 V AC, 60 Hz (U.S.A./Canada)
120/230 V AC, 50/60 Hz (General Export)
Power Consumption:
2.7 A (U.S.A./Canada)
280 W (General Export)
AC Outlet:
Switched x 2 Total 100 W (1 A)
(U.S.A./Canada/General Export)
Dimensions (WxHxD): 435 x 156 x 380 mm (17-1/8" x 6-
1/8" x 14-15/16")
Weight (net): 13 kg (28-11/16 Ibs.)
Standard Accessories:
AM Loop Antenna x 1
FM “T" Type Antenna x 1
Remote Control Unit (UR-404) x 1
Battery ("AA", “RO6", SUM-3) x 2
* LINE means CD, VCR 1,.VCR 2, VDP, TAPE 1, and
TAPE 2.
@ Improvements may result in specifications and
features changing without notice.
@ Illustrations may differ slightly from production
models.
