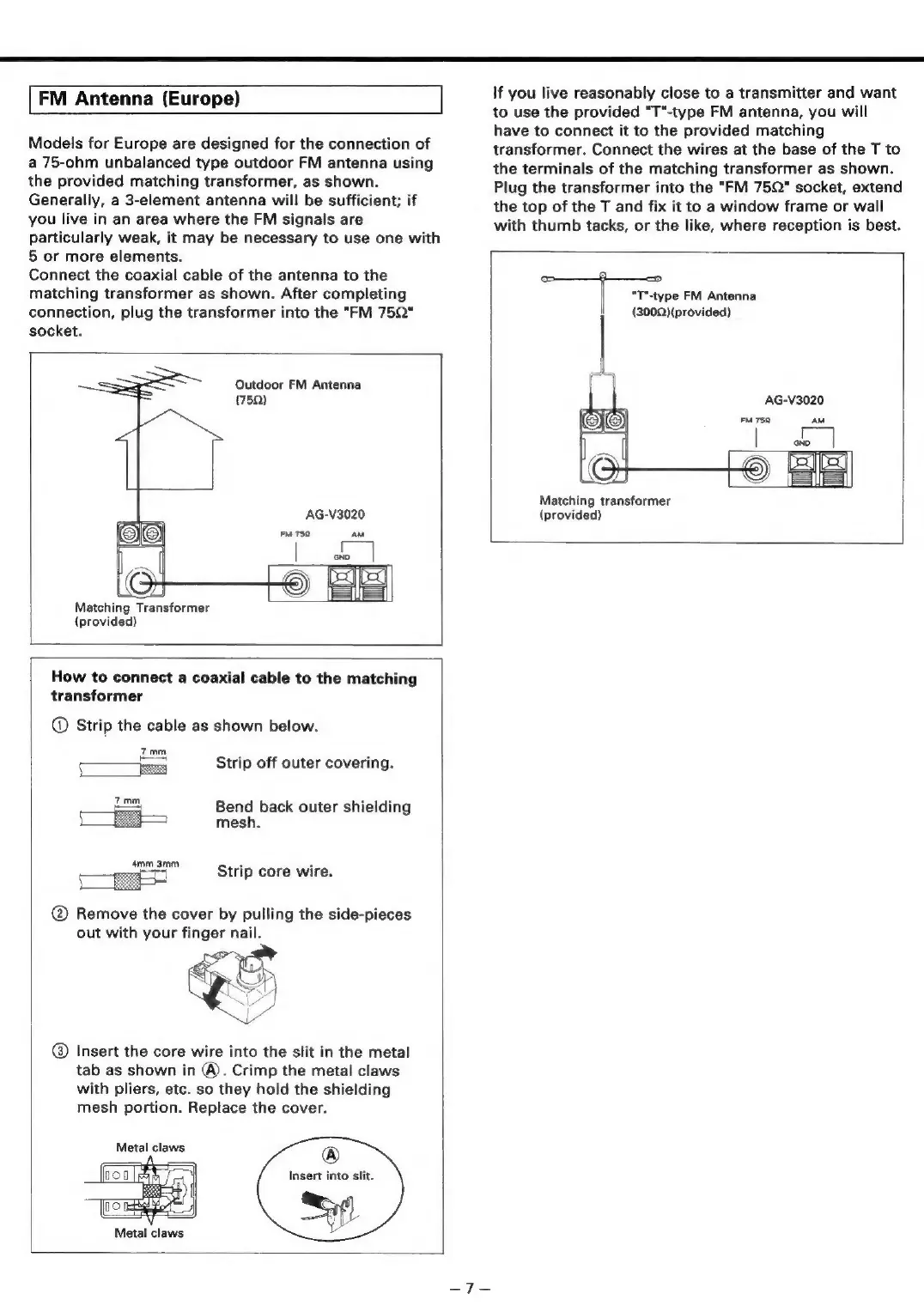

FM Antenna (Europe)
Models for Europe are designed for the connection of
a 75-ohm unbalanced type outdoor FM antenna using
the provided matching transformer, as shown.
Generally, a 3-element antenna will be sufficient; if
you live in an area where the FM signals are
Particularly weak, it may be necessary to use one with
5 or more elements.
Connect the coaxial cable of the antenna to the
matching transformer as shown. After completing
connection, plug the transformer into the "FM 75Q"
socket.
Outdoor FM Antenna
(75Q)
AG-V3020
FM 752
Matching Transformer
(provided)
How to connect a coaxial cable to the matching
transformer
© Strip the cable as shown below.
Strip off outer covering.
Bend back outer shielding
mesh.
4mm 3mm
a Strip core wire.
@ Remove the cover by pulling the side-pieces
out with your finger nail.
® Insert the core wire into the slit in the metal
tab as shown in @). Crimp the metal claws
with pliers, etc. so they hold the shielding
mesh portion. Replace the cover.
Metal claws
®
Insert into slit.
Metal claws
If you live reasonably close to a transmitter and want
to use the provided "T*-type FM antenna, you will
have to connect it to the provided matching
transformer. Connect the wires at the base of the T to
the terminals of the matching transformer as shown.
Plug the transformer into the "FM 75" socket, extend
the top of the T and fix it to a window frame or wall
with thumb tacks, or the like, where reception is best.
'-type FM Antenna
| {3002)(provided)
AG-V3020
FM 752.
(
Matching transformer
(provided)
