Teac AG-V3020 - Remote Control with Non-Sensor Decks; Using a Cassette Deck without REMOTE SENSOR Window

ce
Q@O@
O@©®©
voso | oo
on
base Remote Control Cables (Optional)
CD Player with
Remote Sensor
Cassette Deck with Cassette Deck with
Non-logic Control Full-logic Control
(No Remote Sensor) (No Remote Sensor)
CD Player's
Remote Control
Unit
UR-404
Remote Control Unit

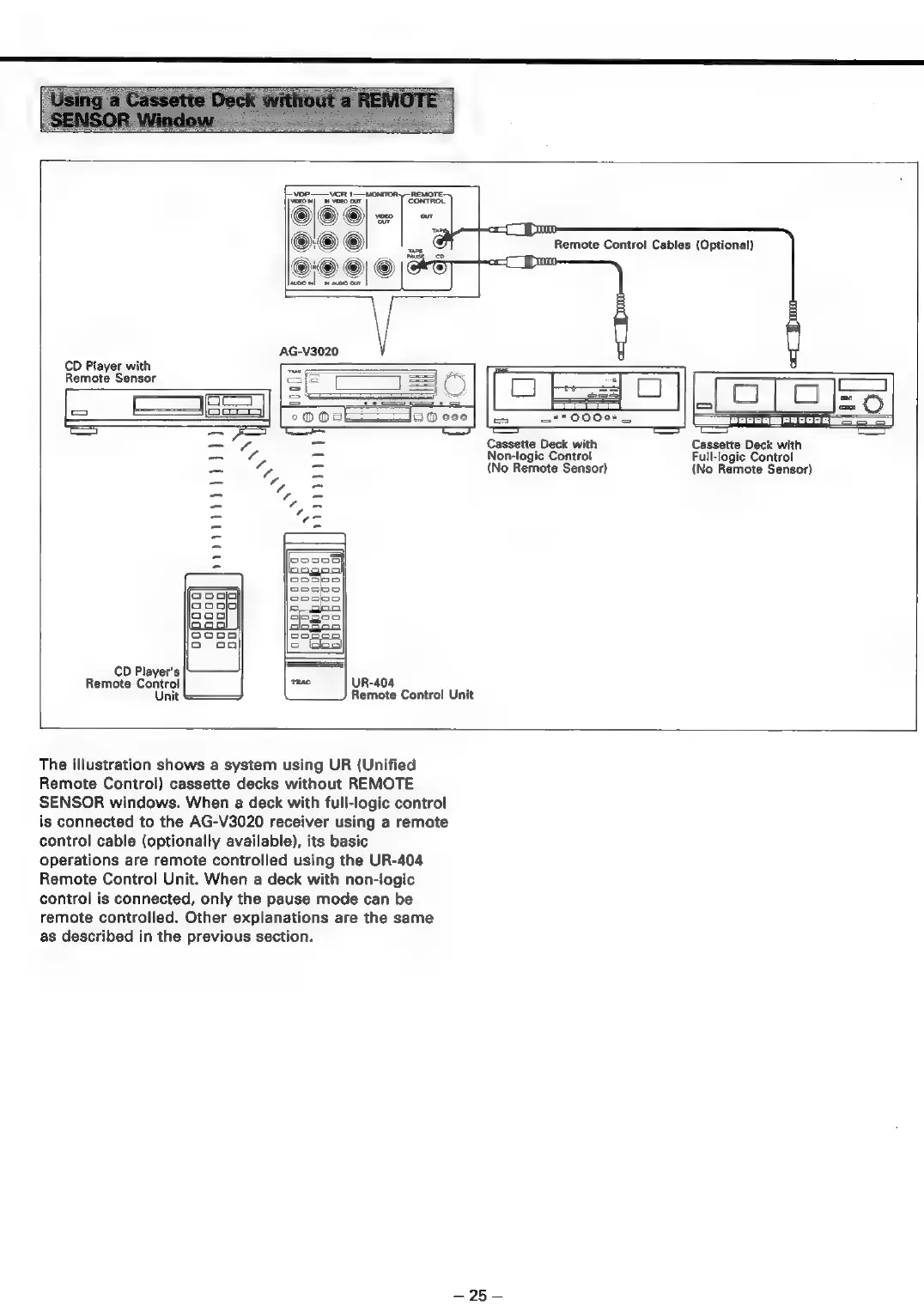

The illustration shows a system using UR (Unified
Remote Control) cassette decks without REMOTE
SENSOR windows. When a deck with full-logic control
is connected to the AG-V3020 receiver using a remote
control cable (optionally available), its basic
operations are remote controlled using the UR-404
Remote Control Unit. When a deck with non-logic
control is connected, only the pause mode can be
remote controlled. Other explanations are the same
as described in the previous section.
