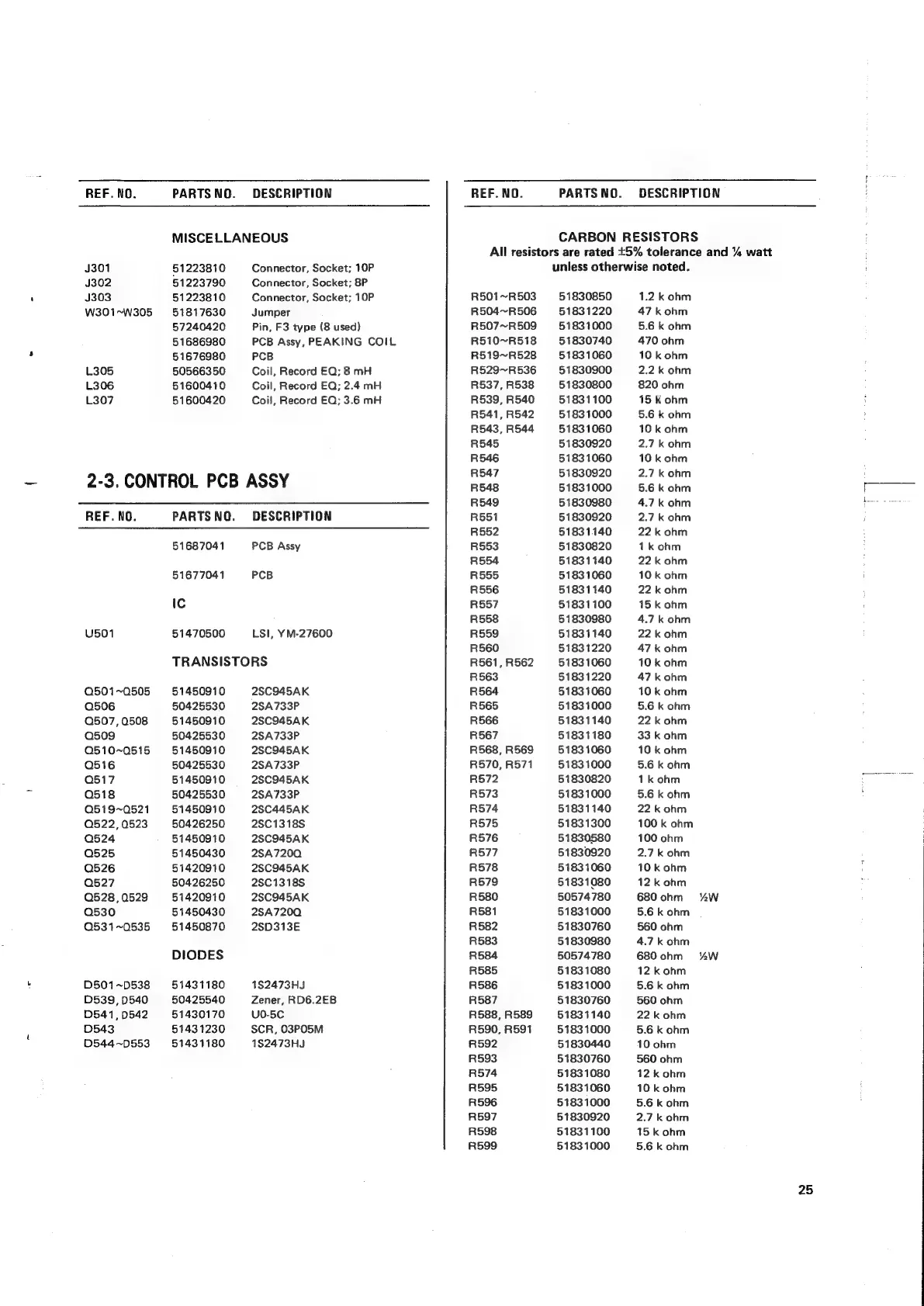

REF. NO. PARTS NO. DESCRIPTION REF. NO. PARTS NO. DESCRIPTION
CARBON RESISTORS
All resistors are rated +5% tolerance and % watt
MISCELLANEOUS
J301 51223810 Connector, Socket; 10P unless otherwise noted.
J302 51223790 Connector, Socket; 8P
J303 51223810 Connector, Socket; 10P R501~R503 51830850 1.2 k ohm
W301~W305 51817630 Jumper R504~R506 51831220 47 k ohm
57240420 Pin, F3 type (8 used) R507~R509 51831000 5.6 k ohm
51686980 PCB Assy, PEAKING COIL R510~R518 51830740 470 ohm
51676980 PCB R519~R528 51831060 10 k ohm
L305 50566350 Coil, Record EQ; 8 mH R529~R536 51830900 2.2 k ohm
L306 51600410 Coil, Record EQ; 2.4 mH R537, R538 51830800 820 ohm
L307 51600420 Coil, Record EQ; 3.6 mH R539,R540 51831100 15 k ohm
R541, R542 51831000 5.6 k ohm
R543, R544 51831060 10k ohm
R545 51830920 2.7 k ohm
R546 51831060 10 kohm
R547 51830920 2.7 k ohm
2-3. CONTROL PCB ASSY R548 51831000 5.6 k ohm
R549 51830980 4.7 k ohm
REF. NO. PARTS NQ. DESCRIPTION R551 51830920 2.7 k ohm
R552 51831140 22 k ohm
51687041 PCB Assy R553 51830820 1k ohm
R554 51831140 22 k ohm
51677041 PCB R555 51831060 10 k ohm
R556 51831140 22 k ohm
Ic R557 51831100 15 k ohm
R558 51830980 4.7 k ohm
U501 51470500 LSI, YM-27600 R559 51831140 22 k ohm
R560 51831220 47 k ohm
TRANSISTORS R561, R562 51831060 10 k ohm
R563 51831220 47k ohm
Q501~0505 51450910 2SC945AK R564 51831060 10 k ohm
Q506 50425530 2SA733P R565 51831000 5.6 k ohm
Q507,0508 51450910 2SC945AK R566 51831140 22 k ohm
Q509 50425530 2SA733P R567 51831180 33 k ohm
Q510~0515 51450910 2SC945AK R568, R569 51831060 10 k ohm
Q516 50425530 2SA733P R570, R571 51831000 5.6 k ohm
Q517 51450910 2SC945AK R572 51830820 1k ohm
Q518 50425530 2SA733P R573 51831000 5.6 k ohm
Q519~0521 51450910 2SC445AK R574 51831140 22 k ohm
Q522, 0523 50426250 2SC1318S R575 51831300 100 k ohm
Q524 51450910 2SC945AK R576 51830580 100 ohm
Q525 51450430 2SA7200. R577 51830920 2.7 k ohm
Q526 51420910 2SC945AK R578 51831060 10 k ohm
Q527 50426250 2SC1318S R579 51831080 12 k ohm
Q528,0529 51420910 2SC945AK R580 50574780 680 ohm %W
Q530 51450430 2SA7200 R581 51831000 5.6 k ohm
Q531~0535 51450870 2SD313E R582 51830760 560 ohm
R583 51830980 4.7 k ohm
DIODES R584 50574780 680 ohm %W
R585 51831080 12 k ohm
D501~D538 51431180 1S2473HJ R586 51831000 5.6 k ohm
D539,D540 50425540 Zener, RD6.2EB R587 51830760 560 ohm
D541,D542 51430170 U0-5C R588, R589 51831140 22 k ohm
D543 51431230 SCR, 03P05M R590, R591 51831000 5.6 k ohm
0D544~D553 51431180 1S2473HJ R592 51830440 10 ohm
R593 51830760 560 ohm
R574 51831080 12 k ohm
R595 51831060 10 k ohm
R596 51831000 5.6 k ohm
R597 51830920 2.7 k ohm
R598 51831100 15k ohm
R599 51831000 5.6 k ohm
25
