Teac LCDV1950SD - Connecting External AV Signal Source; Connecting External AV Signal Source (Ypbpr)

- 13 -
System Connections (Continued)

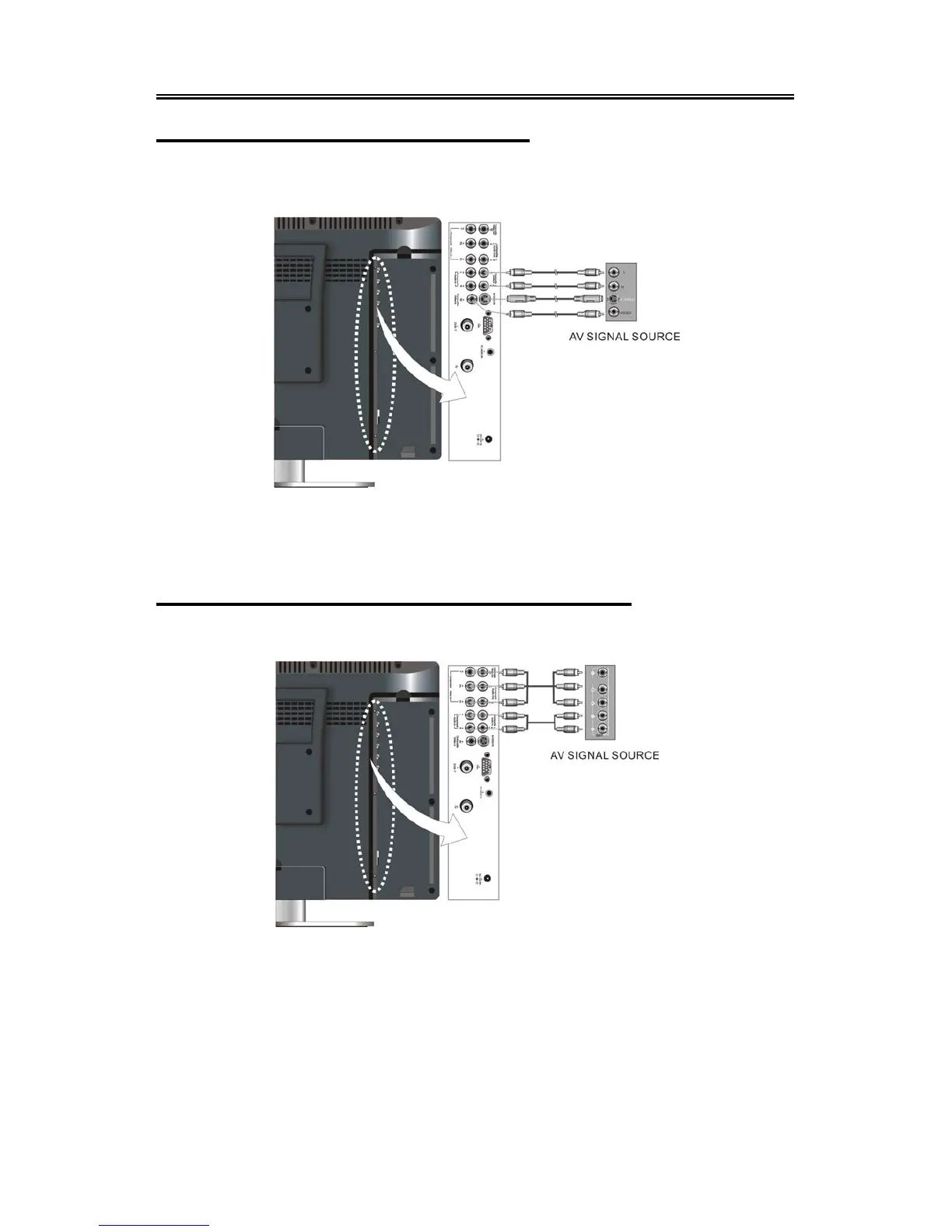

Connecting External AV Signal Source
Use the AV cables to connect external AV signal source to AV input jacks on the jack panel of the
unit. And use the S-VIDEO cable to connect external S-VIDEO signal source to the S-VIDEO input
jack on the rear panel of the unit.
After connection, turn on the unit and the external AV signal source and press the SOURCE button
to shift to Composite or S-VIDEO mode.
Note: The L/R audio input jacks can be used in the both Composite and S-VIDEO modes
Connecting External AV Signal Source（YPbPr）
Use the AV cables to connect external AV signal source to the Y/Pb (Cb) /Pr (Cr) input jacks on the
jack panel of the unit.
After connection, turn on the unit and external AV signal source and press the SOURCE button to
shift to COMPONENT mode.
